Model 型号 |
Z2Q200-20 | Z20200-25 | Z2Q350-40 | Z20500-50 |
|
Using medium 使用介质 |
Air, water, oil, mashgas 空气、水、油、瓦斯 |
|||
|
Action mode 动作方式 |
Direct action type 直动式 |
|||
|
Flow rate caliber 流量孔径 |
22mm | 22mm | 35mm | 50mm |
|
Cv value Cv值 |
12 | 12 | 24 | 48 |
|
Connecting pipe bore 接管口径 |
3/4" | 1" | 1 1/2" | 2" |
|
Use medium viscosity 使用介质粘滞度 |
50 CST以下 | |||
|
Operating pressure range 使用压力范围 |
0~0.7MPa | |||
|
Maximum pressure resistance 最大耐压力 |
1.05MPa | |||
|
Control pressure range 控制压力范围 |
0.3~0.6MPa | |||
|
Working temperature range (°C) 工作温度范围 |
-10~100℃ | |||
|
Body material 本体材质 |
Brass 黄铜 |
|||
|
Oil seal material 油封材质 |
Polytetrafluoroethylene(PTFE) 聚四氟乙烯(PTFE) |
|||
|
Control the connecting pipe bore 控制接管口径 |
2-G1/8" | 2-G1/8" | 2-G1/4" | 2-G1/4" |
|
Using medium 使用介质 |
Neutral fluid medium (gas/water/oil) 中性流体介质(气/水/油) |
High temperature airflow medium (steam, oil) 高温气流介质(蒸汽，油品) |
|
|
Medium and working temperature 介质和工作温度 |
≤80℃ | ≤120℃ | ≤150℃ |
|
Materials of main components inside the valve 阀内主要零件材料 |
Hpb59-1 Nitrile rubber NBR OCr18Mo2Ca 丁腈橡胶NBR OCr18Mo2Ca |
Hpb59-1 Fluororubber VITONOCr18Ma2Ca 氟橡胶VITONOCr18Ma2Ca |
|
|
Nominal diameter 公称通径 (mm) |
Connecting pipe 接管 |
Working pressure(MPa) 工作压力(MPa) |
Kv值 M/H |
Weight 重量 (Kg) |
Switching frequency (times/min) 切换频率 (次/min) |
Order number 订货号 |
||||||
|
Min 最小 |
Max 最大 |
Normally closed type 常闭型 |
Normally open type 常开型 |
|||||||||
|
Gas 气体 |
Liquid 1 液体1 |
Liquid 2 液体2 |
Valve 阀 |
Electromagnetic head 电磁头 |
Valve 阀 |
Electromagnetic head 电磁头 |
||||||
| 8 | G1/4" | 0.03 | 1.6 | 1.6 | 1.0 | 1.15 | 0.65 | 30 |

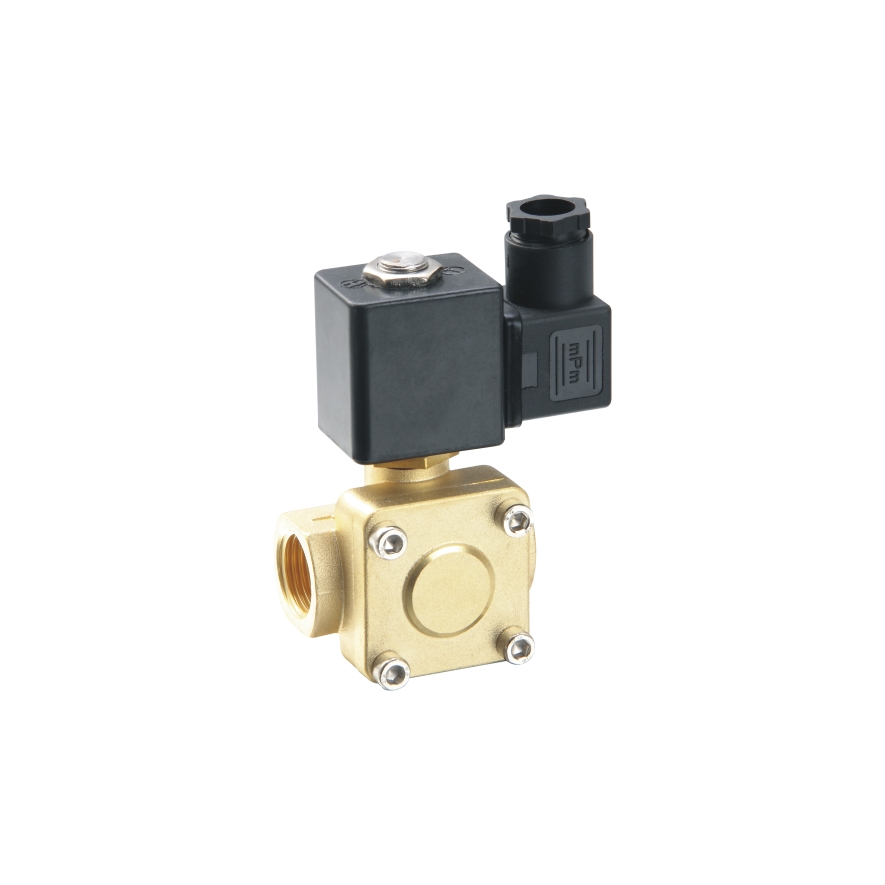

Z0927000 series 0201 Z0927000系列0201 |
Z0955105 series 0201 Z0955105系列0201 |
||
| 10 | G3/8" | 0.03 | 1.6 | 1.6 | 1.0 | 1.70 | 0.65 | 30 | Z0927100系列0201 | Z0955205系列0201 | ||
| 12 | G1/2" | 0.03 | 1.6 | 1.6 | 1.0 | 1.70 | 0.65 | 30 | Z0927200系列0201 | Z0955305系列0201 | ||
| 20 | G3/4" | 0.03 | 1.6 | 1.6 | 1.0 | 5.10 | 1.15 | 30 | Z0927300系列0201 | Z0955405系列0201 | ||
| 25 | G1" | 0.03 | 1.6 | 1.6 | 1.0 | 5.35 | 1.25 | 30 | Z0927400系列0201 | Z0955505系列0201 | ||
| 32 | G1 1/4" | 0.05 | 1.6 | 1.6 | 1.0 | 20.0 | 2.65 | 30 | Z0927500系列201 | Z0955605系列0201 | ||
| 40 | G1 1/2" | 0.05 | 1.6 | 1.6 | 1.0 | 25.0 | 2.55 | 30 | Z0927600系列0201 | Z0955705系列0201 | ||
| 50 | G2" | 0.05 | 1.6 | 1.6 | 1.0 | 43.0 | 3.45 | 30 | Z0927700系列0201 | Z0955805系列0201 | ||
