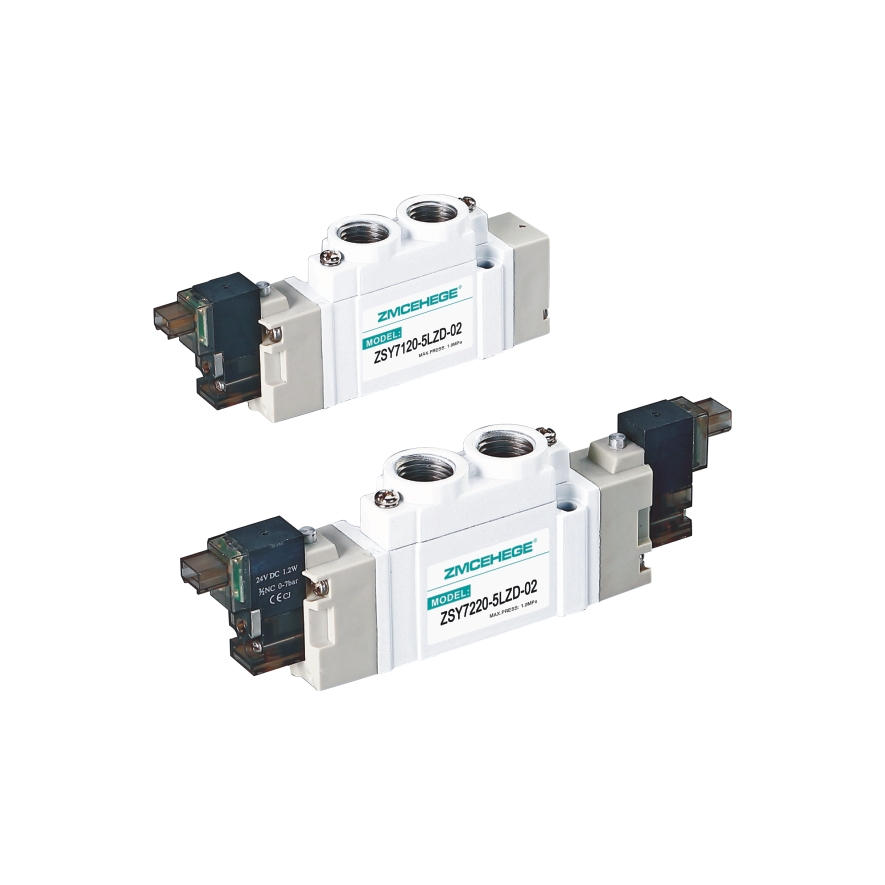

Product Description
|
Model 型号 |
7120-02 | 7220-02 | 7320-02 | 7420-02 | 7520-02 |
| Function机能 |
Two-position five-way single electronic control 二位五通单电控 |
Two-position five-way dual electronic control 二位五通双电控 |
Three-position five-way middle sealed type 三位五通中封式 |
Three-position five-way middle relief type 三位五通中泄式 |
Three-position five-way middle pressure type 三位五通中压式 |
|
Cv value(P-A/B) Cv值(P-A/B) |
0.67 | 052 | 0.46 | 0.89 | |
|
Cv value(A/B-R/S) Cv值(A/B-R/S) |
0.69 | 0.49 | 0.75 | 0.50 | |
|
Connecting pipe bore 接管口径 |
G1/8" | ||||
|
Operating pressure range 使用压力范围 |
0.15~0.7MPa | 0.2~0.7MPa | |||
|
Working medium 工作介质 |
Compressed air 压缩空气 |
||||
|
Action mode 动作方式 |
Internal pilot type 内部先导式 |
||||
|
Maximum action frequency 最大动作频率 |
8 times/second 8次/秒 |
5 times/second 5次/秒 |
|||
|
Response time(ms) 响应时间(ms) |
Below 32 32以下 |
Below 31 31以下 |
|||
|
Lubrication 润滑 |
Without oil supply 不给油 |
||||
|
Medium temperature 介质温度 |
-5~+60°C(not frozen) -5~+60℃(不冻结) |
||||
