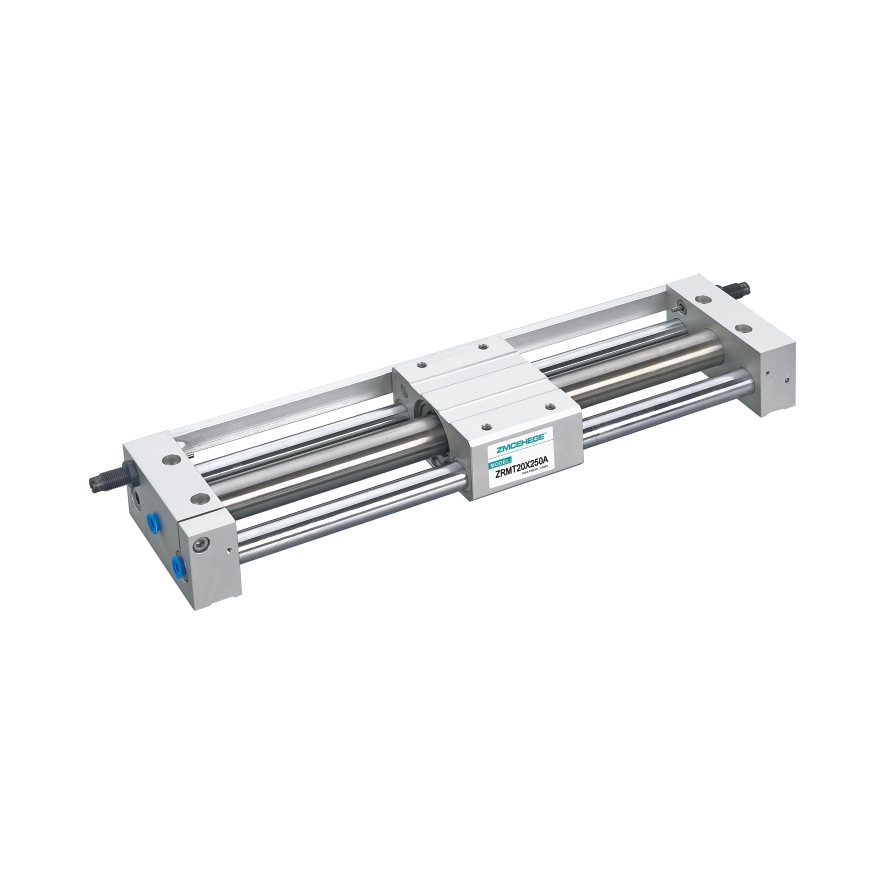

磁偶式无杆气缸

Product Description

1. Magnetic coupling rodless cylinder, with no mechanical connection between piston and slider, excellent sealing performance;

1、磁偶合式无杆气缸，活塞与滑块之间无机械连接，密封性能优异；

2. The action of the piston is transmitted to the external slider through magnetic coupling, without the piston rod. The installation space is less than regular cylinder, and the maximum stroke is larger than regular cylinder;

2、活塞的动作通过磁偶合传达到外部滑块，无需活塞杆，安装空间比普通气缸少，最大行程比普通气缸大；

3. The cylinder is equipped with fixed buffering devices at both ends, the reversing action is stable without impact, while avoiding mechanical damage. Optional external oil buffer, buffer, for better buffering effect.

3、气缸两端带有固定缓冲装置，换向动作平稳无冲击，同时避免机械损伤。可选配外置缓冲油压缓冲器，缓冲气，缓冲效果更佳。

4. The piston chamber is separated from slider to prevent dust and dirt from entering the system and extend the service life of the cylinder;

4、活塞腔与滑块隔开，防止灰尘与污物进入系统，延长气缸的使用寿命；

5. The double guide rod structure has high guidance accuracy and can withstand certain lateral or eccentric load.

5、双导向杆结构，导向精度高，能承受一定的侧向或偏心负载。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm)
内径(mm)

Action type
动作型式

Double action type
复动型

Working medium
工作介质

Air (passing through over 40μm filter)
空气(经40μm以上滤网过滤)

Operating pressure range
使用压力范围

0.18~0.7MPa(28~100psi(1.8~7bar)

Ensure pressure resistance
保证耐压力

1.0MPa(145psi)(10.0bar)

Working temperature °C
工作温度℃

-10~60

Operating speed range mm/s
使用速度范围mm/s

50~400

Stroke tolerance range mm
行程公差范围mm

0~250:

+1.0
0

251~1000:

+1.4
0

1001~:

+1.8
0

Buffering type
缓冲型式

Fixed buffering; oil buffering (optional)
固定缓冲；油压缓冲器缓冲(可选项)

Safety retention force(N)
安全保持力(N)

140

200

320

550

850

Connecting pipe bore
接管口径①

M5×0.8

PT1/8

PT1/4
