气缸系列

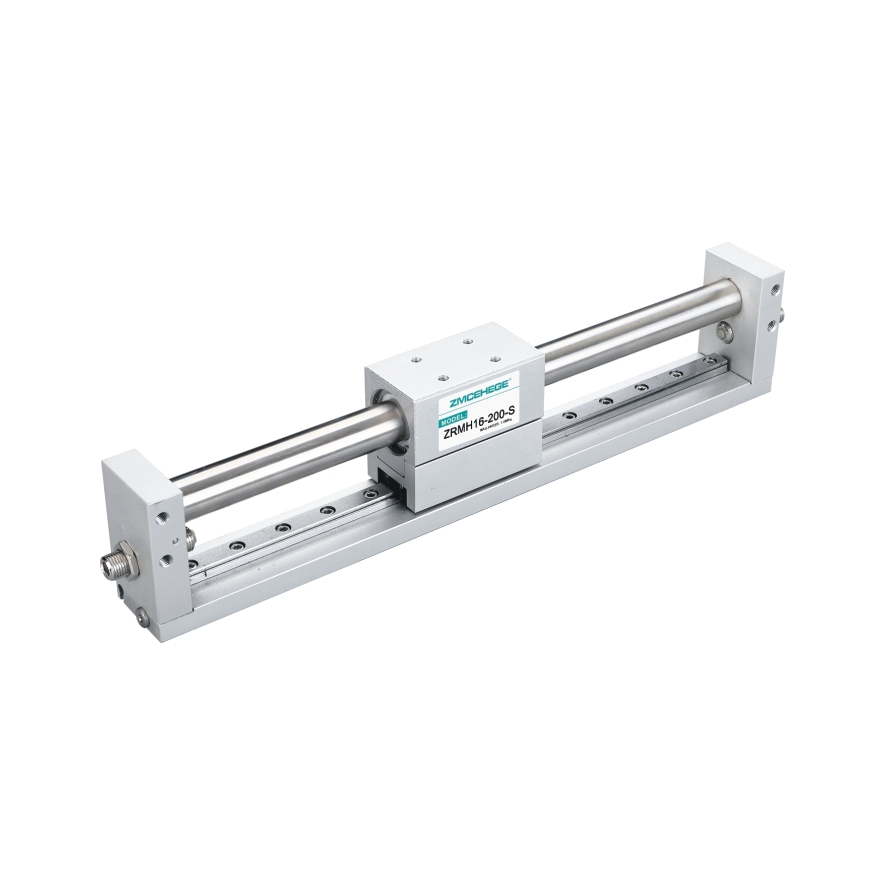

磁偶式无杆气缸

Product Description

1. Magnetic coupling rodless cylinder, with no mechanical connection between piston and slider, excellent sealing performance;

1、磁偶合无杆气缸，活塞与滑块之间无机械连接，密封性能优异；

2. The action of the piston is transmitted to the external slider through magnetic coupling, without the piston rod. The installation space is larger than regular cylinder;

2、活塞的动作通过磁偶合力传达到外部滑块，无需活塞杆，安装空间比普通气缸大；

3. The cylinder is equipped with adjustable buffer fixed buffering devices at both ends, the reversing action is stable without impact, while avoiding mechanical damage; External oil buffer can be ordered separately for better buffering effect;

3、气缸两端带有可调缓冲剂固定缓冲装置，换向动作平稳无缓冲，同时避免机械损伤：可单独订购外置油压缓冲器，缓冲效果更佳：

4. The piston chamber is separated from slider to prevent dust and dirt from entering the system and extend the service life of the cylinder;

4、活塞腔与滑块隔开，防止灰尘与污物进入系统，延长气缸的使用寿命；

5. Adding slide rail design, the body has high operating accuracy, high non-rotating precision, and strong load capacity.

5、增加滑轨设计，本体运行精度高，本体不回转精度高，负载能，能力强。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)	10	16			20		25
Action type 动作型式	Double action type 复动型
Working medium 工作介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	0.2~0.7MPa(28~100psi)(2~7bar)
Ensure pressure resistance 保证耐压力	1.2MPa(175psi)(12.0bar)
Working temperature℃ 工作温度℃	-20~70
Operating speed range mm/s 使用速度范围mm/s	50~400
Stroke tolerance range mm 行程公差范围mm	0~250		+1.0 0	251~800		+1.5 0
Buffering type 缓冲型式	Fixed buffering 固定缓冲
Connecting pipe bore[Note1] 接管口径[注1]	M5×0.8				PT1/8
Safety retention force N 安全保持力N	55	140			220		350
