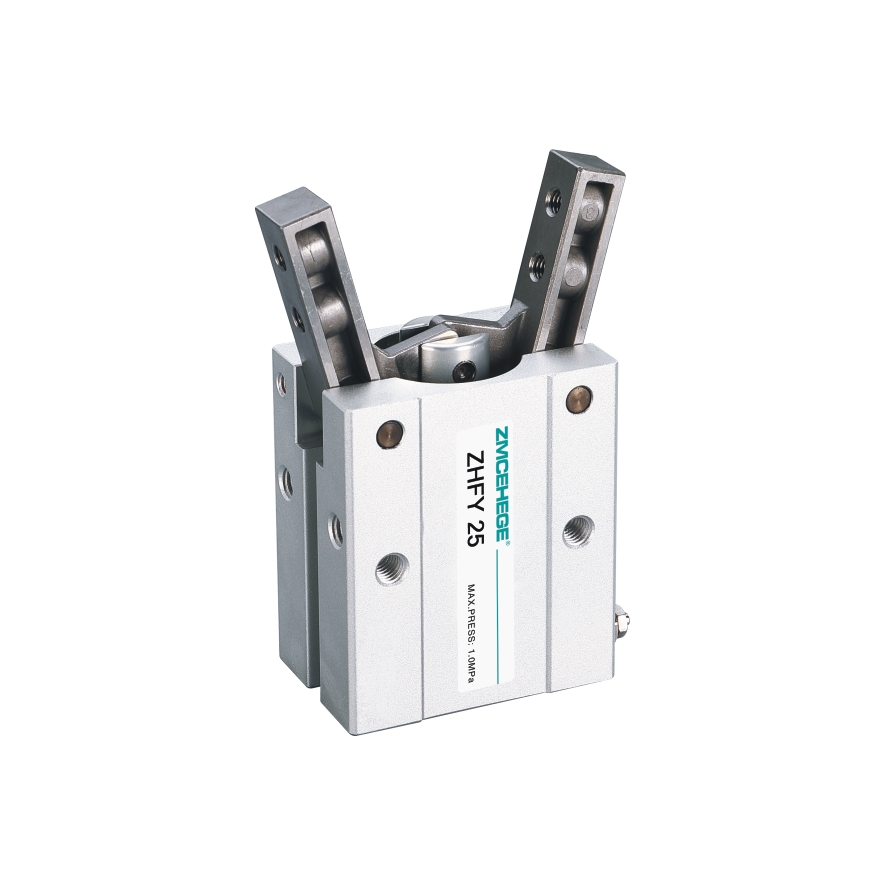

气爪(Y型)

Product Description

1. Adopting a single piston structure with high clamping torque;

1.采用单活塞结构，夹持力矩大：

2. Equipped with a variable throttle valve, it is convenient to adjust the opening and closing speed of the clamp;

2.自带可变节流阀，调节夹爪开闭速度方便；

3. Reasonable clamping angle and wide actual usage range;

3.合理的夹持角度，实际使用范围宽度广；

4. Precise positioning accuracy, more accurate and reliable when clamping workpieces;

4.精准的定位精度，夹取工件时更加准确可靠；

5. Multiple installation methods, convenient for use in different occasions;

5.多种型式的安装方式，方便不用场合的使用；

6. All series come with magnets for easy control.

6.所有系列均附磁石，便于控制。

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore mm 缸径mm			6	10	16	20	25	32
Action type 动作型式			Double action type, Single action type 复动型、单动型
Working medium 工作介质			Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	Double action 复动	φ6	0.15~0.7MPa(22~100psi)(1.5~7.0bar)
		φ10~φ32	0.1~0.7MPa(15~100psi)(1.0~7.0bar)
	Single action 单动	φ6	0.3~0.7MPa(45~100psi)(3.0~7.0bar)
		φ10~φ32	0.25~0.7MPa(36~100psi)(2.5~7.0bar)
Working temperature °C 工作温度℃			-20~70
Oil supply 给油			Cylinder: No need for oil supply; Claw: Lubricating grease 气缸：无需给油；夹爪：润滑脂
Cushion type 缓冲型式			Anti-collision pad 防撞垫
Maximum usage frequency 最高使用频率			180(c.p.m)
Equipped induction switch 所配感应开关①			ZDMS-H
