Action type 动作型式 |

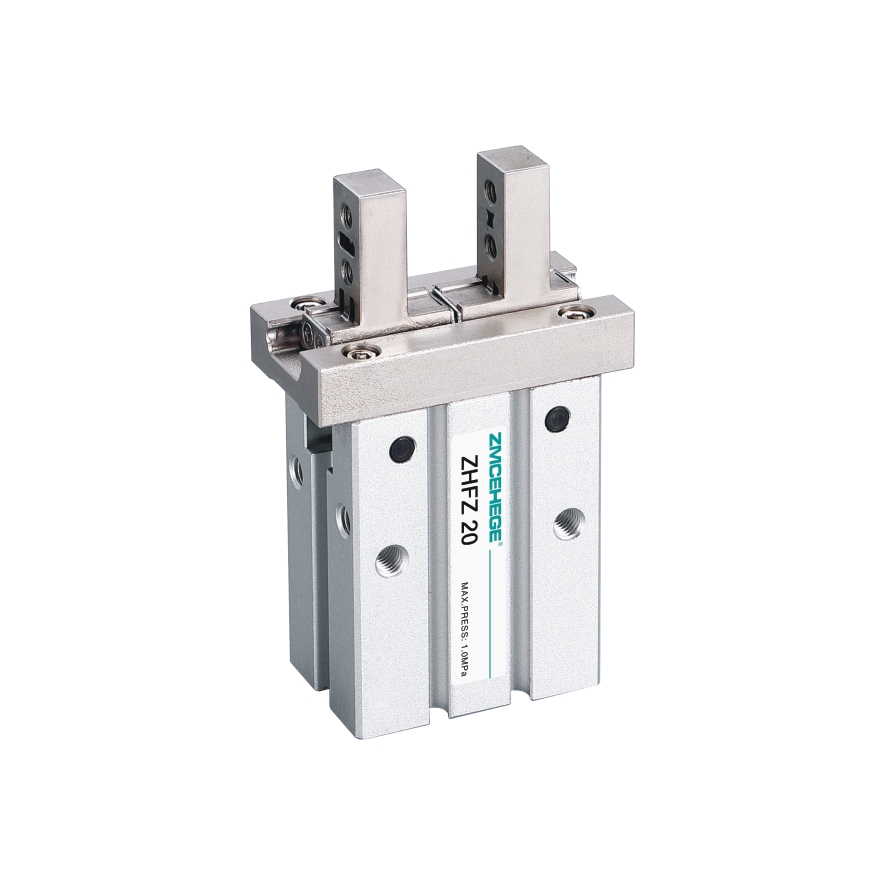

Double action type(ZHFZ) 复动型(ZHFZ) |
Single action normally open type(ZHFTZ) 单动常开型(ZHFTZ) |
Single action normally closed type (ZHFSZ) 单动常闭型(ZHFSZ) |
||||||||||||||||||||
|
Cylinder bore 缸径 |
6 | 10 | 16 | 20 | 25 | 32 | 40 | 6 | 10 | 16 | 20 | 25 | 32 | 40 | 6 | 10 | 16 | 20 | 25 | 32 | 40 | ||
|
Effective value of clamping force of a single pneumatic finger (N) 单个气动手指夹持力有效值(N) |
Closing clamping force 闭合夹持力 |
3.3 | 11 | 34 | 45 | 69 | 160 | 255 | 1.9 | 7 | 27 | 35 | 55 | 133 | 220 | - | - | - | - | - | - | - | |
|
Opening clamping force 张开夹持力 |
6.1 | 17 | 45 | 68 | 102 | 195 | 320 | - | - | - | - | - | - | - | 3.7 | 13 | 38 | 59 | 87 | 163 | 270 | ||
|
Opening and closing stroke (both sides) (mm) 开闭行程(两侧)(mm) |
3 | 4 | 6 | 10 | 14 | 22 | 30 | 3 | 4 | 6 | 10 | 14 | 22 | 30 | 3 | 4 | 6 | 10 | 14 | 22 | 30 | ||
|
Weight (g) 重量(g) |
F type F型 |
24 | - | - | - | - | - | - | 25 | - | - | - | - | - | - | 25 | - | - | - | - | - | - | |
|
Other 其它 |
25 | 56 | 124 | 236 | 428 | 729 | 1268 | 26 | 57 | 125 | 238 | 430 | 778 | 1365 | 26 | 57 | 125 | 238 | 430 | 778 | 1365 | ||
