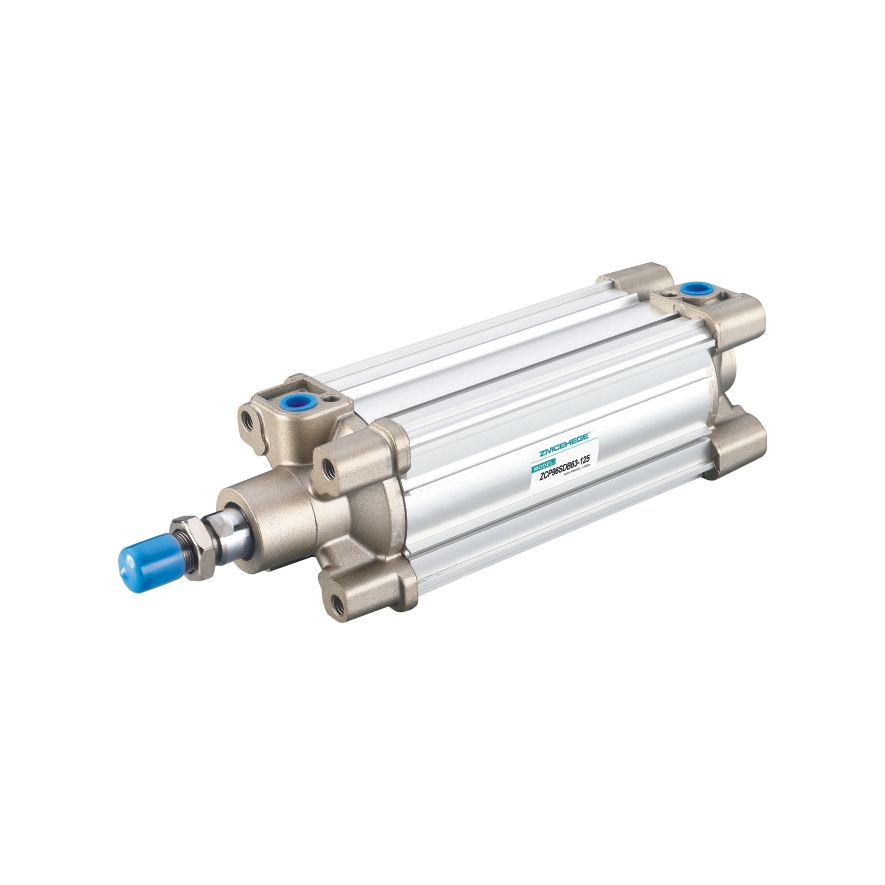

Product Description
|
Cylinder bore (mm) 缸径(mm) |
32 | 40 | 50 | 63 | 80 | 100 | 125 | |||||||||
|
Action mode 动作方式 |
Double action 双作用 |
|||||||||||||||
|
Using fluid 使用流体 |
Air 空气 |
|||||||||||||||
|
Ensure pressure resistance 保证耐压力 |
1.5MPa | |||||||||||||||
|
Maximum operating pressure 最高使用压力 |
1.0MPa | |||||||||||||||
|
Minimum operating pressure 最低使用压力 |
0.05MPa | |||||||||||||||
|
Environment and fluid temperature 环境和流体温度 |
Non magnetic switch: -20℃~70℃(Not frozen) 不带磁性开关：-20℃~70℃(未冻结) |
|||||||||||||||
|
Magnetic switch -10°C~60°C (Not frozen) 带磁性开关：-10℃~60℃(未冻结) |
||||||||||||||||
|
*Lubrication *润滑 |
No need 不需要 |
|||||||||||||||
|
Piston speed 活塞速度 |
50~1000 mm/s | 50~700 mm/s | ||||||||||||||
|
Stroke tolerance range(mm) 行程公差(mm) |
0~250: |
+1.0 0 |
,251~1000: |
+1.4 0 |
,1001~1500: |
+1.8 0 |
, 1501~2000: |
+2.2 0 |
||||||||
|
Buffer 缓冲 |
Air buffering and rubber buffering at both ends 两端气缓冲及橡胶缓冲 |
Air buffering at both ends 两端气缓冲 |
||||||||||||||
|
Connecting pipe bore 接管口径 |
G1/8 | G1/4 | G3/8 | G1/2 | ||||||||||||
