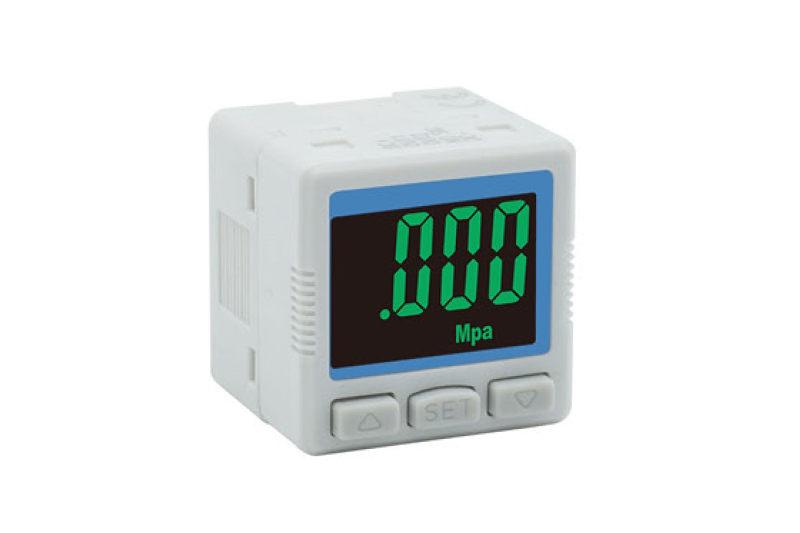

数位显示气压开关

Product Description

Do not drop, knock, or apply excessive impact, which may cause internal damage and result in misoperation.

●不可摔落、敲打、施于过大冲击，影响内部损坏导致误动作。

The tensile strength of the connecting wire is 60N, and a force greater than this can cause failure.

●连结线拉伸强度为60N，大于此力会导致故障。

The torsional strength of the air pressure source pipe joint is 7N·m, and exceeding this force can cause airtightness and system failure.

●气压源管接头耐扭强度7N·m，大于此力会导致气密及系统故障。

This product is not suitable for corrosive, flammable gases, and liquids.

●腐蚀性、可燃气体及液体不适用本产品。

Air pressure should be within the rated air pressure range of the product, as exceeding it may cause damage to the product.

●使用气压请于产品额定气压范围内，超过会使产品损坏。

When wiring the circuit, the product power should be turned off completely. Incorrect wiring and short circuits can damage the product.

●电路配线时应关毕产品电源，错误接线及短路会使产品损坏。

Do not use in environments with moisture and oil mist.

●请勿在有水气及油雾的环境使用。

When wiring, do not bundle it with power lines or high-voltage wires, that may cause misoperation.

●配线时不可与电源线、高压电线捆绑在一起导致误动作。

Categories

tel-phone

13817455525

DetailMessage

Model 型号		ZDPSN1-01、ZDPSN1-10、ZDPSP1-01、ZDPSP1-10
Input power supply 输入电源	Power supply range 电源范围	12 to 24VDC ± 10%, ripple peak < 10% 12 to 24VDC ±10%，涟波峰值<10%
	Consumption current 消耗电流	Below 45mA Max (when unloaded) 45mA Max以下(无负载时)
Pressure range 压力范围	Fluid form 流体形式	Non corrosive gases 非腐蚀性气体
	Measurement range 量测范围	ZDPSN1(P1)-01:-100kPa to 100kPa
		ZDPSN1(P1)-10:-100kPa to 1000kPa
	Maximum pressure resistance 最大耐压	ZDPSN1(P1)-01:200kPa
		ZDPSN1(P1)-10:1500kPa
	Measurement error 量测误差	± 2% full range, ± 1 digit (ambient temperature 25 ± 3 °C) ±2%全量程，±1digit(周围温度25±3℃)
	Repeating accuracy 重覆精度	± 0.2% of full range ±0.2%全量程
	Temperature error 温度误差	± 3% full range (25 °C reference, 0 to 50 °C range) ±3%全量程(25℃基准，0 to 50℃范围)
Display 显示	Display type 显示型式	Double row LCD display with 4-digit measurement and 3.5 digit set value 双排LCD显示4位数量测及3.5位数设定值
	Output display 输出显示	LCD dual output display LCD双输出显示
	Display color 显示颜色	Optional dual color display (red, green) 可选择双色显示(红色、绿色)
	Display cycle 显示周期	100ms、250ms、500ms、1000ms
Output 输出	Number of output groups 输出组数	ZDPSN1: Built in 2 sets of NPN outputs ZDPSN1：内建2组NPN输出
		ZDPSP1: Built in 2 sets of PNP outputs ZDPSP1：内建2组PNP输出
	Transistor output 电晶体输出	NPN: Maximum withstand voltage 30V/100mA, residual voltage<1.5V NPN：最大耐压30V/100mA，残留电压<1.5V
		PNP: Maximum withstand voltage 30V/100mA, residual voltage<1.5V PNP：最大耐压30V/100mA，残留电压<1.5V
	Reaction time 反应时间	2ms、20ms、50ms、100ms、250ms、500ms、1000ms、2500ms、5000ms
	Hysteresis 迟滞	ZDPSN1(P1)-01:0.1、0.2、0.3…0.8(kPa)
		ZDPSN1(P1)-10:1、2、3…8(kPa)
	Output mode 输出模式	Simple mode, hysteresis mode, window mode 简易模式、迟滞模式、窗型模式
Air pressure unit 气压单位	ZDPSN1(P1)-01:kPa、kgf/cm、bar、psi、mmHg、inHg
	ZDPSN1(P1)-10:MPa、kPa、kgf/cm²、bar、psi、cmHg、inHg
Vibration resistance 耐震动	10 to 500Hz, 10mm amplitude, 3-axis direction for 2 hours 10 to 500Hz，10mm震幅，3轴方向2小时
Impact resistance 耐冲击	Maximum 100m/s², each 3 times in 6 direction of 3 axis 最大100m/s²，3轴6方向各3次
Operating environment temperature 操作环境温度	0℃ to +50℃
Storage environment temperature 存放环境温度	-20℃ to +65℃
Operating environment humidity 操作环境湿度	35% to 80% RH (without condensation) 35% to 80% RH(无结露)
