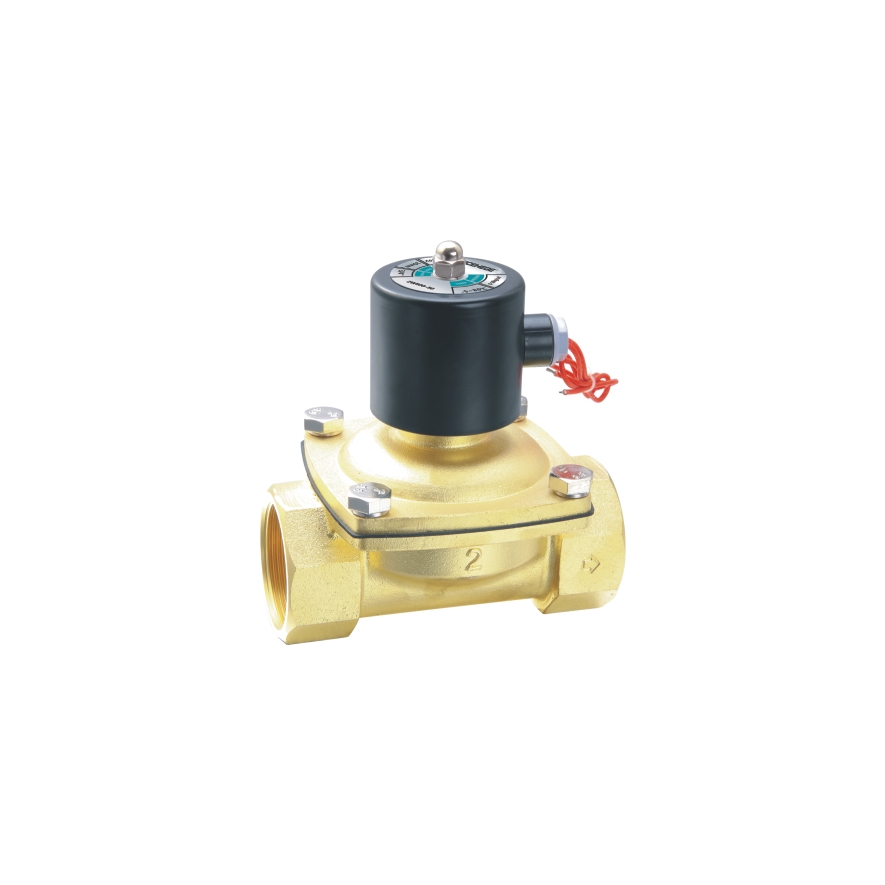

二位二通膜片电磁阀

Product Description

Suitable for controlling liquids, gases, light oil (≤ 20CST) and other media, adopting a direct action structure, zero pressure opening valve, large flow rate, and high reliability. The valve body material is copper (hot forged), and this series has multiple types. You can choose according to your control needs.

适用于控制液体，气体，轻油(≤20CST)等介质，采用直动式结构，零压力开阀，流量大，可靠性高等特点。阀体材质为黄铜(热锻)，该系列具有多种型式，您可以根据控制需要进行选择。

Categories

tel-phone

13817455525

DetailMessage

Model 型号	Z2W025 -06	Z2W025 -08	Z2W040 -10		Z2W160 -10	Z2W160 -15	Z2W200 -20	Z2W250 -25	Z2W350 -35	Z2W400 -40	Z2W500-50
Using medium 使用介质	Air, water, oil, mashgas 空气、水、油、瓦斯
Action mode 动作方式	Direct action type 直动式
Type 型式	Normally Closed NC (Powered On) Normally Open NO (Powered Off) 常闭型NC(通电开启)常开型NO(通电关闭)
Flow rate caliber(mm) 流量孔径(mm)	2.5		4		16	16	20	25	35	40	50
Cv value Cv值	0.23		0.6		4.8	4.8	7.6	12	24	29	48
Connecting pipe bore 接管口径	1/8"	1/4"	3/8"		3/8"	1/2"	3/4"	1"	1 1/4"	1 1/2"	2"
Using fluid viscosity 使用流体粘滞度	Below 20CST 20CST以下
Operating pressure range(kgf/cm²) 使用压力(kgf/cm²)	0~7			Oil: 0~5; Mashgas: 0~7; Water: 0~5; Air: 0~7 油：0~5；瓦斯：0~7；水：0~5；空气：0~7
Maximum pressure resistance(kgf/cm²) 最大耐压力(kgf/cm²)	10			10.5
Working temperature range(°C) 工作温度范围(℃)	-5~80
Using voltage range 使用电压范围	±10%
Body material 本体材质	2W: Brass 2W：黄铜
Oil seal material 油封材质	Nitrile rubber (NBR conventional type) 丁腈橡胶(NBR常规型)
