控制元件

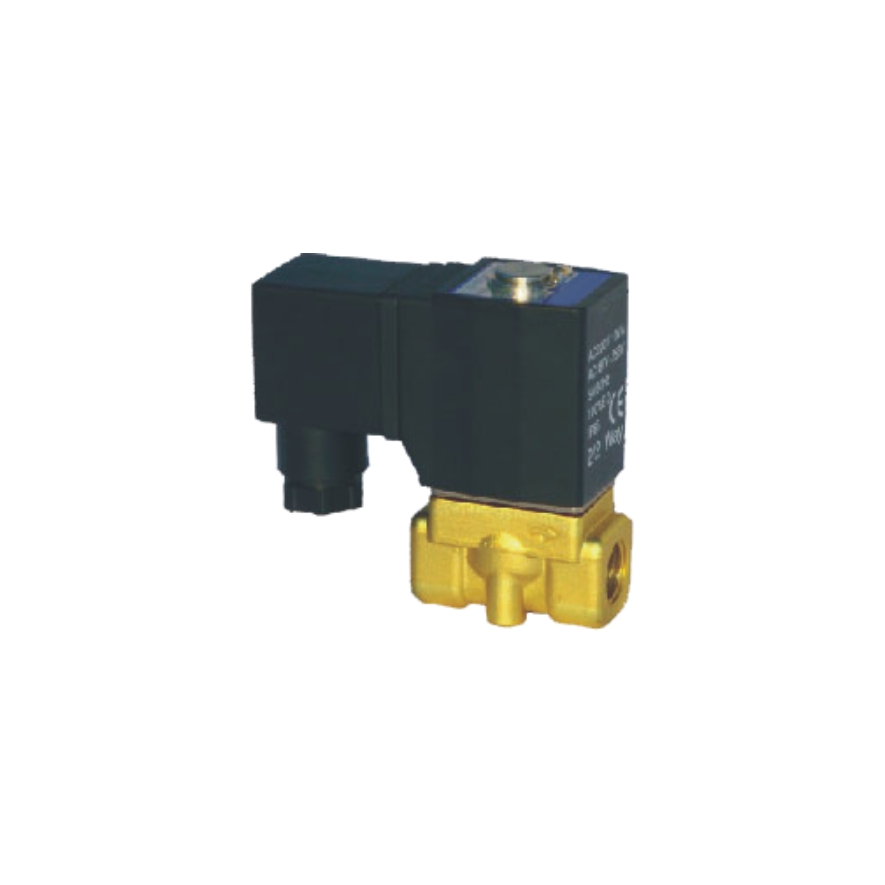

流体控制阀(直动常开型)

Product Description

1. Direct acting normally open two port two position solenoid valve, quick and sensitive for reversing;

1、直动常开型二口二位电磁阀，换向迅速、灵敏；

2. The pressure range is wide, with options for ultra-high pressure (X), high pressure (H), standard, large flow rate (L), and extra large flow rate (T);

2、使用压力范围广，有超高压型(X)、高压型(H)、标准型、大流量型(L)、特大流量型(T)可供选择；

3. Compact structure, small size, light weight, and easy installation and disassembly;

3、结构紧凑、体积小，重量轻，装拆方便；

4. The valve body is made of brass, the electromagnetic coil has a heat resistance grade of B, and the standard sealing material is FPM-F (fluororubber), suitable for various working media. Other sealing materials can be customized. Please consult the company's technical department;

4、阀体材质黄铜，电磁线圈耐热等级为B级，标准密封件材质为FPM-F(氟橡胶)，适用于多种工作介质，其它材质密封件可定制，请咨询本公司技术部门；

5. The coil protection level is IP65, and there are two types of power connection methods: direct leading-out wire type and DIN socket type.

5、线圈防护等级IP65，接电方式有直接出线式、DIN插座式。

Categories

tel-phone

13817455525

DetailMessage

Model/item 型号/项目		Connecting pipe bore 接管口径 ①	Flow rate caliber 流通孔径 (φmm)	Cv value Cv值	Effective cross-sectional area(mm²) 有效截面积 (mm²)	Weight 重量② (g)	Maximum operating pressure difference 最大操作压差		Maximum pressure resistance 最大耐压力
							MPa	psi	MPa	psl
Z2KWX030	-06	PT1/8	1.5	0.10	1.8	315	2.0	300	3.0	450
	-08	PT1/4				305
Z2KWH030	-06	PT1/8	2.0	0.18	3.0	315	1.5	220
	-08	PT1/4				305
Z2KW030	-06	PT1/8	3.0	0.33	6.0	315	0.7	100
	-08	PT1/4				305
Z2KWL030	-06	PT1/8	4.0	0.55	10.0	315	0.4	60
	-08	PT1/4				305
Z2KWX050	-10	PT3/8	3.0	0.34	6.1	635	2.0	300
	-15	PT1/2				615
Z2KWH050	-10	PT3/8	4.0	0.55	10.0	635	1.5	220
	-15	PT1/2				615
Z2KW050	-10	PT3/8	5.0	0.83	15.0	635	0.7	100
	-15	PT1/2				615
Z2KWL050	-10	PT3/8	7.0	1.40	25.0	635	0.4	60
	-15	PT1/2				615

①Thread of connecting pipe has NPT and G type for option.

①接管牙型有NPT、G牙可供选择。

② The weight in the table is for the DIN socket type. The weight of Z2KW030 series leading-out wire type is 10g less than the DIN socket type, and the weight of Z2KW050 series leading-out wire type is 20g less than the DIN socket type.

②表中重量为DIN插座式重量，Z2KW030系列出线式重量比DIN插座式少10g，Z2KW050系列出线式重量比DIN插座式少20g。
