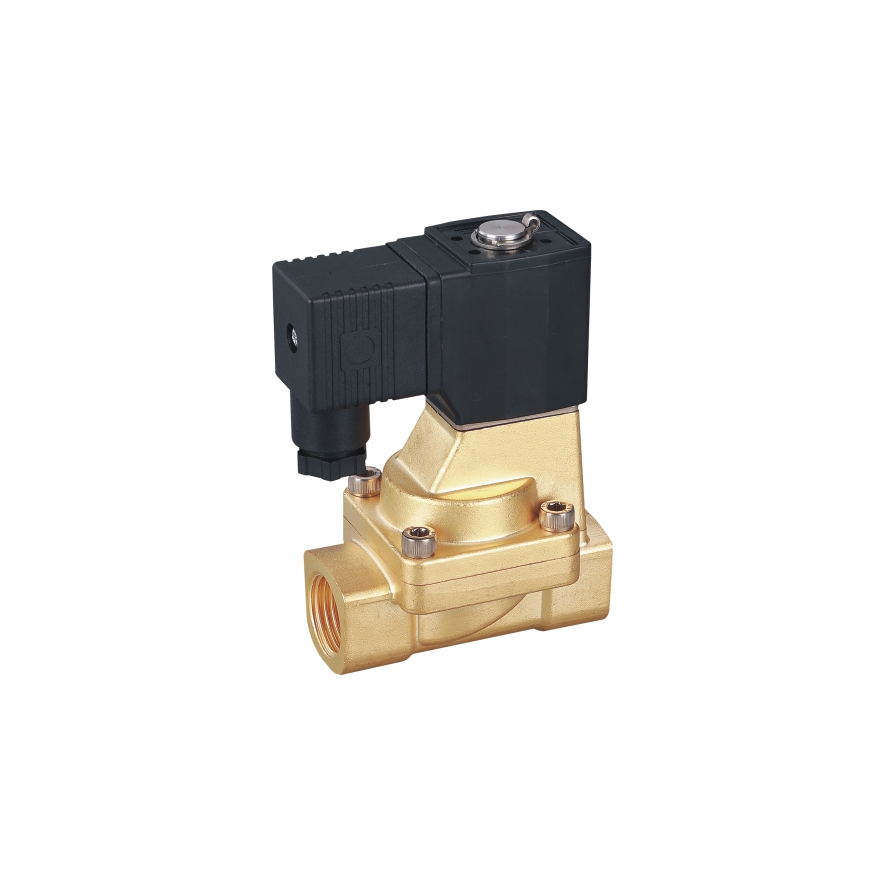

流体控制阀(先导常闭型)

Product Description

1. Piston-pilot normally closed two port two position solenoid valve, with fast reversing and large flow rate;

1、活塞先导常闭型二口二位电磁阀，换向迅速、流量大；

2. Compact structure, small size, light weight, and easy installation and disassembly;

2、结构紧凑、体积小，重量轻，装拆方便；

3. The valve body is made of brass, the electromagnetic coil has a heat resistance grade of B, and the standard sealing material is FPM-F (fluororubber), suitable for various working media. Other sealing materials can be customized. Please consult the company's technical department;

3、阀体材质黄铜，电磁线圈耐热等级为B级，标准密封件材质为FPM-F(氟橡胶)，适用于多种工作介质，其它材质密封件可定制，请咨询本公司技术部门；

4. The coil protection level is IP65, and there are two types of power connection methods: direct leading-out wire type and DIN socket type.

4、线圈防护等级IP65，接电方式有直接出线式、DIN插座式。

Categories

tel-phone

13817455525

DetailMessage

Model/item 型号/项目	Connecting pipe bore 接管口径①	Flow rate caliber 流通孔径 (φmm)	Cv value Cv值	Effective cross-sectional area(mm²) 有效截面积 (mm²)	Weight 重量② (g)	Maximum operating pressure difference 最大操作压差		Maximum pressure resistance 最大耐压力
						MPa	psi	MPa	psi
Z2W150-15	PT1/2	15.0	5.50	100.0	720	Max:1.0 Min:0.05	Max:150 Min:10	1.5	220
Z2W200-20	PT3/4	20.0	9.50	170.0	950
Z2W250-25	PT1	25.0	12.50	220.0	1200

①Thread of connecting pipe has NPT and G type for option.

①接管牙型有NPT、G牙可供选择。

②The weight in the table is DIN socket type weight, the outlet type weight is 10g less than DIN socket type.

②表中重量为DIN插座式重量，出线式重量比DIN插座式少10g。

Coil specifications

线圈规格

Valve body model 阀体型号	Equipped coil model 所配线圈型号	Power supply type 电源种类	Power frequency (Hz) 电源频率(Hz)	Permissible voltage variation 容许电压变动	Power connection method 接电方式	Power consumption (VA/W) 功耗(VA/W)	Insulation level 绝缘等级	Temperature rise (°C) 温升(℃)
Z2W150 Z2W200 Z2W250	CDA116 CLA116	AC	50	±15%	DIN socket type (CDA) Leading-out wire type (CLA) DIN插座式(CDA) 出线式(CLA)	10.0VA	Class B B级	35
		AC	60	±15%		8.0VA		30
		DC	-	±10%		6.5W		30
