控制元件

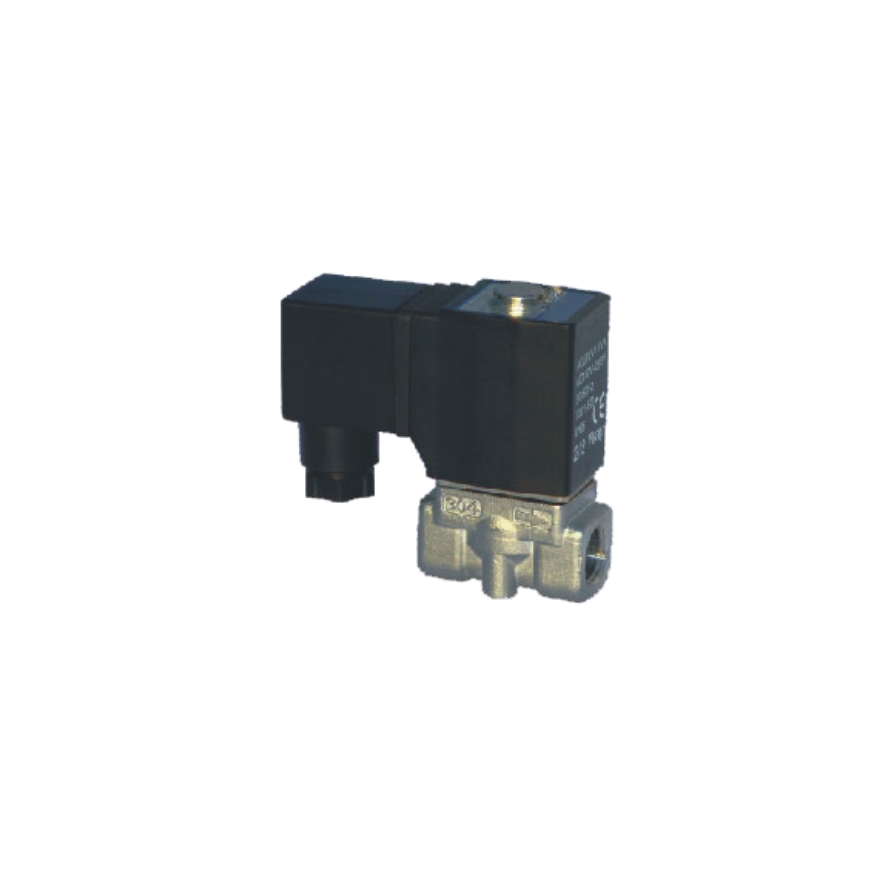

流体控制阀(直动常闭型)

Product Description

1. Direct acting normally closed two port two position solenoid valve, quick and sensitive for reversing;

1、直动常闭型二口二位电磁阀，换向迅速、灵敏；

2. The pressure range is wide, with options for ultra-high pressure (X), high pressure (H), standard, large flow rate (L), and extra large flow rate (T);

2、使用压力范围广，有超高压型(X)、高压型(H)、标准型、大流量型(L)、特大流量型(T)可供选择；

3. Compact structure, small size, light weight, and easy installation and disassembly;

3、结构紧凑、体积小，重量轻，装拆方便；

4. The valve body is made of brass, the electromagnetic coil has a heat resistance grade of B, and the standard sealing material is FPM-F (fluororubber), suitable for various working media. Other sealing materials can be customized. Please consult the company's technical department;

4、阀体材质SUS304不锈钢，电磁线圈耐热等级为B级，标准密封件材质为FPM-F(氟橡胶)，适用于多种工作介质，其它材质密封件可定制，请咨询本公司技术部门；

5. The coil protection level is IP65, and there are two types of power connection methods: direct leading-out wire type and DIN socket type.

5、线圈防护等级IP65，接电方式有直接出线式、DIN插座式。

Categories

tel-phone

13817455525

DetailMessage

Model/item 型号/项目		Connecting pipe bore 接管口径 ①	Flow rate caliber 流通孔径 (φmm)	Cv value Cv值	Effective cross-sectional area(mm²) 有效截面积 (mm²)	Weight 重量② (g)	Maximum operating pressure difference 最大操作压差		Maximum pressure resistance 最大耐压力
							MPa	psi	MPa	psl
Z2SX030	-06	PT1/8	1.5	0.10	1.8	300	3.0	450	5.0	750
	-08	PT1/4				295
Z2SH030	-06	PT1/8	2.0	0.18	3.0	300	2.0	300
	-08	PT1/4				290
Z2S030	-06	PT1/8	3.0	0.33	6.0	300	1.0	150
	-08	PT1/4				290
Z2SL030	-06	PT1/8	4.0	0.55	10.0	300	0.5	75
	-08	PT1/4				290
Z2ST030	-06	PT1/8	6.0	1.10	12.0	300	0.1	15
	-08	PT1/4				290
Z2SX050	-10	PT3/8	3.0	0.34	6.1	600	3.0	450
	-15	PT1/2				590
Z2SH050	-10	PT3/8	4.0	0.55	10.0	600	2.0	300
	-15	PT1/2				590
Z2S050	-10	PT3/8	5.0	0.83	15.0	600	1.0	150
	-15	PT1/2				590
Z2SL050	-10	PT3/8	7.0	1.40	25.0	600	0.5	75
	-15	PT1/2				590
Z2ST050	-10	PT3/8	10.0	2.20	40.0	600	0.1	15
	-15	PT1/2				590

①Thread of connecting pipe has NPT and G type for option.

①接管牙型有NPT、G牙可供选择。

②The weight in the table is for DIN socket type. The weight of 2S030 series leading-out wire type is 10g less than that of DIN socket type, and the weight of 2S050 series leading-out wire type is 20g less than that of DIN socket type.

②表中重量为DIN插座式重量，2S030系列出线式重量比DIN插座式少10g，2S050系列出线式重量比DIN插座式少20g。
