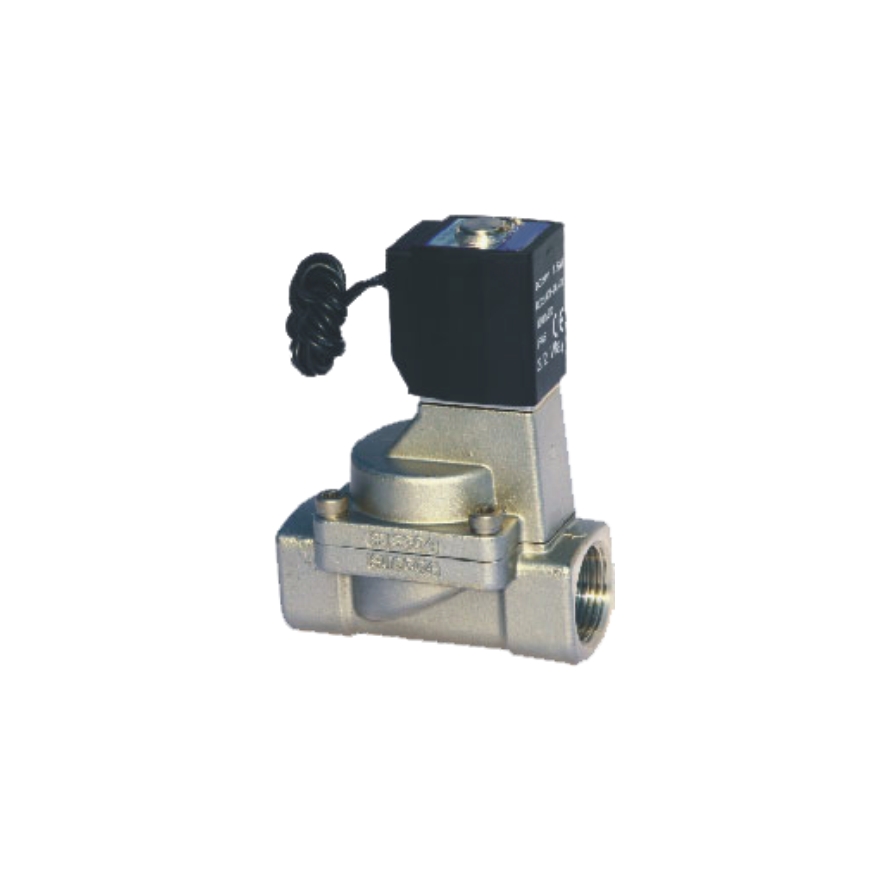

流体控制阀(先导常闭型)

Product Description

1. Piston-pilot normally closed two port two position solenoid valve, with fast reversing and large flow rate;

1、活塞先导常闭型二口二位电磁阀，换向迅速、流量大；

2. Compact structure, small size, light weight, and easy installation and disassembly;

2、结构紧凑、体积小，重量轻，装拆方便；

3. The valve body is made of brass, the electromagnetic coil has a heat resistance grade of B, and the standard sealing material is FPM-F (fluororubber), suitable for various working media. Other sealing materials can be customized. Please consult the company's technical department;

3、阀体材质SUS304不锈钢，电磁线圈耐热等级为B级，标准密封件材质为FPM-F(氟橡胶)，适用于多种工作介质，其它材质密封件可定制，请咨询本公司技术部门；

4. The coil protection level is IP65, and there are two types of power connection methods: direct leading-out wire type and DIN socket type.

4、线圈防护等级为IP65，接电方式有直接出线式、DIN插座式。

Categories

tel-phone

13817455525

DetailMessage

Model/item 型号/项目	Connecting pipe bore 接管口径①	Flow rate caliber 流通孔径(φmm)	Cv value Cv值	Effective cross-sectional area(mm²) 有效截面积 (mm²)	Weight 重量② (g)	Maximum operating pressure difference 最大操作压差		Maximum pressure resistance 最大耐压力
Model/item 型号/项目	Connecting pipe bore 接管口径①	Flow rate caliber 流通孔径(φmm)	Cv value Cv值	Effective cross-sectional area(mm²) 有效截面积 (mm²)	Weight 重量② (g)	MPa	psi	MPa	psi
Z2S150-15	PT1/2	15.0	5.50	100.0	675	Max:1.0 Min:0.05	Max:150 Min:10	1.5	220
Z2S200-20	PT3/4	20.0	9.50	170.0	875
Z2S250-25	PT1	25.0	12.50	220.0	1120
Z2S320-32	PT11/4	35.0	23.00	420.0	2700
Z2S400-40	PT11/2	40.0	31.00	560.0	3250
Z2S500-50	PT2	50.0	49.00	880.0	4300

①Thread of connecting pipe has NPT and G type for option.

①接管牙型有NPT、G牙可供选择。

②The weight in the table is for DIN socket type. The weight of Z2S150~250 leading-out wire type is 10g less than that of DIN socket type, and the weight of Z2S320~500 leading-out wire type is 20g less than that of DIN socket type.

②表中重量为DIN插座式重量，Z2S150~250出线式重量比DIN插座式少10g，Z2S320~500出线式重量比DIN插座式少20g。
