控制元件

电磁阀

Product Description

1. The single electronic control solenoid valve adopts a piston gas reset design, effectively improving the time difference and stability of traditional solenoid valve reversing and resetting under low and higher pressure conditions, and effectively extending its service life;

1、单电控电磁阀采用活塞气复位设计，有效改善低压及较高压工况传统电磁阀换向复位的时间差及稳定性，有效延长使用寿命；

2. New processing technology, the machining roughness of the inner hole of the solenoid valve has been improved to within Ra0.1;

2、全新加工工艺，电磁阀内孔加工粗糙度提升到Ra0.1以内；

3. The electromagnetic valve body adopts special inner hole treatment to reduce the reversing resistance of the valve core;

3、电磁阀阀体采用特殊内孔处理，降低阀芯换向阻力；

4. Adding high-precision support rings to the solenoid valve core improves commutation stability and significantly improves service life;

4、电磁阀阀芯上增加高精密支撑环提高换向稳定度，大幅提高使用寿命；

5. The imported hydrogenated nitrile rubber shaft sealing ring with self formulated formula can maximize the wear resistance strength of the sealing ring;

5、自行配方之进口氢化丁腈橡胶轴心密封圈可最大限度提高密封圈耐磨耗强度；

6. Using high standard special lubricating grease imported from Germany, effectively forming a protective film and reducing wear;

6、采用德国进口高标特种润滑脂，有效形成保护膜，降低磨损；

7. Introduce high-precision injection molds and sealing component molds to improve the precision and stability of component dimensions;

7、引进高精密注塑模具及密封件模具，提升零件尺寸精密度及稳定性；

8. All new visual design, synchronized with world leading products.

8、全新视觉造型，与世界领先产品同步接轨。

Categories

tel-phone

13817455525

DetailMessage

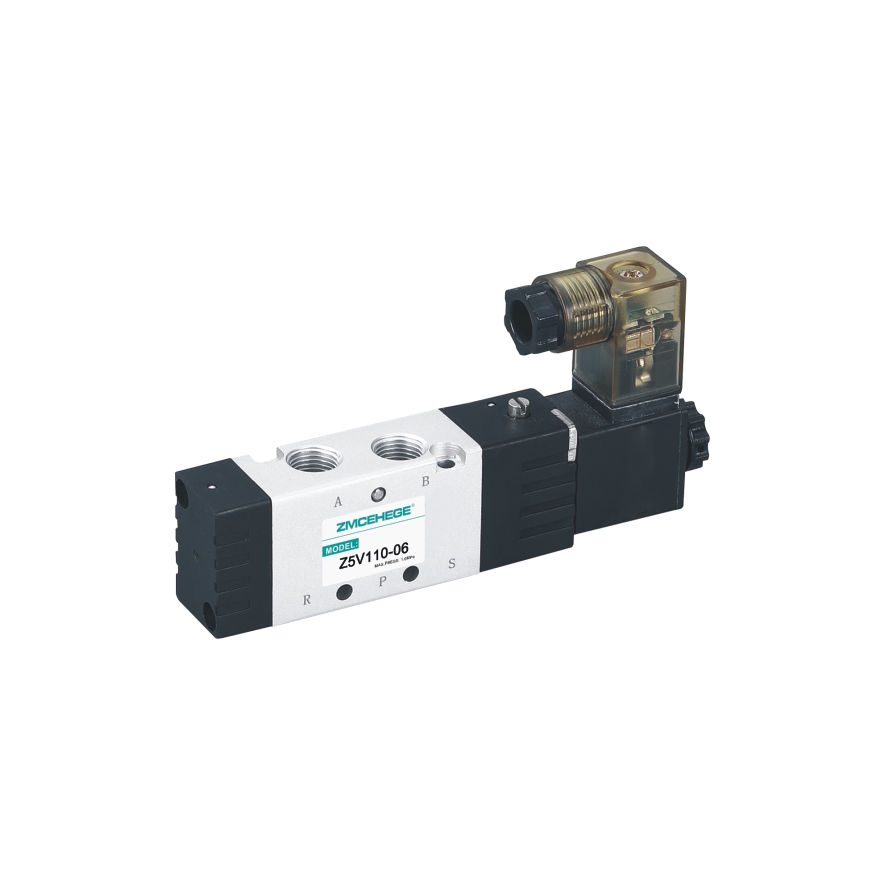

Model 型号	Z5V110-06	Z5V120-06	Z5V130C-06	Z5V130E-06	Z5V130P-06
Number of positions 位置数	Two-position five-way 二位五通			Three-position five-way 三位五通
Effective cross-sectional area 有效截面积	12mm²(CV=0.67)			9mm²(CV=0.5)
Connecting pipe bore 接管口径	Inlet=outlet=exhaust=G1/8" 进气=出气=排气=G1/8"
Working medium 工作介质	Passing through over 40μm filter 经40微米以上滤网过滤
Action mode 动作方式	Internal pilot type 内部先导式
Operating pressure 使用压力	0.15~0.8MPa
Maximum pressure resistance 最大耐压力	1.2MPa
Working temperature 工作温度	-20~70℃
Voltage range 电压范围	DC:±10%AC:±15%
Power consumption 耗电量	AC:4.5VA DC:3.0W
Insulation and protection level 绝缘性及防护等级	Class F, IP65 F级，IP65
Wiring form 接线形式	Leading-out wire type or terminal type 出线式或端子式
Maximum action frequency 最高动作频率	Five times per second 每秒五次
Minimum excitation time 最短励磁时间	0.05
