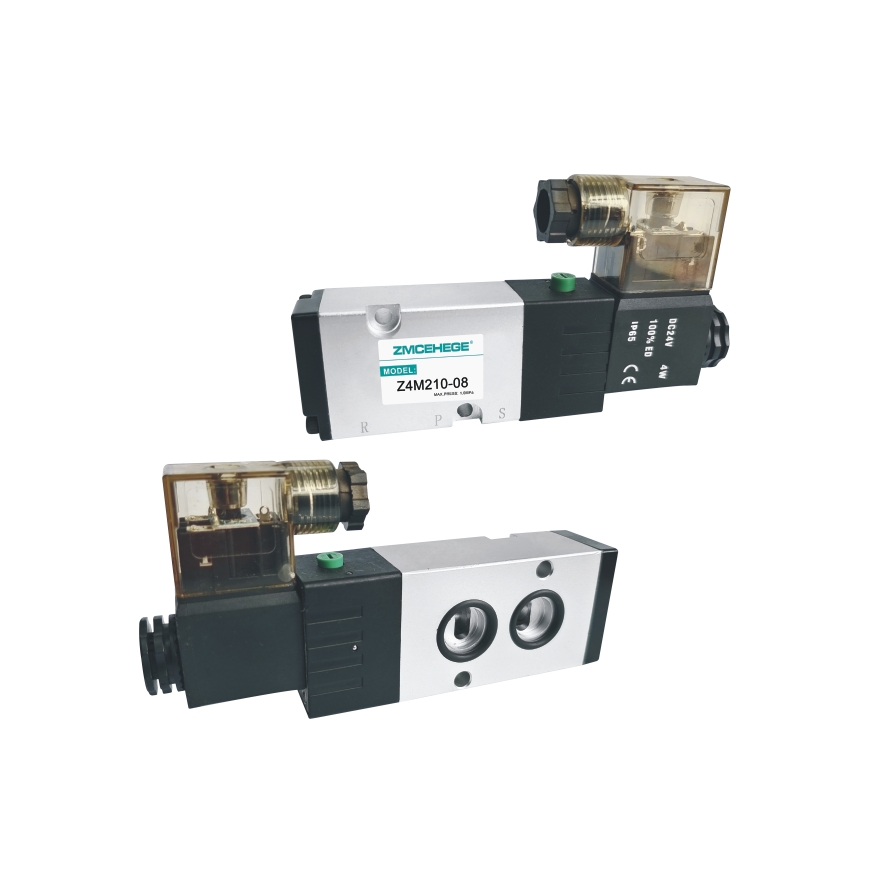

电磁阀

Product Description

1. Internal pilot structure;

1、内部先导式结构；

2. Sliding column structure, good sealing performance, and sensitive response;

2、滑柱式结构，密封性好，反应灵敏；

3. The dual head two position solenoid valve has a memory function;

3、双头二位电磁阀具有记忆功能；

4. The dual head two position solenoid valve has a memory function;

4、双头二位置电磁阀具有记忆功能；

5. The inner hole is processed using special technology, with low friction resistance, low starting air pressure, and long service life;

5、内孔采用特殊工艺加工，磨擦阻力小，启动气压低，使用寿命长；

6. No need for oil lubrication;

6、无需加油润滑；

7. Side panel installation, can be directly connected to the executive components for use;

7、侧板面式安装，可直接与执行元件连接使用；

8. Equipped with a manual device for easy installation and debugging;

8、附设手动装置，利于安装调试；

9. There are multiple standard voltage levels available for selection.

9、有多种标准电压等级可供选用。

Categories

tel-phone

13817455525

DetailMessage

Model 型号	Z4M110-M5 Z4M120-M5	Z4M110-06 Z4M120-06	Z4M210-06 Z4M220-06		Z4M210-08 Z4M220-08		Z4M310-08 Z4M320-08	Z4M310-10 Z4M320-10
Working medium 工作介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Action mode 动作方式	Internal pilot type 内部先导式
Connecting pipe bore 接管口径	Inlet= Exhaust=M5 进气=排气=M5	Inlet= Exhaust= G1/8" 进气=排气=G1/8"	Inlet= Exhaust= G1/8" 进气=排气=G1/8"		Inlet= Exhaust= G1/8" 进气=排气=G1/8"		Inlet= Exhaust= G1/4" 进气=排气=G1/4"	Inlet=PT3/8" Exhaust= G1/4" 进气=PT3/8" 排气=G1/4"
Effective cross-sectional area 有效截面积	5.5mm² (Cv=0.31)	12.0mm² (Cv=0.67)	140mm² (Cv=0.78)		160mm² (Cv=0.89)		250mm² (Cv=1.40)	300mm² (Cy=168)
Number of positions 位置数	Five port two position 五口二位
Operating pressure range 使用压力范围	0.15~0.8MPa(21~114psi)
Ensure pressure resistance 保证耐压力	1.5MPa(215psi
Working temperature ℃ 工作温度℃	-20~70
Body material 本体材质	Aluminum alloy 铝合金
Lubrication 润滑	No need 不需要
*Maximum action frequency *最高动作频率	5 times/second 5次/秒					4 times/second 4次/秒
Weight 重量	Z4M110:120;Z4M120:175			Z4M210:220;Z4M220:320		Z4M310:320;Z4M320:400
