Model 型号 |

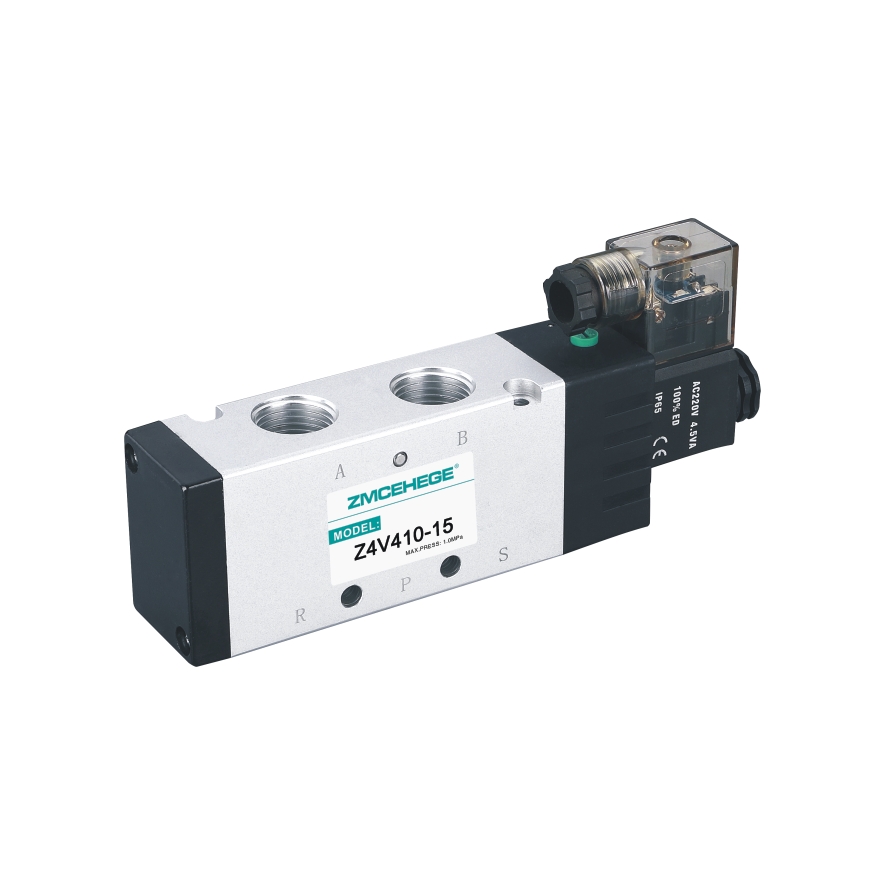

Z4V410-15 | Z4V420-15 | Z4V430C-15 | Z4V430E-15 | Z4V430P-15 | ||||
| Z4A410-15 | Z4A420-15 | Z4A430C-15 | Z4A430E-15 | Z4A430P-15 | |||||
|
Number of positions 位置数 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
|||||||
|
Effective cross-sectional area 有效截面积 |
50mm²(CV=2.79) | 30mm²(CV=1.68) | |||||||
|
Model 型号 |
Z3V410-15 | Z3V420-15 | Z3A410-15 | Z3A420-15 | |||||
|
Number of positions 位置数 |
Two-position three-way 二位三通 |
||||||||
|
Effective cross-sectional area 有效截面积 |
50mm²(CV=2.79) | ||||||||
|
Connecting pipe bore 接管口径 |
Inlet=outlet=exhaust=G1/2" 进气=出气=排气=G1/2" |
||||||||
|
Working medium 工作介质 |
Air filtered by 40 microns 经40微米过滤的空气 |
||||||||
|
Action mode 动作方式 |
Internal pilot type 内部先导式 |
||||||||
|
Operating pressure (kgt/cm²) 使用压力 |
0.15~0.8MPa | ||||||||
|
Maximum pressure resistance 最大耐压力 |
1.2MPa | ||||||||
|
Working temperature 工作温度 |
-20~70℃ | ||||||||
|
Voltage range 电压范围 |
±10% | ||||||||
|
Power consumption 耗电量 |
AC:3.5VA DC:3.0W | ||||||||
|
Insulation and protection level 绝缘性及防护等级 |
Class F, IP65 F级. IP65 |
||||||||
|
Wiring form 接线形式 |
Leading-out wire type or terminal type 出线式或端子式 |
||||||||
|
Maximum action frequency 最高动作频率 |
Five times per second 每秒五次 |
||||||||
|
Minimum excitation time 最短励磁时间 |
0.05 seconds 0.05秒 |
||||||||
