Model 型号 |

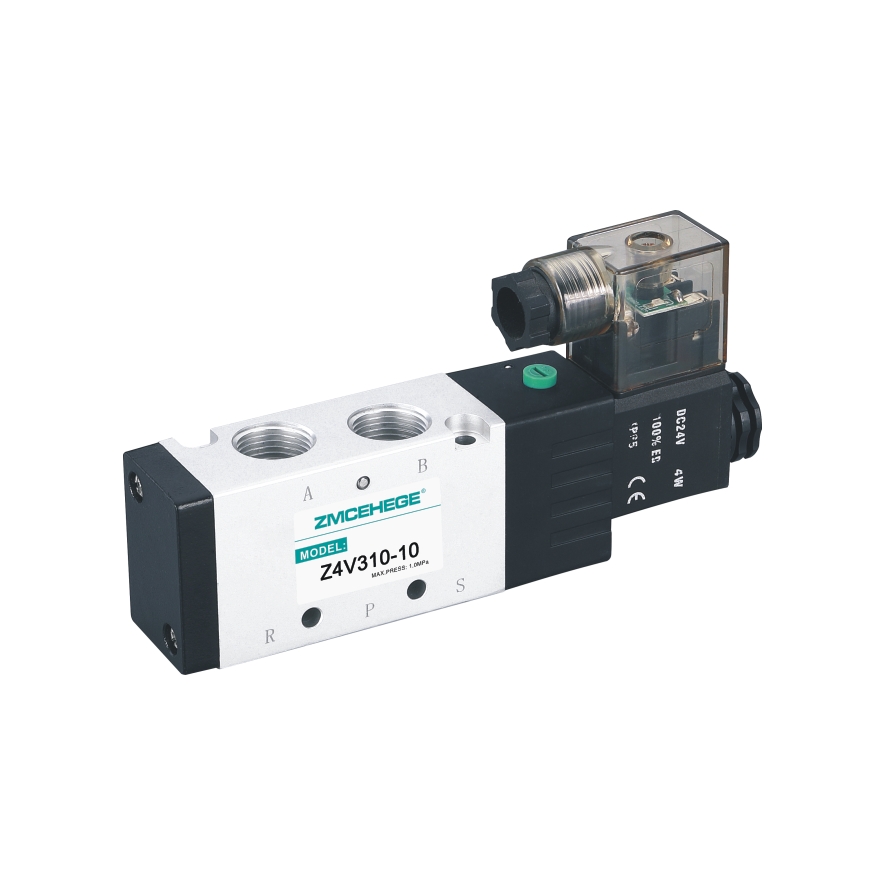

Z4V310-08 | Z4V320-08 | Z4V330C-08 | Z4V330E-08 | Z4V330P-08 | Z4V310-10 | Z4V320-10 | Z4V330C-10 | Z4V330E-10 | Z4V330P-10 | |||||||
| Z4A310-08 | Z4A320-08 | Z4A330C-08 | Z4A330E-08 | Z4A330P-08 | Z4A310-10 | Z4A320-10 | Z4A330C-10 | Z4A330E-10 | Z4A330P-10 | ||||||||
|
Number of positions 位置数 |
Two-position five-way二位五通 | Three-position five-way三位五通 | Two-position five-way二位五通 | Three-position five-way三位五通 | |||||||||||||
|
Effective cross-sectional area 有效截面积 |
25mm²(CV=1.40) | 18mm²(CV=1.00) | 30mm²(CV=1.68) | 18mm²(CV=1.00) | |||||||||||||
| 型号 | Z3V310-08 | Z3V320-08 | Z3A310-08 | Z3A320-08 | Z3V310-10 | Z3V320-10 | Z3A310-10 | Z3A320-10 | |||||||||
| 位置数 |
Two-position three-way 二位三通 |
||||||||||||||||
|
Effective cross-sectional area 有效截面积 |
25mm²(CV=1.40) | 30mm²(CV=1.68) | |||||||||||||||
|
Connecting pipe bore 接管口径 |
Inlet=outlet=exhaust=G1/4" 进气=出气=排气=G1/4" |
Inlet=outlet=G3/8" Exhaust=G1/4" 进气=出气=G3/8" 排气=G1/4" |
|||||||||||||||
|
Working medium 工作介质 |
Air filtered by 40 microns 经40微米过滤的空气 |
||||||||||||||||
|
Action mode 动作方式 |
Internal pilot type 内部先导式 |
||||||||||||||||
|
Operating pressure (kgt/cm²) 使用压力 |
0.15~0.8MPa | ||||||||||||||||
|
Maximum pressure resistance 最大耐压力 |
1.2MPa | ||||||||||||||||
|
Working temperature 工作温度 |
-20~70℃ | ||||||||||||||||
|
Voltage range 电压范围 |
±10% | ||||||||||||||||
|
Power consumption 耗电量 |
AC:3.5VA DC:3.0W | ||||||||||||||||
|
Insulation and protection level 绝缘性及防护等级 |
Class F, IP65 F级. IP65 |
||||||||||||||||
|
Wiring form 接线形式 |
Leading-out wire type or terminal type 出线式或端子式 |
||||||||||||||||
|
Maximum action frequency 最高动作频率 |
Five times per second 每秒五次 |
||||||||||||||||
|
Minimum excitation time 最短励磁时间 |
0.05 seconds 0.05秒 |
||||||||||||||||
