Model 型号 |

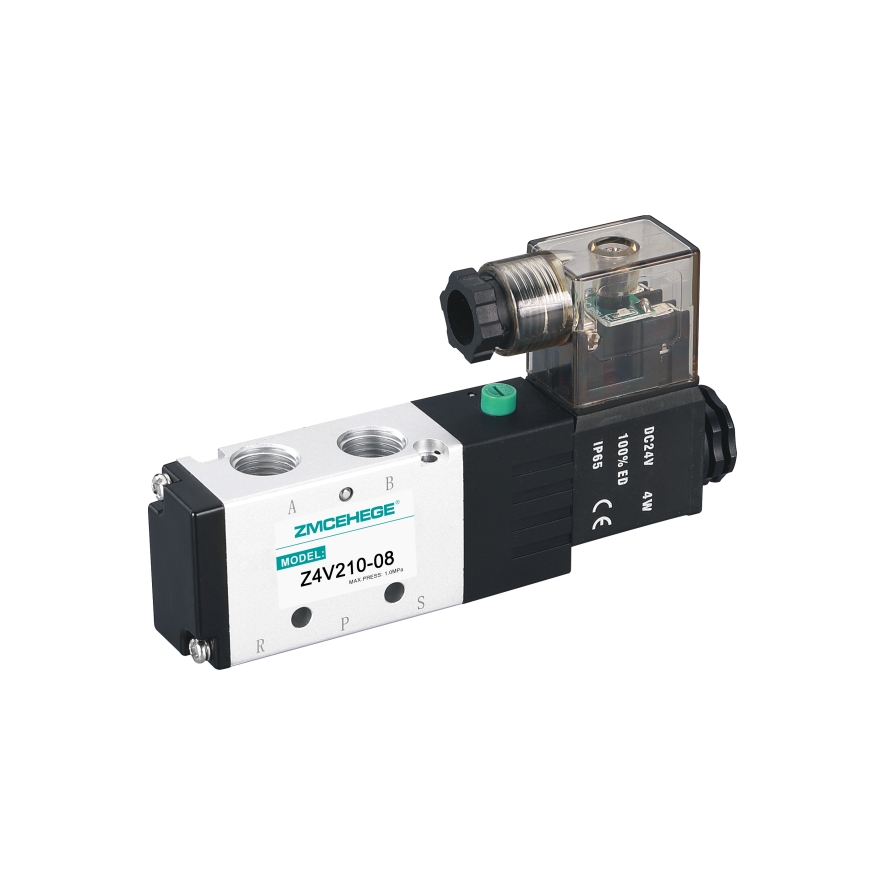

Z4V210-06 | Z4V220-06 | Z4V230C-06 | Z4V230E-06 | Z4V230P-06 | Z4V210-08 | Z4V220-08 | Z4V230C-08 | Z4V230E-08 | Z4V230P-08 | ||||||
| Z4A210-06 | Z4A220-06 | Z4A230C-06 | Z4A230E-06 | Z4A230P-06 | Z4A210-08 | Z4A220-08 | Z4A230C-08 | Z4A230E-08 | Z4A230P-08 | |||||||
|
Number of positions 位置数 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
||||||||||||
|
Effective cross-sectional area 有效截面积 |
14mm²(CV=0.78) | 12mm²(CV=0.67) | 16mm²(CV=0.89) | 12mm²(CV=0.67) | ||||||||||||
|
Model 型号 |
Z3V210-06 | Z3V220-06 | Z3A210-06 | Z3A220-06 | Z3V210-08 | Z3V220-08 | Z3A210-08 | Z3A220-08 | ||||||||
|
Number of positions 位置数 |
Two-position three-way 二位三通 |
|||||||||||||||
|
Effective cross-sectional area 有效截面积 |
14mm²(CV=0.78) | 16mm²(CV=0.89) | ||||||||||||||
|
Connecting pipe bore 接管口径 |
Inlet=outlet=exhaust=G1/8" 进气=出气=排气=G1/8" |
Inlet=outlet=G1/4" exhaust=G1/8" 进气=出气=G1/4" 排气=G1/8" |
||||||||||||||
|
Working medium 工作介质 |
Air filtered by 40 microns 经40微米过滤的空气 |
|||||||||||||||
|
Action mode 动作方式 |
Internal pilot type 内部先导式 |
|||||||||||||||
|
Operating pressure 使用压力 |
0.15~0.8MPa | |||||||||||||||
|
Maximum pressure resistance 最大耐压力 |
1.2MPa | |||||||||||||||
|
Working temperature 工作温度 |
-20~70℃ | |||||||||||||||
|
Voltage range 电压范围 |
±10% | |||||||||||||||
|
Power consumption 耗电量 |
AC:3.5VA DC:3.0W | |||||||||||||||
|
Insulation and protection level 绝缘性及防护等级 |
Class F, IP65 F级. IP65 |
|||||||||||||||
|
Wiring form 接线形式 |
Leading-out wire type or terminal type 出线式或端子式 |
|||||||||||||||
|
Maximum action frequency 最高动作频率 |
Five times per second 每秒五次 |
|||||||||||||||
|
Minimum excitation time 最短励磁时间 |
0.05 seconds 0.05秒 |
|||||||||||||||
