Model 型号 |

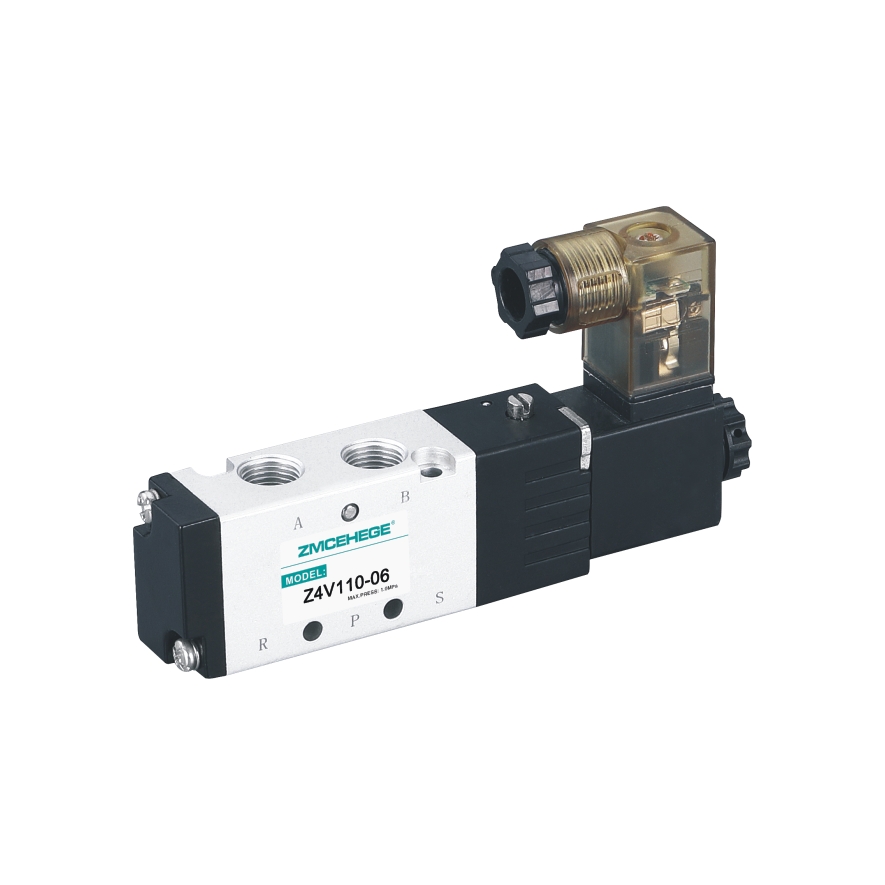

Z4V110-M5 | Z4V120-M5 | Z4V130C-M5 | Z4V130E-M5 | Z4V130P-M5 | Z4V110-06 | Z4V120-06 | Z4V130C-06 | Z4V130E-06 | Z4V130P-06 | ||||||
| Z4A110-M5 | Z4A120-M5 | Z4A130C-M5 | Z4A130E-M5 | Z4A130P-M5 | Z4A110-06 | Z4A120-06 | Z4A130C-06 | Z4A130E-06 | Z4A130P-06 | |||||||
|
Number of positions 位置数 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
||||||||||||
|
Effective cross-sectional area 有效截面积 |
10mm²(CV=0.56) | 7mm²(CV=0.40) | 12mm²(CV=0.67) | 9mm²(CV=0.5) | ||||||||||||
|
Model 型号 |
Z3V110-M5 | Z3V120-M5 | Z3A110-M5 | Z3A120-M5 | Z3V110-06 | Z3V120-06 | Z3A110-06 | Z3A120-06 | ||||||||
|
Number of positions 位置数 |
Two-position three-way 二位三通 |
|||||||||||||||
|
Effective cross-sectional area 有效截面积 |
10mm²(CV=0.56 | 12mm²(CV=0.67 | ||||||||||||||
|
Connecting pipe bore 接管口径 |
Inlet=outlet=exhaust=M5x0.8 进气=出气=排气=M5×0.8 |
Inlet=outlet=exhaust=G1/8" 进气=出气=排气=G1/8" |
||||||||||||||
|
Working medium 工作介质 |
Air filtered by 40 microns 经40微米过滤的空气 |
|||||||||||||||
|
Action mode 动作方式 |
Internal pilot type 内部先导式 |
|||||||||||||||
|
Operating pressure (kgt/cm²) 使用压力 |
0.15~0.8MPa | |||||||||||||||
|
Maximum pressure resistance 最大耐压力 |
1.2MPa | |||||||||||||||
|
Working temperature 工作温度 |
-20~70℃ | |||||||||||||||
|
Voltage range 电压范围 |
±10% | |||||||||||||||
|
Power consumption 耗电量 |
AC:2.5VA DC:2.5W | |||||||||||||||
|
Insulation and protection level 绝缘性及防护等级 |
Class F, IP65 F级. IP65 |
|||||||||||||||
|
Wiring form 接线形式 |
Leading-out wire type or terminal type 出线式或端子式 |
|||||||||||||||
|
Maximum action frequency 最高动作频率 |
Five times per second 每秒五次 |
|||||||||||||||
|
Minimum excitation time 最短励磁时间 |
0.05 seconds 0.05秒 |
|||||||||||||||
