Product Description
|
Model 型号 |

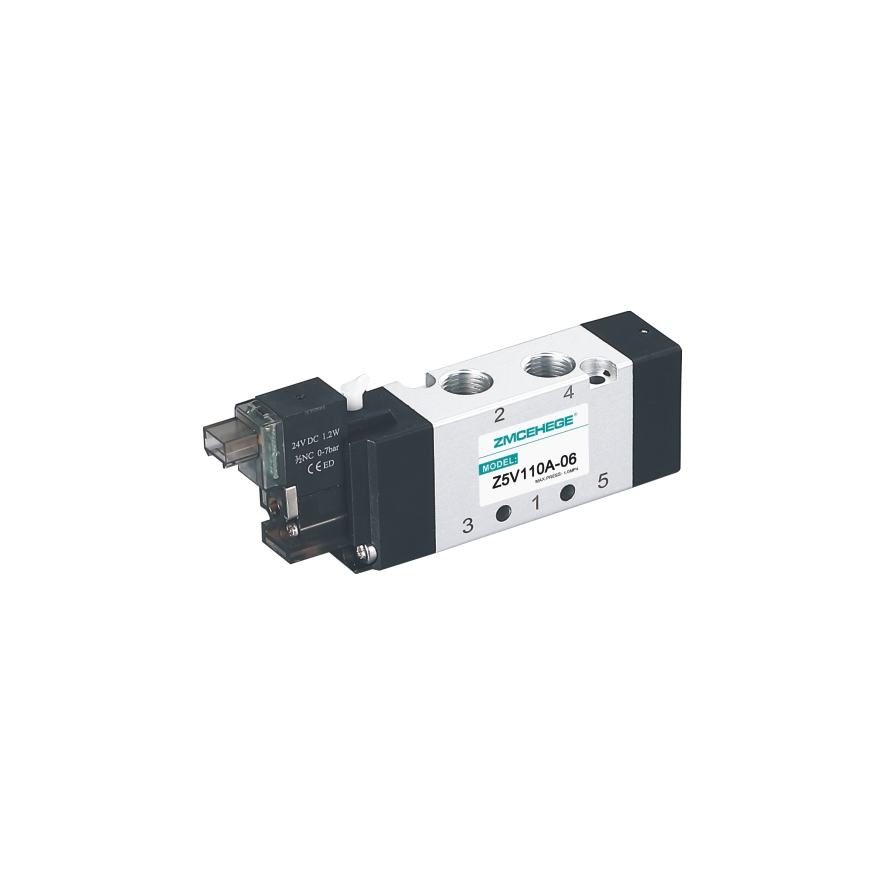

Z5V110A-M5 | Z5V120A-M5 | Z5V130A-M5C | Z5V130A-M5E | Z5V130A-M5P | 5ZV110A-06 | Z5V120A-06 | Z5V130A-06C | Z5V130A-06E | Z5V130A-06P | |||
|
Number of positions 位置数 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
|||||||||
|
Effective cross-sectional area 有效截面积 |
10mm³(CV=0.56) | 7mm²(CV=0.4) | 12mm²(CV=0.67) | 9mm³(CV=0.0.5) | |||||||||
|
Connecting pipe bore 接管口径 |
Inlet=outlet=exhaust=M5 进气=出气=排气=M5 |
Inlet=outlet=exhaust=G1/8 进气=出气=排气=G1/8 |
|||||||||||
| Model型号 | Z5V210A-06 | Z5V220A-06 | Z5V230A-06C | Z5V230A-06E | Z5V230A-06P | Z5V210A-08 | Z5V220A-08 | Z5V230A-08C | Z5V230A-08E | Z5V230A-08F | |||
|
Number of positions 位置数 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
Two-position five-way 二位五通 |
Three-position five-way 三位五通 |
|||||||||
|
Effective cross-sectional area 有效截面积 |
14mm²(CV=0.78) | 12mm²(CV=0.67) | 16mm²(CV=0.89) | 12mm²(CV=0.67) | |||||||||
|
Connecting pipe bore 接管口径 |
Inlet=outlet=exhaust=G1/8 进气=出气=排气=G1/8 |
Inlet=outlet=exhaust=G1/4 进气=出气=排气=G1/4 |
|||||||||||
|
Working medium 工作介质 |
Air filtered by 40 microns 经40微米过滤的空气 |
||||||||||||
|
Operating pressure 使用压力 |
0.15~0.7MPa | ||||||||||||
|
Maximum pressure resistance 最大耐压力 |
1MPa | ||||||||||||
|
Working temperature 工作温度 |
0~50℃ | ||||||||||||
|
Power consumption 耗电量 |
1.2W | ||||||||||||
|
Maximum action frequency 最高动作频率 |
Five times per second 每秒5次 |
||||||||||||
