控制元件

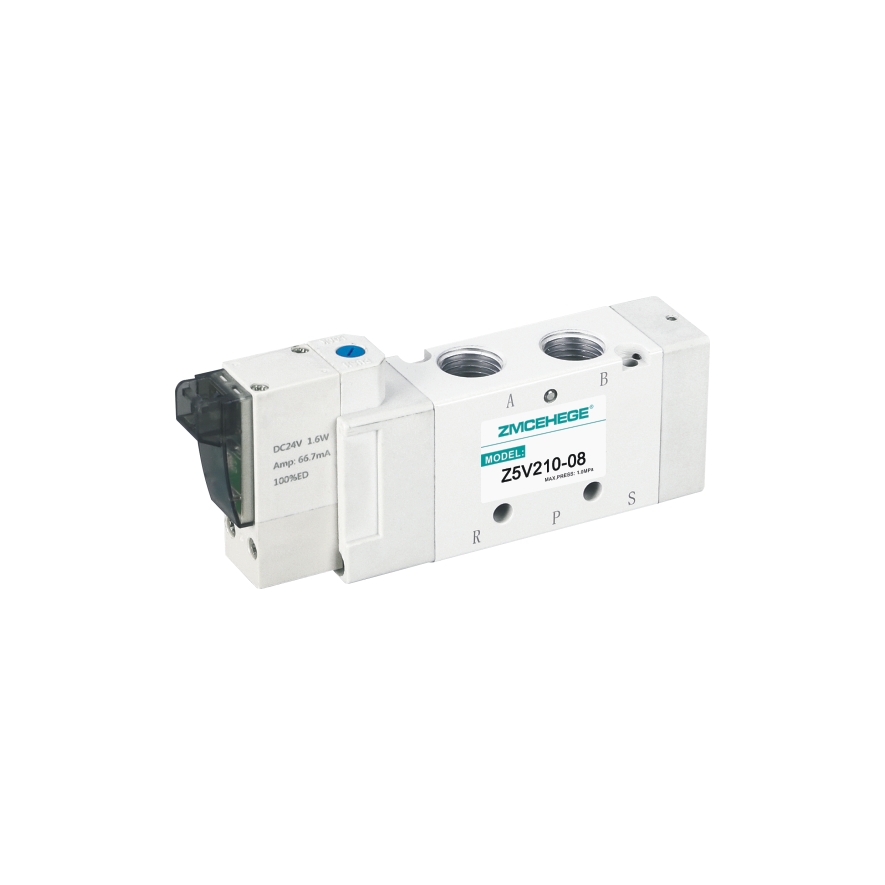

电磁阀

Product Description

1. Low power consumption, high working frequency, no need to add lubricating oil;

1、功耗低，工作频率高，无需加润滑油；

2. Terminal type power connection method, pilot air centralized internal discharge, suitable for pollution-free workplaces with special needs;

2、端子式接电方式，先导气流集中内排，适合无污染等有特殊需求的工作场所；

3. Sliding column structure, good sealing, sensitive response, with multiple standard voltage levels available for selection;

3、滑柱式结构，密封性好，反应灵敏，有多种标准电压等级可供选用；

4. The three position solenoid valve has three central functions to choose from, and the dual head two position solenoid valve has a memory function;

4、三位置电磁阀有三种中央功能可供选择，双头二位置电磁阀具有记忆功能；

5. The inner hole is processed using special technology, with low friction resistance, low starting air pressure, and long service life;

5、内孔采用特殊工艺加工，摩擦阻力小，启动气压低，使用寿命长；

6. It can be integrated with the base valve group to save installation space, and is equipped with a manual device for easy installation and debugging.

6、可与底座集成阀组，节省安装空间，附设手动装置，利于安装调试。

Categories

tel-phone

13817455525

DetailMessage

Model型号	Z5V110-M5		Z5V120-M5			Z5V130□-M5	Z5V10-06		Z5V120-06	Z5V130□-06
Connecting pipe bore[Note1] 接管口径[注1]	Inlet=outlet=exhaust=M5 进气=出气=排气=M5						Inlet=outlet=exhaust=PT1/8 进气=出气=排气=PT1/8
Effective cross-sectional area (Cv value)[Note4] 有效截面积 (Cv值)[注4]	Z5V110-06,Z5V120-06:10.2mm²(Cv=0.6) Z5V130C-06:8.6mm²(Cv=0.51)
Weight 重量(g)	120	175		200			120	175		200
Model型号	Z5V210-06	Z5V220-06		Z5V230□-06			Z5V210-08	Z5V220-08		Z5V230
Connecting pipe bore[Note1] 接管口径[注1]	Inlet=outlet=exhaust=PT1/8 进气=出气=排气=PT1/8						Inlet=outlet=PT1/4exhaust=PT1/8 进气=出气=PT1/4排气=PT1/8
Effective cross-sectional area (Cv value)[Note4] 有效截面积 (Cv值)[注4]	Z5V210-08,Z5V220-08:17.0mm²(Cv=1.0) Z5V230C-08:13.6mm²(Cv=0.8)
Weight 重量(g)	220	320			360		220	320		360
Model型号	Z5V310-08	Z5V320-08			Z5V330□-08		Z5V310-10	Z5V320-10		Z5V380□-10
Connecting pipe bore 接管口径	Inlet=outlet=exhaust=PT1/4 进气=出气=排气=PT1/4						Inlet=outlet=PT3/8exhaust=PT1/4 进气=出气=PT3/8排气=PT1/4
Effective cross-sectional area (Cv value)[Note4] 有效截面积 (Cv值)[注4]	Z5V310-10,Z5V320-10:31.5mm²(Cv=1.85) Z5V330C-10:23.0mm²(Cv=1.35)
Weight 重量(g)	310	400			450		310	400		450
Model型号	Z5V410-15	Z5V420-15			Z5V430□-15
Connecting pipe bore 接管口径	Inlet=outlet=exhaust=PT1/2 进气=出气=排气=PT1/2
Effective cross-sectional area (Cv value)[Note4] 有效截面积 (Cv值)[注4]	Z5V410-15:48.0mm²(Cv=2.82) Z5V420-15:48.0mm²(Cv=2.82) Z5V430C-15:40.0mm²(Cv=2.35)
Weight 重量(g)	590	720			770
Maximum action frequency[Note2] 最高动作频率[注2]	3 times/second 3次/秒				3 times/second 3次/秒
Number of positions 位置数	Five port two position 五口二位				Five port three position 五口三位		Five port two position 五口二位			Five port three position 五口三位
Working medium 工作介质	Passing through over 40μm filter 经40微米以上滤网过滤
Action mode 动作方式	Internal guided type 内部引导式
Operating pressure range 使用压力范围	0.15~0.8MPa(21~114psi)
Ensure pressure resistance 保证耐压力	1.2MPa(175psi)
Working temperature 工作温度	-20~70℃
Body material 本体材质	Aluminum alloy 铝合金
Lubrication[Note3] 润滑[注3]	No need 不需要

[Note1]Thread of connecting pipe has PT type for option.

[注1]接管牙型有PT牙可供选择。

[Note 2] If there is oil lubrication, it cannot be stopped midway. It is recommended to use ISO VG32 or the same grade of lubricating oil.

[注2]如有加油润滑，中途不可停止，建议润滑油为ISO VG32或同级用油。

[Note 3] Maximum action frequency is in the unloaded state.

[注3]最高作动频率为空载状态。

[Note 4] The effective cross-sectional area and Cv value are calculated based on the test flow rate data.

[注4]有效截面积和Cv值是依据测试流量数据计算得到。
