Inner diameter/ symbol 内径/符号 |
A | B | C | E | F | G | K | KA | L | M | Q | R | S | W | X | Y |
| Z4V-100M-□F | 58 | 43 | 20 | 4.2 | 18.3 | 19 | 140 | (n-1)*19+28 | (n-1)19+38 | 155 | G1/4 | 40 | 30 | 78.5 | 25 | 27 |
| Z4V-200M-□F | 59 | 50 | 21 | 4.3 | 22.2 | 23 | 170 | (n-1)*23+34 | (n-1)*23+46 | 189 | G1/4 | 43 | 32 | 92.5 | 26 | 35 |
| Z4V-300M-□F | 75 | 64 | 26 | 4.5 | 27.3 | 27 | 189 | (n-1)*28+42 | (n-1)*28+54 | 208 | G3/8 | 53 | 48 | 99 | 30 | 40 |
| Z4V-400M-□F | 98 | 94 | 32 | 5.5 | 34.3 | 31.5 | 222 | (n-1)*35+49 | (n-1)35+63 | 243 | G1/2 | 68 | 67 | 112 | 38 | 50 |
|

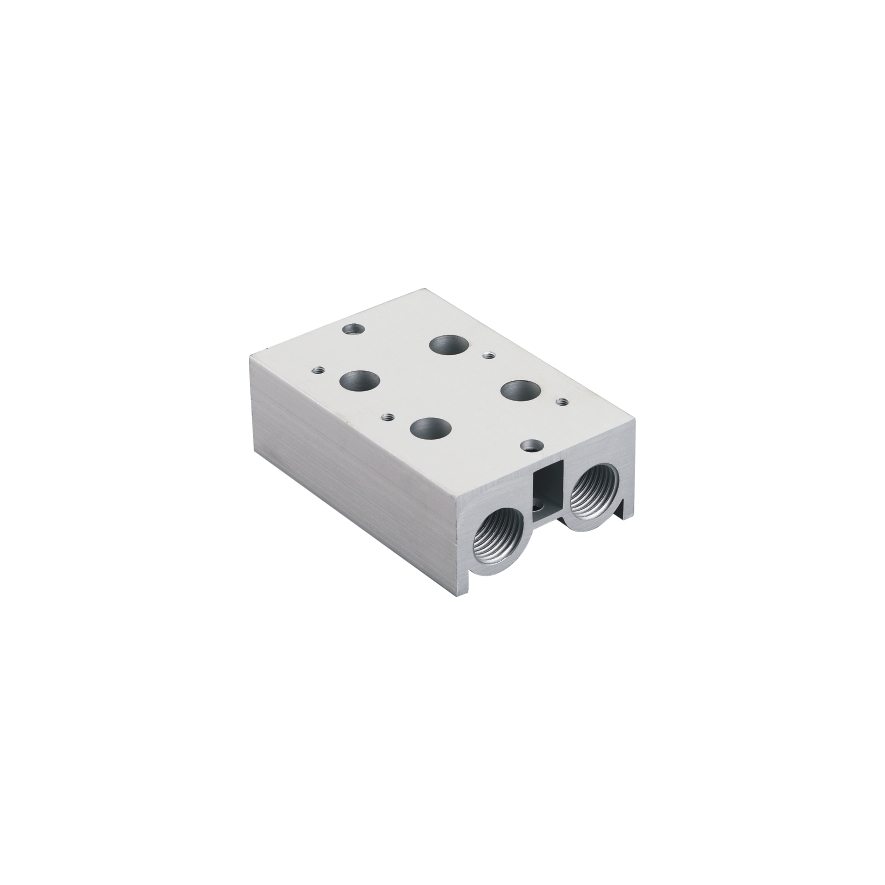

Inner diameter/ symbol 内径/符号 |
A | B | E | F | G | H | KA | L | M | Q | R | S | W | X | Y |
| Z3V-100M-□F | 31 | 30 | 4.5 | 18 | 18.5 | 4.5 | (n-1)*19+28 | (n-1)*19+37 | 130.8 | G1/8 | 17.5 | 25 | 72.8 | 19 | 27 |
| Z3V-200M-□F | 45 | 43 | 4.5 | 22 | 23 | 6 | (n-1)*23+34 | (n-1)*23+46 | 163.4 | G1/4 | 23 | 37 | 90.9 | 24 | 35 |
| Z3V-300M-□F | 50 | 47 | 4.5 | 27 | 27 | 6 | (n-1)*28+42 | (n-1)*28+54 | 190.5 | G3/8 | 29 | 42 | 97.4 | 28 | 40 |
| Z3V-400M-□F | 62.5 | 62.5 | 5.5 | 34 | 31.5 | 7 | (n-1)*35+49 | (n-1)*35+63 | 191.9 | G1/2 | 35.5 | 51.5 | 109.4 | 35 | 50 |
