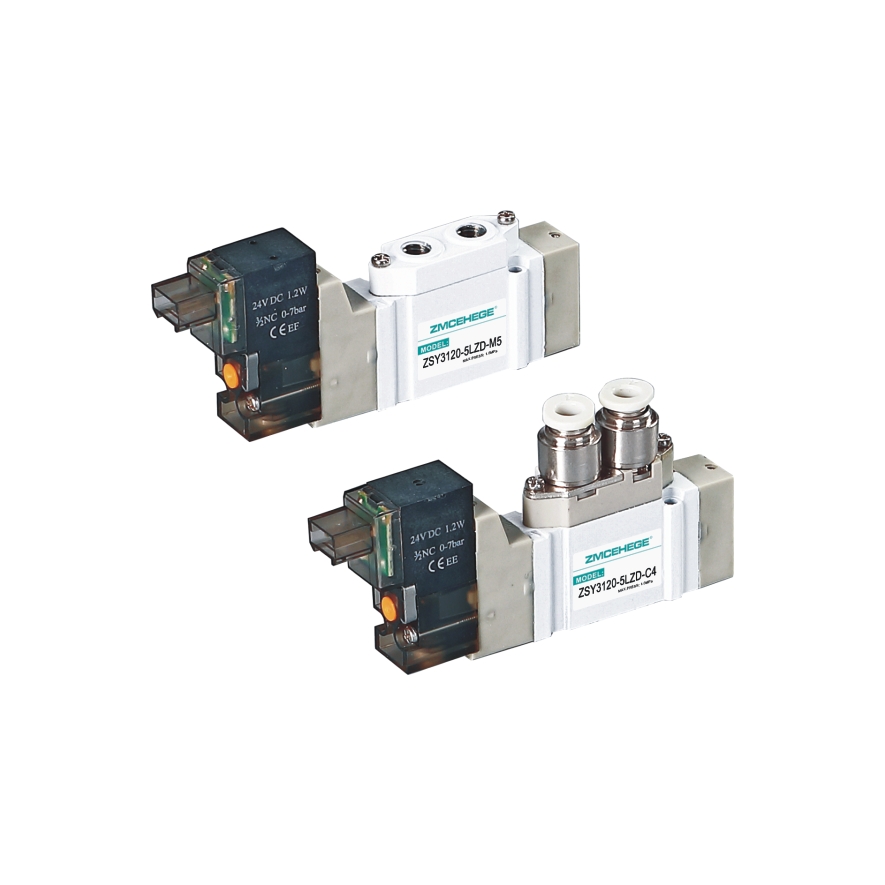

电磁阀

Product Description

● High performance: design life >50 million times, super stability;

●高性能：设计寿命>5000万次，超强稳定性；

● Low energy consumption: 1.2/0.8/0.3W energy-saving design, can be driven directly by PLC

●低耗能：1.2/0.8/0.3W的节能设计，可由PLC直接驱动；

● Environment-friendly: The novel internal discharge structure design is pollution-free to the atmosphere;

●环境友好：新颖的内排式结构设计对大气无污染；

● Easy to operate: Convenient wiring method, saving wiring time

●易操作：便捷的接线方式，省去接线工时；

● Space saving: large flow rate design and compact design

●省空间：大流量设计且巧紧凑。

Categories

tel-phone

13817455525

DetailMessage

Model 型号	3120-M5	3220-M5	3320-M5	3420-M5	3520-M5
Function机能	Two-position five-way single electronic control 二位五通单电控	Two-position five-way dual electronic control 二位五通双电控	Three-position five-way middle sealed type 三位五通中封式	Three-position five-way middle relief type 三位五通中泄式	Three-position five-way middle pressure type 三位五通中压式
Cv value(P-A/B) Cv值(P-A/B)	0.25		0.19		0.30
Cv value(A/B-R/S) Cv值(A/B-R/S)	0.27		0.20	0.25
Connecting pipe bore 接管口径	M5
Operating pressure range 使用压力范围	0.15~0.7MPa		0.2~0.7MPa
Working medium 工作介质	Compressed air 压缩空气
Action mode 动作方式	Internal pilot type 内部先导式
Maximum action frequency 最大动作频率	15 times/second 15次/秒		5 times/second 5次/秒
Response time(ms) 响应时间(ms)	Below 12 12以下		Below 15 15以下
Lubrication 润滑	Without oil supply 不给油
Medium temperature 介质温度	-5~+60°C(not frozen) -5~+60℃(不冻结)
