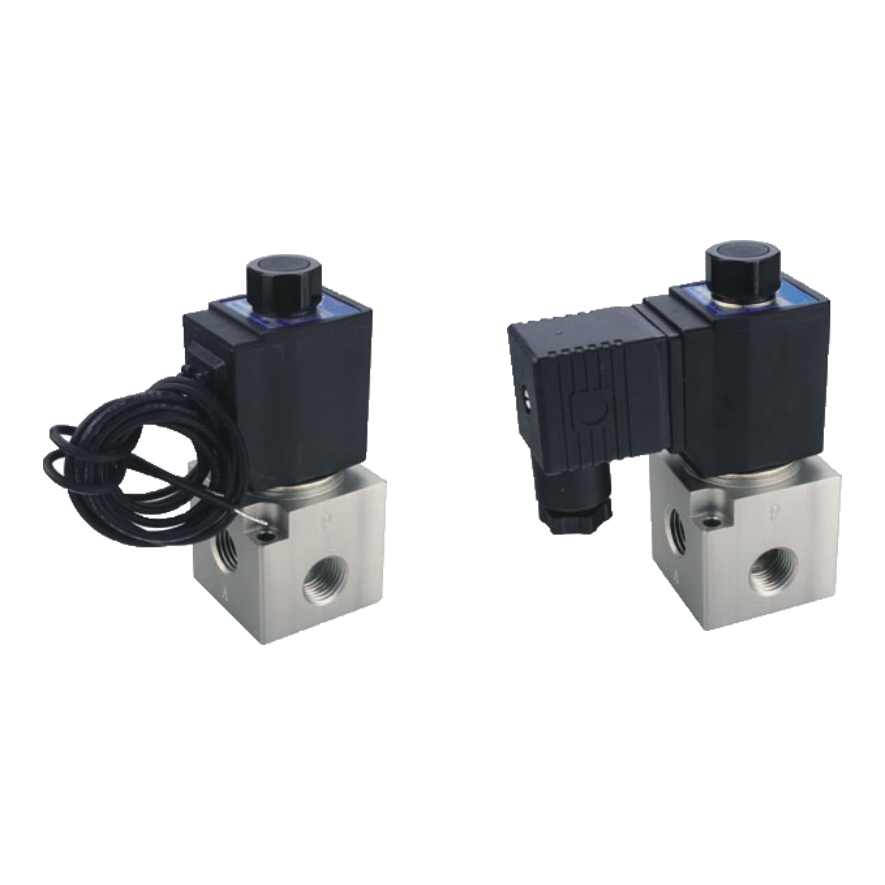

电磁阀

Product Description

1. Direct acting structure, sensitive commutation;

1、直动式结构，换向灵敏；

2. Normally closed type and normally open type optional;

2、常闭型和常开型可选；

3. Coaxial cut-off structure, good sealing performance, and large flow rate;

3、同轴截止式结构，密封性好，流量大；

4. No need for oil lubrication;

4、无需加油润滑；

5. Equipped with a manual device for easy installation and debugging;

5、附设手动装置，利于安装调试；

6. Multiple standard voltage levels are available for selection.

6、多种标准电压等级可供选用。

Categories

tel-phone

13817455525

DetailMessage

Model 型号	Z3V308
Working medium 工作介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Action mode 动作方式	Direct action type 直动式
Connecting pipe bore 接管口径①	PT1/4
Number of positions 位置数	Three-port two-position 三口二位
Effective cross-sectional area 有效截面积	11mm²(Cv=0.62)
Lubrication 润滑	No need 不需要
Operating pressure range 使用压力范围	0~0.8MPa(0~114psi)
Ensure pressure resistance 保证耐压力	1.5MPa(215psi)
Working temperature°C 工作温度°C	-20~70
Body material 本体材质	Aluminum alloy 铝合金

Item 项目	Specific parameters 具体参数
Standard voltage 标准电压	AC220V、AC110V、AC24V、DC24V、DC12V
Using voltage range 使用电压范围	AC:±15% DC:±10%
Power consumption 耗电量	AC:10VA DC:6.5W
Protection level 保护等级	IP65(DIN40050)
Heat resistance grade 耐热等级	B-level B级
Power connection form 接电形式	DIN socket type, Leading-out wire type DIN插座式、出线式
Excitation time 励磁时间	Below 0.05 seconds 0.05秒以下
Maximum action frequency 最高动作频率①	10 times/second 10次/秒
