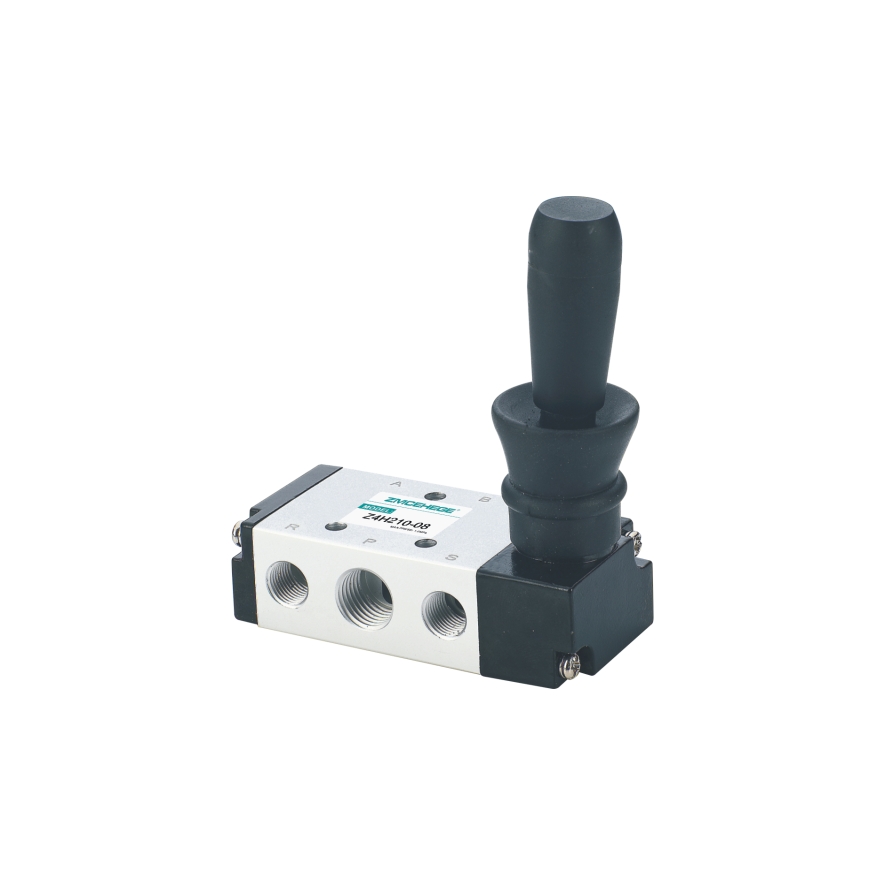

手扳阀

Product Description

1. New processing technology, the internal hole roughness of the valve body is improved.

1.全新加工工艺，阀体内孔粗糙度提升。

2. The handle base is made of high-strength plastic to beautify its appearance.

2.手柄座采用高强度塑料，美化其外观。

3. Adopting imported high standard special lubricating grease to effectively form a protective film and reduce wear.

3.采用进口高标特种润滑脂，有效形成保护膜，降低磨损。

4. The valve core adopts imported sealing components to increase its service life.

4.阀芯采用进口密封件，增加其使用寿命。

Categories

tel-phone

13817455525

DetailMessage

Model 型号	Z4H210-06	Z4H210-08	Z4H230-08	Z4H310-08	Z4H310-10	Z4H330-10	Z4H410-15	Z4H430-15
Working medium 工作介质	Air filtered by 40 microns 经40微米过滤的空气
Action mode 动作方式	Direct action type 直动式
Effective cross-sectional area 有效截面积	14mm² (CV=0.78)	16mm² (CV=0.89)	12mm² (CV=0.67)	25mm² (CV=1.4)	30mm² (CV=1.68)	18mm² (CV=1.00)	50mm² (CV=2.79)	30mm² (CV=1.68)
Connecting pipe bore 接管口径	Inlet= Outlet= Exhaust= G1/8" 进气=出气=排气=G1/8"	Inlet= outlet= G1/4" Exhaust= G1/8" 进气=出气=G1/4" 排气=G1/8"	Inlet= Exhaust= Outlet= G1/4" 进气= 排气= 出气= G1/4"	Inlet= Exhaust= Outlet= G1/4" 进气=排气=出气=G1/4"	Inlet=Outlet=G3/8" Exhaust=G1/4" 进气=出气=G3/8" 排气=G1/4"		Inlet=Outlet=Exhaust= G1/2" 进气=出气=排气=G1/2"
Operating pressure range 使用压力范围	0~0.8MPa
Operating temperature range 使用温度范围	-20~70℃
