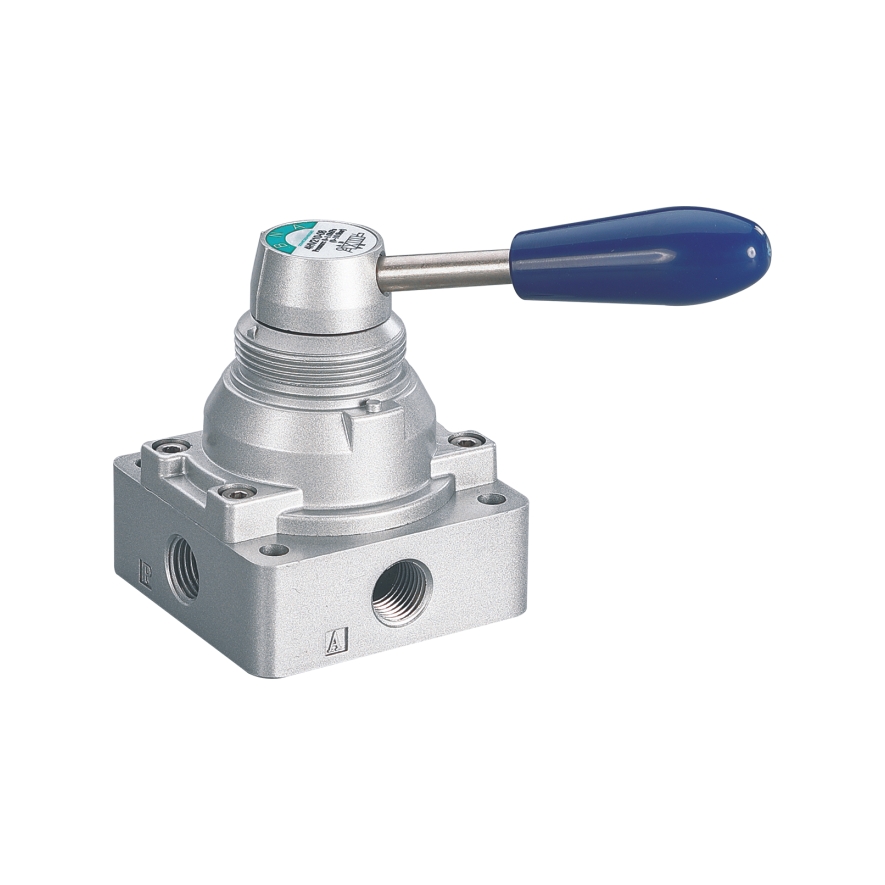

Model 型号 |
Z4HV2□□□-06 | Z4HV2□□□-08 | Z4HV3□□□-08 | Z4HV3□□□-10 | Z4HV4□□□-15 | Z4HV4□□□-20 |
|
Working medium 工作介质 |
Air filtered by 40 microns 经40微米过滤的空气 |
|||||
|
Port caliber 接口口径 |
G1/8" | G1/4" | G1/4" | G3/8" | G1/2" | G3/4" |
|
Maximum operating pressure 最高使用压力 |
1.0 MPa | |||||
|
Ensure pressure resistance 保证耐压力 |
1.2 MPa | |||||
|
Operating temperature range 使用温度范围 |
-20~70℃ | |||||
|
Working Angle 工作角度 |
90 | |||||
