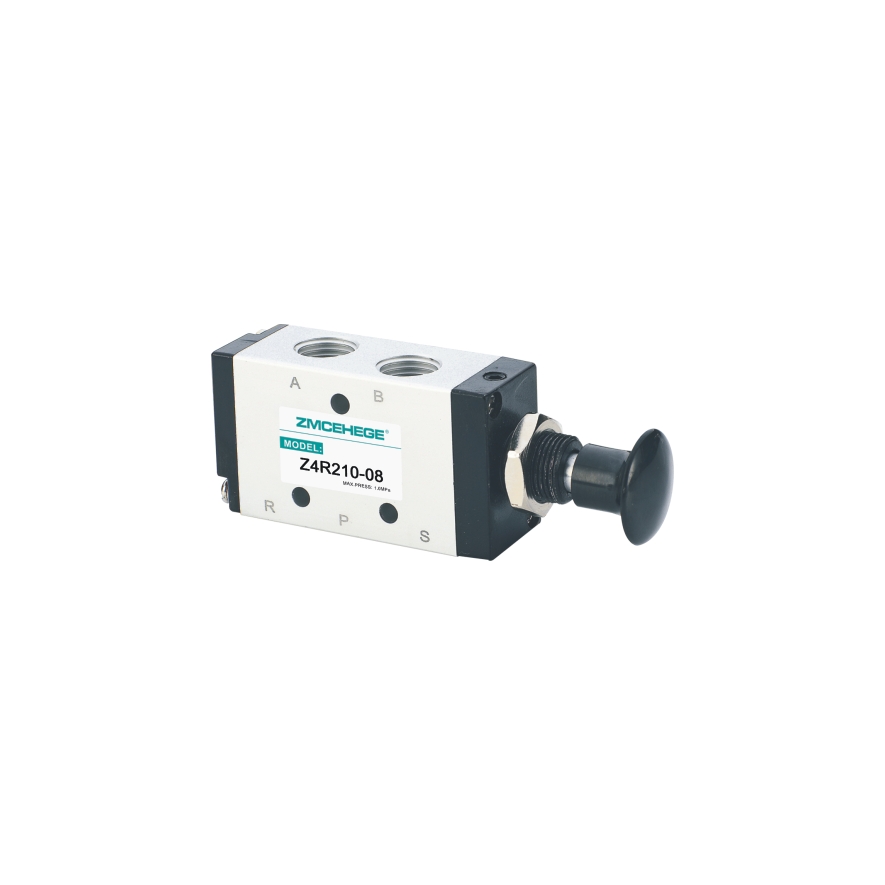

手拉阀

Product Description

1. New processing technology, the internal hole roughness of the valve body is improved.

1.全新加工工艺，阀体内孔粗糙度提升。

2. New visual design, synchronized with world leading products.

2.全新视觉造型，与世界领先产品同步接轨。

3. Adopting imported high standard special lubricating grease to effectively form a protective film and reduce wear.

3.采用进口高标特种润滑脂，有效形成保护膜，降低磨损。

4. The valve core adopts imported sealing components to increase its service life.

4.阀芯采用进口密封件，增加其使用寿命。

Categories

tel-phone

13817455525

DetailMessage

Model 型号	Z4R110-06	Z3R110-06	Z4R210-06	Z4R210-08	Z3R210-06	Z3R210-08	Z4R310-08	Z4R310-10	Z3R310-08	Z3R310-10
Working medium 工作介质	Air filtered by 40 microns 经40微米过滤的空气
Port Caliber 接口口径	Inlet=outlet=exhaust=G1/8" 进气=出气=排气=G1/8"			Inlet=outlet =G1/4" Exhaust =G1/8" 进气=出气 =G1/4" 排气=G1/8"	Inlet=outlet=exhaust=G1/8" 进气=出气=排气=G1/8"	Inlet=outlet=exhaust=G1/4" 进气=出气=排气=G1/4"	Inlet=outlet=exhaust=G1/4" 进气=出气=排气=G1/4"	Inlet=outlet =G3/8" Exhaust =G1/4" 进气=出气 =G3/8" 排气=G1/4"	Inlet=outlet=exhaust=G1/4" 进气=出气=排气=G1/4"	Inlet=outlet=exhaust= G3/8" 进气=出气=排气=G3/8"
Effective cross-sectional area 有效截面积	10mm² (CV=0.56)		14mm² (CV=0.78	16mm² (CV=0.89)	14mm² (CV=0.78)	16mm² (CV=0.89)	25mm² (CV=1.40)	30mm² (CV=1.68)	25mm² (CV=1.40)	30mm² (CV=1.68)
Operating pressure range 使用压力范围	0~0.8MPa
Operating temperature range 使用温度范围	-20~70℃
Position number 位通数	Two- position five-way 二位五通	Two- position three-way 二位三通	Two-position five-way 二位五通		Two-position five-way 二位三通		Two-position five-way 二位五通		Two-position five-way 二位三通
