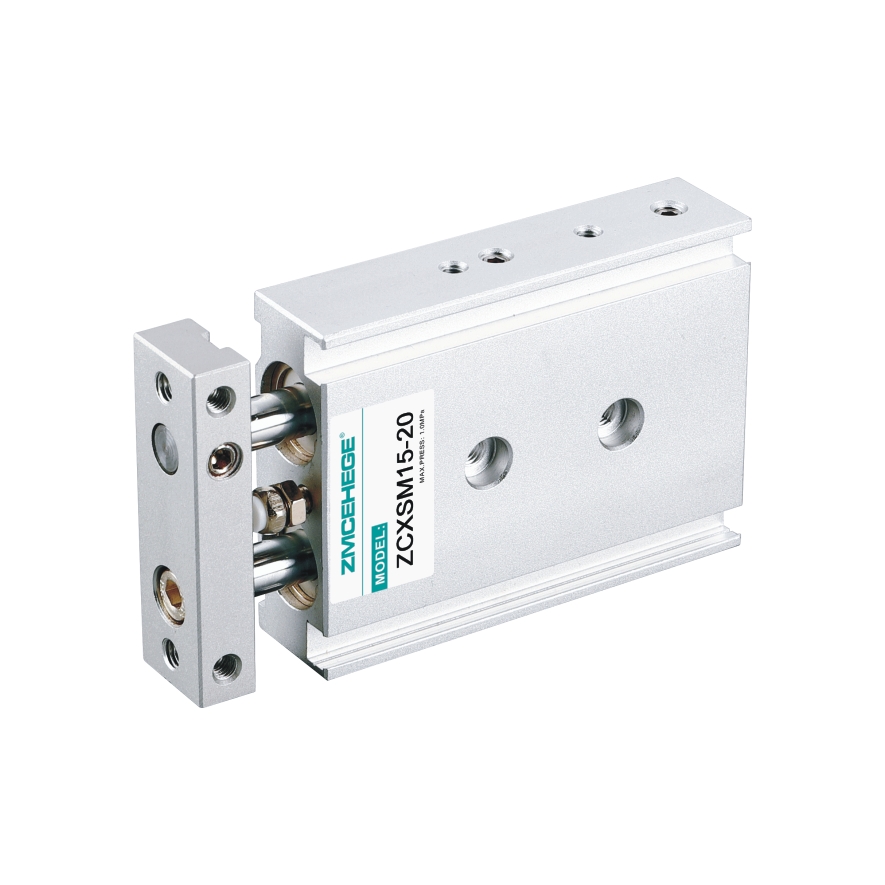

Product Description
|
Cylinder bore(mm) 缸径(mm) |
6 | 10 | 15 | 20 | 25 | 32 | |
|
Fluid 流体 |
Air 空气 |
||||||
|
Action mode 动作方式 |
Double action 双作用 |
||||||
|
Maximum operating pressure 最高使用压力MPa |
0.7 | ||||||
|
Minimum operating pressure 最低使用压力MPa |
0.15 | 0.1 | 0.05 | ||||
|
Environment and fluid temperature 环境和流体温度 |
-10~+60℃(but not frozen) -10~+60℃(但未冻结) |
||||||
|
Buffer 缓冲 |
Rubber buffer at both ends 两端橡胶缓冲 |
||||||
|
Piston speed used mm/s 使用活塞速度mm/s |
30~300 | 30~800 | 30~700 | 30~600 | |||
|
Structure 结构 |
Double cylinder (2 times output force) 双气缸(2倍输出力) |
||||||
|
*Lubrication *润滑 |
No need 不需要 |
||||||
|
Stroke adjustment range 行程调整范围 |
Retraction stroke0~-5mm 缩回行程0~-5mm |
||||||
|
Bearing 轴承 |
Sliding bearing/ball bearing 滑动轴承/球轴承 |
||||||
|
Precision of piston rod non-rotating 活塞杆不回转精度 |
Sliding bearing 滑动轴承 |
±0.1° | |||||
|
Ball bearing 球轴承 |
±0.1° | ||||||
|
Connecting pipe bore Rc 接管口径Rc |
M5×0.8 | 1/8 | |||||
