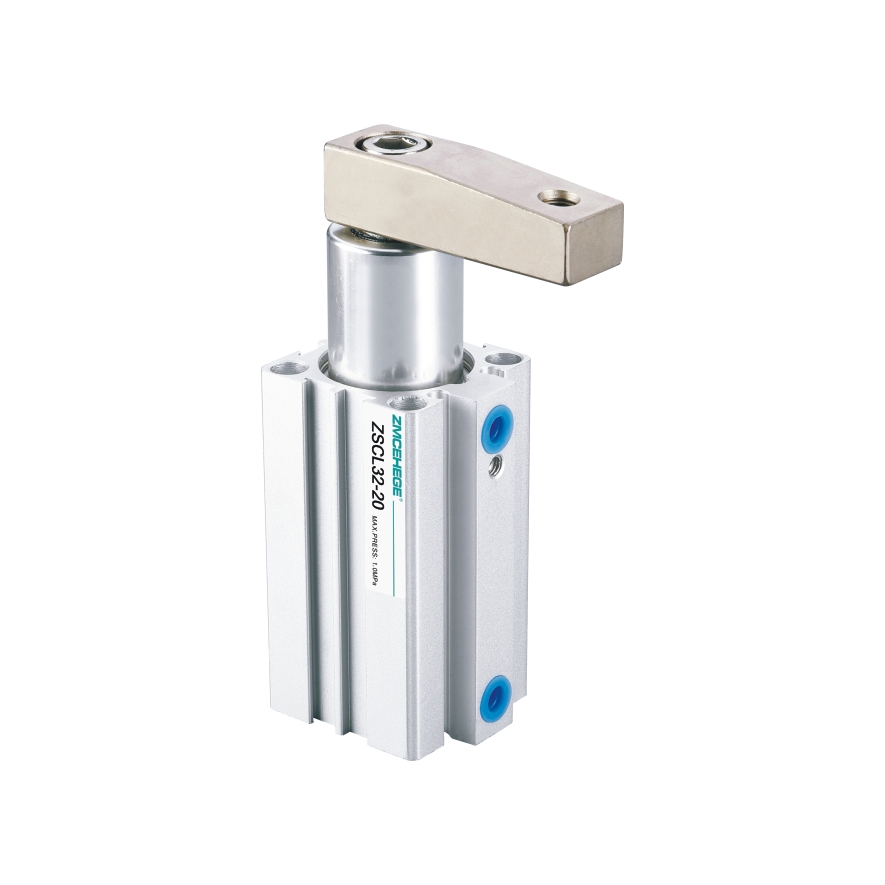

product系列.jpg)
|
Cylinder bore 缸径 |
φ12 | φ16 | ①20 | φ25 | φ32 | φ40 | φ50 | φ63 | ||
|
Form of action 作用形式 |
Double action type 复动型 |
|||||||||
|
Using fluid 使用流体 |
Air 空气 |
|||||||||
|
Operating pressure range 使用压力范围kgt/cm²(kpa) |
1.5~9.5(150~950) | |||||||||
|
Operating temperature range℃ 使用温度℃ |
0~60℃ | |||||||||
|
Operating speed rangemm/sec 使用速度mm/sec |
30~500 | |||||||||
|
Rotary stroke 回转行程mm |
7 | 10 | 15 | 19 | ||||||
|
Downward stroke 下压行程mm |
10,20 | 10,20 | 10,20 | 25,50 | ||||||
|
Rotation angle 旋转角度 |
90°±10° | |||||||||
|
Rotation direction 旋转方向 |
Turn left (from right to left) - L; Right turn (from left to right) – R 左转(由右向左)-L；右转(由左向右)-R |
|||||||||
|
Buffer device 缓冲装置 |
Rubber gasket buffering 橡胶垫片缓冲 |
|||||||||
|
Lubrication 润滑 |
Free supply mode 自由供给方式 |
|||||||||
|
Caliber 口径 |
M5x0.8P | Rc 1/8 | Rc 1/4 | |||||||
| Magnet device磁石装置 |
With magnet 附磁石 |
|||||||||
