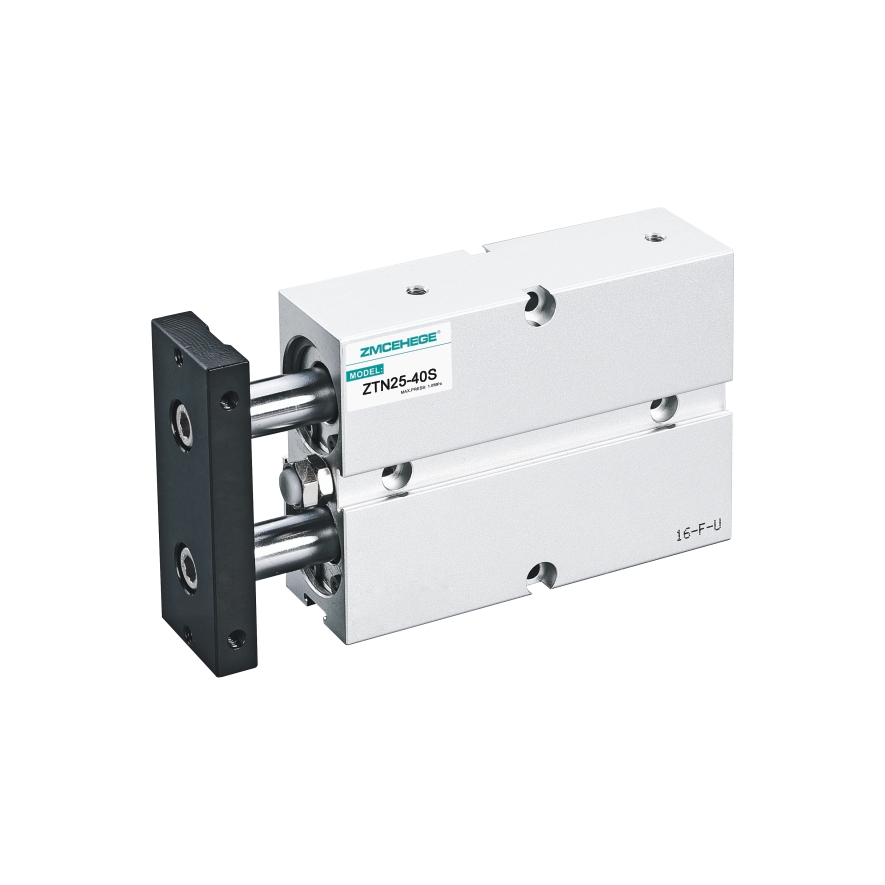

双轴气缸

Product Description

1. Implement enterprise standards;

1、执行企业标准；

2. Embedded body installation and fixing form, saving installation space;

2、埋入式本体安装固定形式，节省安装空间；

3. Has certain resistance to bending and torsion, and can withstand certain lateral loads;

3、具有一定的抗弯曲及抗扭转性能，能承受一定的侧向负载；

4. The fixing plate has installation holes on all three sides, making it easy to load in multiple positions;

4、固定板三面均有安装孔，便于多位置加载；

5. The front end anti-collision pad of the body can adjust the cylinder stroke and alleviate impact;

5、本体前端防撞垫可调整气缸行程，并缓解冲击；

6. The standard configuration of this series of cylinders is magnetic type, and non magnetic types are optional.

6、本系列气缸标准配置为附磁型，无不附磁型可选。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)	10	16		20		25		32
Action type 动作型式	Double action type 复动型
Working medium 工作介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	0.15~1.0MPa(22~145Psi)
Ensure pressure resistance 保证耐压力	1.5MPa(215Psi)
Operating temperature range 使用温度范围	-20~70
Operating speed range 使用速度范围	30~500
Adjustment stroke mm 调整行程mm	-10~0
Stroke tolerance range 行程公差范围	≤100		+1.0 0		>100		+1.5 0
Buffering type 缓冲型式	Anti-collision pad 防撞垫
Non-rotating precision 不回转精度	±0.4°	±0.3°
Connecting pipe bore 接管口径	M5×0.8					PT1/8
