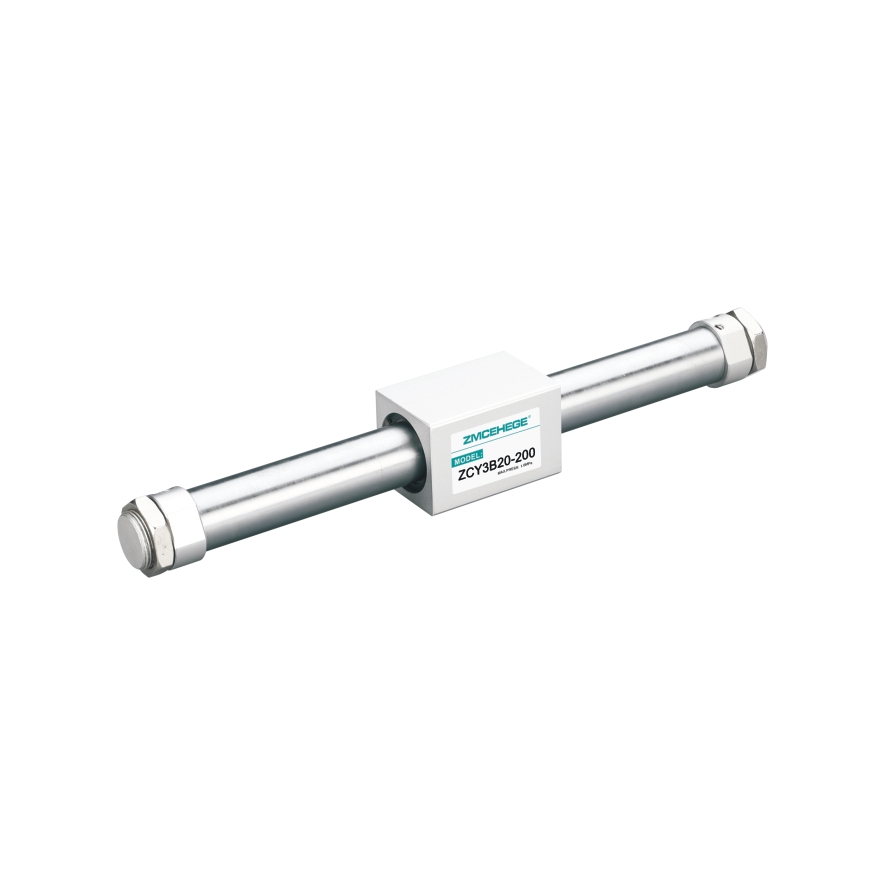

磁偶式无杆气缸

Product Description

※ The wear-resistant ring has increased by 70% compared to the ZCY1B series, thus improving the bearing capacity of the shaft.

※耐磨环比ZCY1B系列增长70%，故轴的承受能力提高。

The wear-resistant ring made of special resin has improved lubrication performance, so the durability is improved.

※使用了特殊树脂的耐磨环，润滑性能改善，故耐久性提高。

※ Using a special dust ring, the minimum operating pressure is reduced by 30%.

※使用特殊防尘圈，最小使用压力降低30%。

※ The installation dimensions are the same as those of the ZCY1B/R series.

※安装尺寸与ZCY1B/R系列相同

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore(mm) 缸径(mm)	15	20			25			32		40
Using fluid 使用流体	Air (without oil supply) 空气(不给油)
Maximum operating pressure 最高使用压力MPa	0.7
Minimum operating pressure 最低使用压力MPa	0.16				0.15			0.14		0.12
Environment and fluid temperature 环境及流体温度	-10~+60℃(but not frozen) -10~+60℃(但未冻结)
Piston speedmm/s 活塞速度mm/s	ZCY3B:50~400; ZCY3R:50~500
Buffer 缓冲	Cushion buffering at both ends 两端垫缓冲
Stroke length tolerance 行程长度允差mm	0~250		+1.0 0	, 251~1000		+1.4 0	, 1001~		+1.8 0
Magnetic retention force N 磁性保持力N	137	231			363			588		922
Pipe through-hole 配管通口	M5×0.8	Rc1/8·NPT1/8·G1/8
