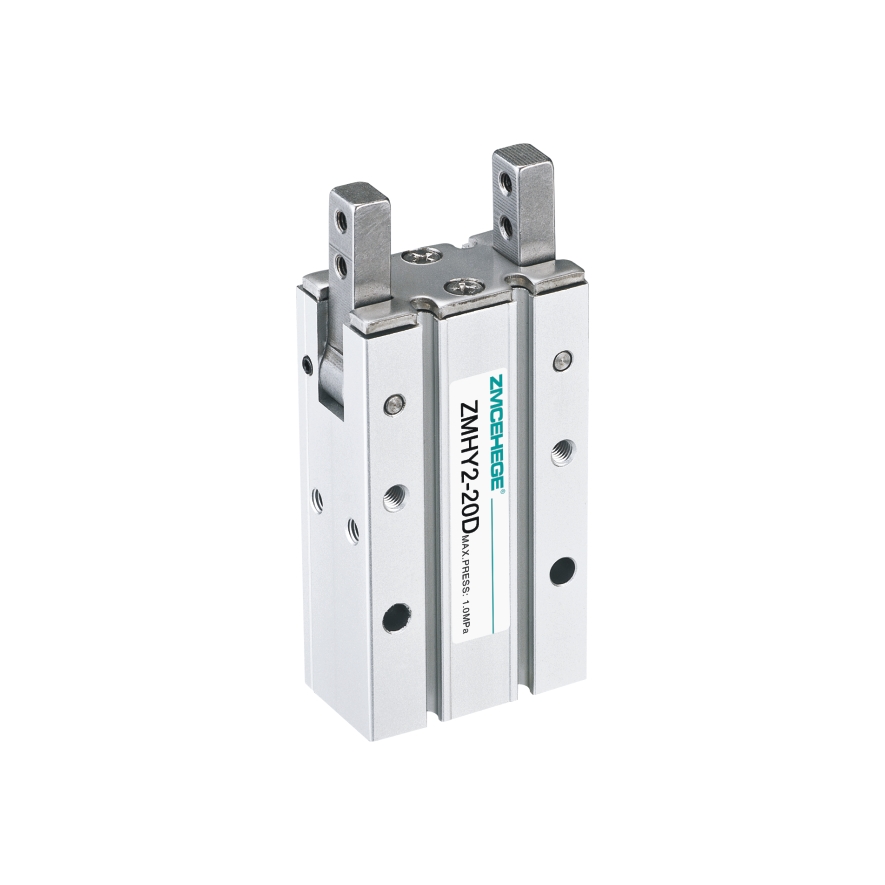

气爪(支点开闭型)/凸轮式180°开闭

Product Description

*Built in magnetic ring type, magnetic switch can be installed.

*内置磁环型，可安装磁性开关。

*180° opening and closing, simplify the pick-and-place action.

*180开闭式，简化拾放动作

*Suitable for use in special environments, the finger opening and closing parts are specially designed to prevent small objects from entering.

*可适合特殊环境下使用，手指开闭部分特别设计，可防止微小物件进入

*Easy to install, with positioning holes.

*安装方便，附有定位孔。

Categories

tel-phone

13817455525

DetailMessage

Model 型号	ZMHY2-10D	ZMHY2-16D	ZMHY2-20D	ZMHY2-25D
Using fluid 使用流体	Air 空气
Action type 动作型式	Double action 双作用
Maximum operating pressure Mpa 最高使用压力Mpa	0.6
Minimum operating pressure Mpa 最低使用压力MPa	0.1
Environment and fluid temperature 环境和流体温度	-10~60℃
Maximum action frequency 最高动作频率	60c.p.m
Pepetition accuracy 重复精度	±0.2mm
Note1)Clamping torque (N·m) 注1)夹持力矩N·m	0.16	0.54	1.10	2.28
Note1) Lubrication 注2)润滑	No need 不需要
Connecting pipe bore 接管口径	M5×0.8
