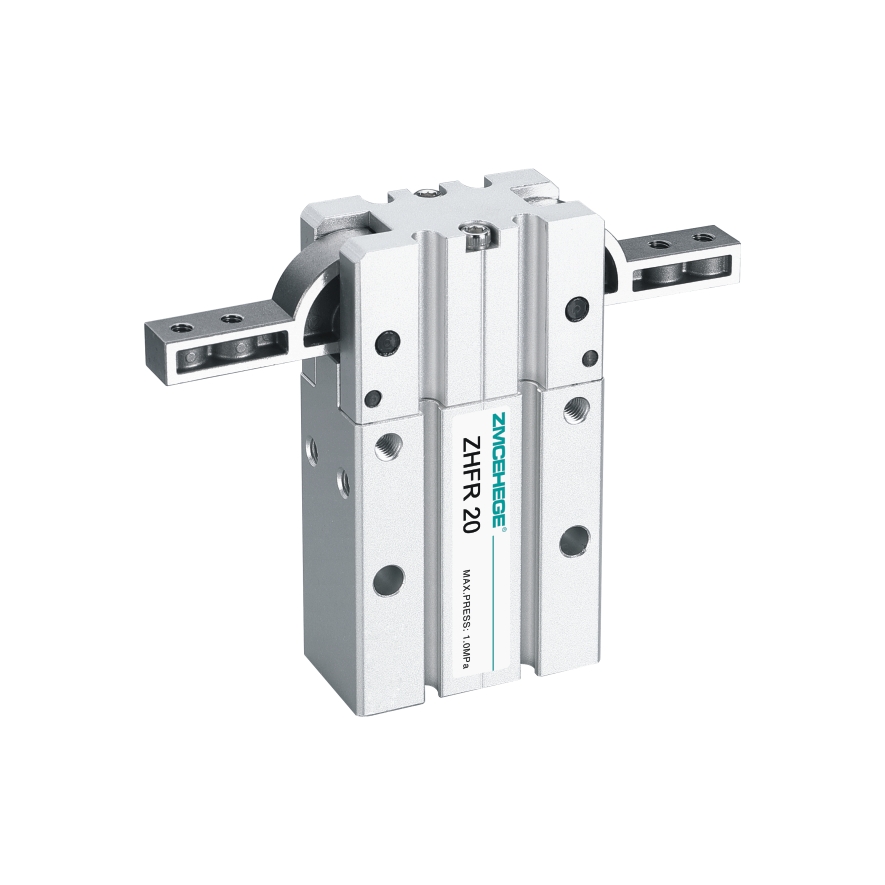

气爪(180°开闭型)

Product Description

1.*180 ° opening and closing, simplify the pick-and-place action, avoiding the space for workpiece movement.

1.180°开闭型，简化拾放动作，避开工件移动空间。

2. The clamp and the front cover are separated by metal sheet to reduce wear and prolong service life.

2.夹爪与前盖间金属片隔开，减小磨损，延长使用寿命。

3. The finger opening and closing parts are specially designed to effectively prevent foreign objects from entering.

3.手指开关部分特殊设计，能有效防止异物进入。

4. All series come with magnets for easy control.

4.所有系列均附附磁石，便于控制。

5. Multiple fixed forms for easy installation.

5.多种固定形式，便于安装。

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore缸径	10	16	20	25	32
Action type 动作型式	Double action type 复动型
Using medium 使用介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	0.15~0.7MPa(21~100psi)(1.5~7.0bar)
Working temperature℃ 工作温度℃	-10~70
Oil supply 给油	Cylinder: No need for oil supply; Claw: Lubricating grease 气缸：无需给油；夹爪：润滑脂
Buffering type 缓冲型式	Anti-collision pad 防撞垫
Maximum usage frequency 最高使用频率	60(c.p.m)
Pepetition accuracy 重复精度	±0.2mm
Clamping torque 夹持力矩①	0.16N.m	0.55N.m	1.10N.m	2.30N.m	5.00N.m
Opening and closing angle 开闭角度	Close: -2°~-5°；Open：180°±2° 闭合：-2°~-5°；开启：180°±2°
Connecting pipe bore 接管口径	M5×0.8
Equipped induction switch所配感应器开关②	ZDMS-H
