Product Description
|

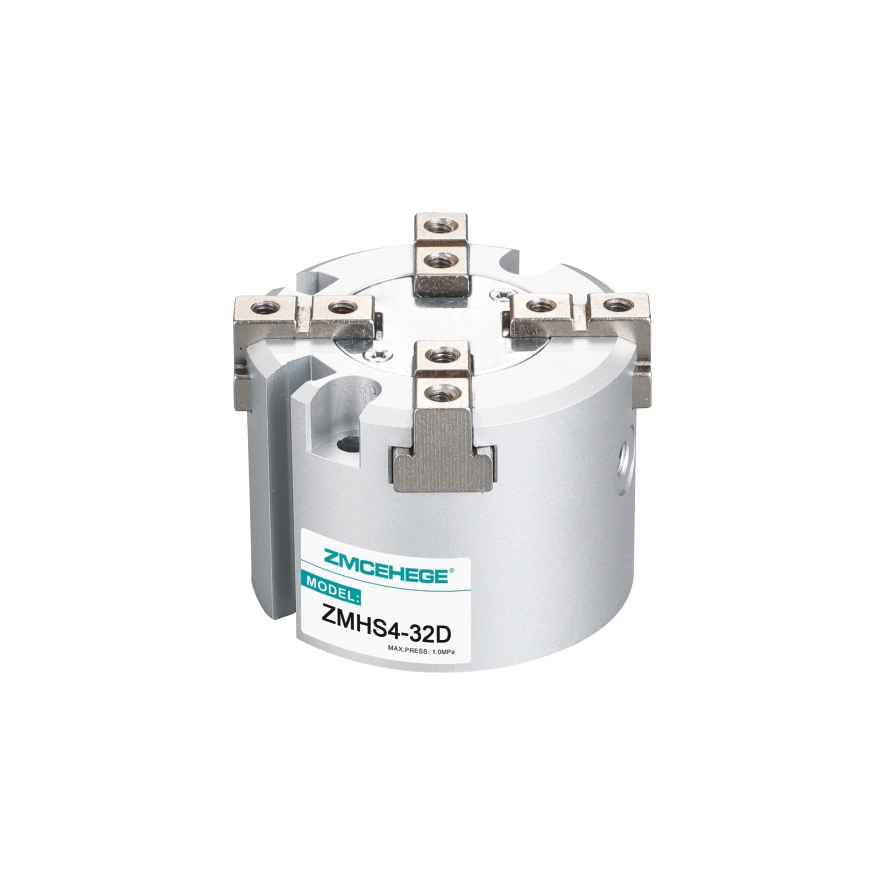

Model 型号 |
ZMHS4-16D | ZMHS4-20D | ZMHS4-25D | ZMHS4-32D | ZMHS4-40D | ZMHS4-50D | ZMHS4-63D | ||
|
Cylinder bore (mm) 缸径mm |
16 | 20 | 25 | 32 | 40 | 50 | 63 | ||
| Using fluid 使用流体 | Air 空气 | ||||||||
|
Operating pressure range 使用压力范围 |
0.2～0.6 MPa | 0.1～0.6 MPa | |||||||
|
Environment and fluid temperature 环境和流体温度 |
-10～+60℃ | ||||||||
|
Pepetition accuracy 重复精度 |
±0.01mm | ||||||||
|
Maximum action frequency 最高动作频率 |
120 c.p.m | 60 c.p.m | |||||||
| Oil supply 给油 | No need 不需要 | ||||||||
| Action mode 动作方式 | Double action 双作用 | ||||||||
|
Note) Clamping force pressure 0.5MPa 注)夹持力压力0.5MPa |
Outer diameter clamping force 外径夹持 |
10 | 19 | 31 | 55 | 88 | 140 | 251 | |
|
Inner diameter clamping force 内径夹持 |
12 | 21 | 35 | 61 | 97 | 153 | 268 | ||
|
Finger stroke mm 手指行程mm |
4 | 4 | 6 | 8 | 8 | 12 | 16 | ||
| Connecting pipe bore 接管口径 | M3x0.5 | M5x0.8 | |||||||
| Magnetic switch 磁性开关 | Built-in magnetic ring type 内置磁环型 | ||||||||
|
Magnetic switch model 磁性开关型号 |
M9P(V),M9N(V),M9B(V) | ||||||||
