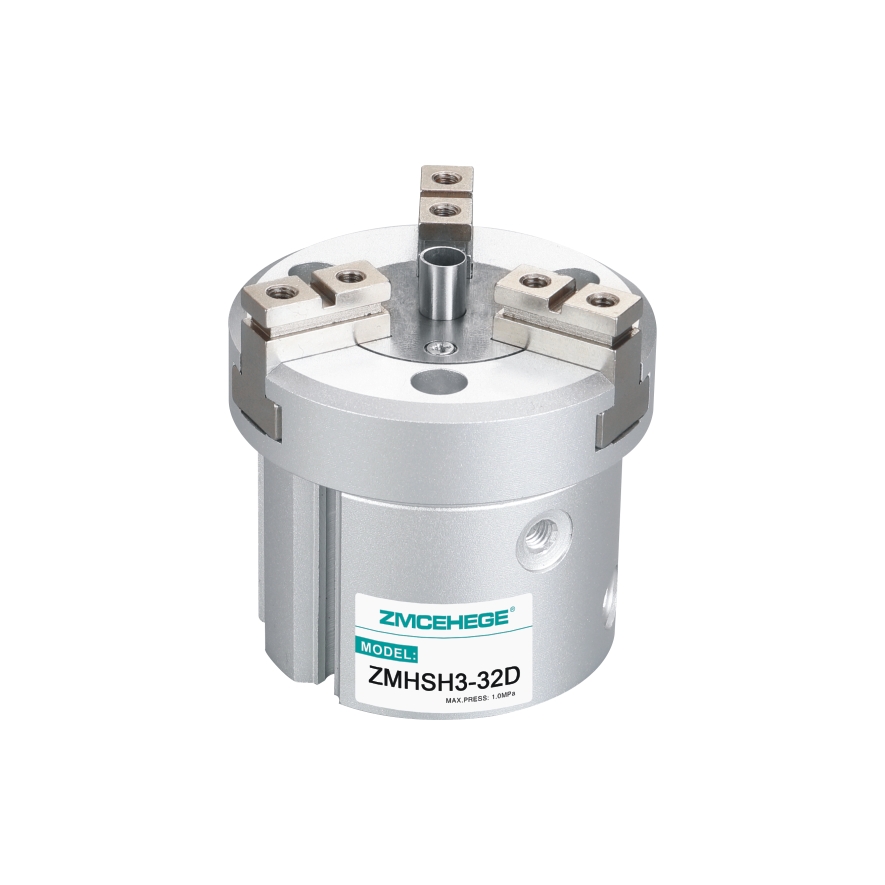

Cylinder boremm 缸径mm |
16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | |||||||||||||||
|
Using fluid 使用流体 |
Air (without oil supply) 空气(不给油) |
||||||||||||||||||||||
|
Operating pressure range(MPa) 使用压力范围(MPa) |
0.2～0.6 | 0.1～0.6 | |||||||||||||||||||||
|
Environment and fluid temperature 环境和流体温度 |
-10~60℃ (but not frozen) -10~60℃(但未冻结) |
||||||||||||||||||||||
|
Pepetition accuracy 重复精度 |
±0.01 | ||||||||||||||||||||||
|
Maximum action frequency(c.p.m) 最高动作频率(c.p.m) |
120 | 60 | 30 | ||||||||||||||||||||
|
Oil supply 给油 |
No need 不需要 |
||||||||||||||||||||||
|
Action mode 动作方式 |
Double action 双作用 |
||||||||||||||||||||||
|
Note) Clamping force pressure 0.5MPa 注)夹持力压力0.5MPa |
Outer diameter clamping 外径夹持 |
9 | 21 | 36 | 62 | 97 | 155 | 280 | 400 | ||||||||||||||
|
Inner diameter clamping 内径夹持 |
15 | 26 | 45 | 77 | 118 | 187 | 329 | 490 | |||||||||||||||
|
Center through-hole diameter (mm) 中心贯孔孔径(mm) |
φ3H10 |
+0.040 0 |
φ3H10 |
+0.040 0 |
φ4H10 |
+0.040 0 |
φ6H10 |
+0.040 0 |
φ10H10 |
+0.040 0 |
φ12H10 |
+0.040 0 |
φ16H10 |
+0.040 0 |
φ20H10 |
+0.040 0 |
|||||||
|
Opening and closing stroke (diameter) (mm) 开闭行程(直径)(mm) |
4 | 4 | 6 | 8 | 8 | 12 | 16 | 20 | |||||||||||||||
