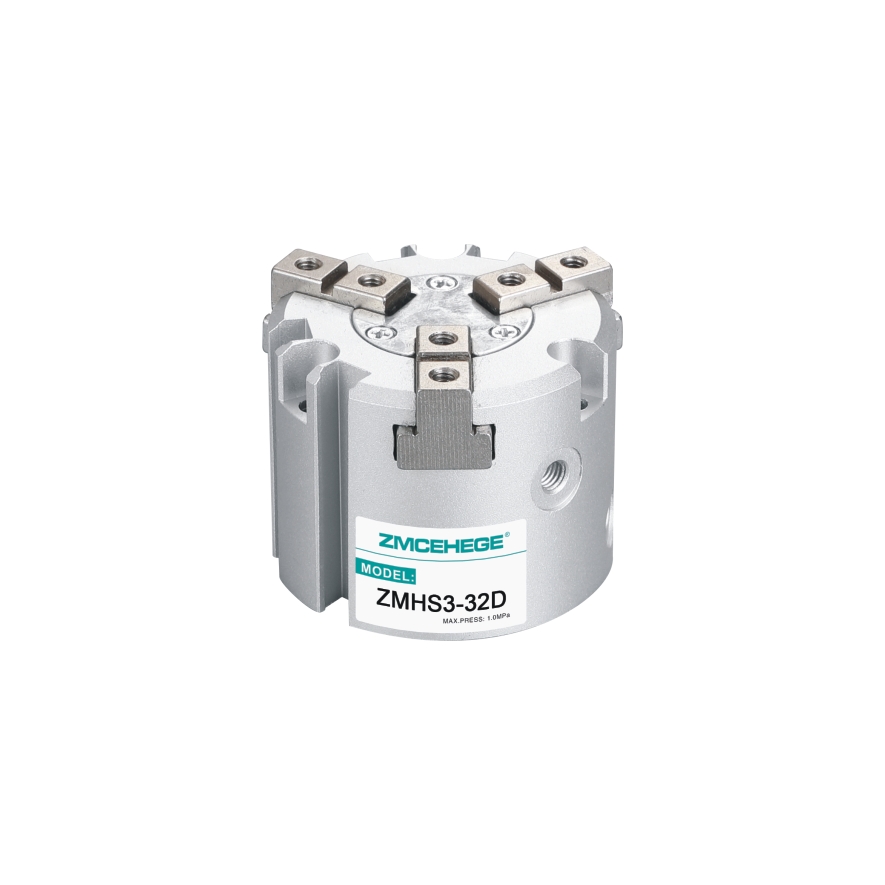

| Model型号 | ZMHS□3-16 | ZMHS□3-20 | ZMHS□3-25 | ZMHS□3-32 | ZMHS□3-40 | ZMHS□3-50 | ZMHS□3-63 | ZMHS□3-80 | ZMHS□3-100 | ZMHS□3-125 | |||
|
Cylinder bore (mm) 缸径mm |
16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | |||
|
Using fluid 使用流体 |
Air 空气 |
||||||||||||
|
Operating pressure range 使用压力范围 |
0.2~0.6MPa | 0.1-0.6MPa | |||||||||||
|
Environment and fluid temperature 环境和流体温度 |
-10～60℃ | ||||||||||||
|
Pepetition accuracy 重复精度 |
±0.01 | ||||||||||||
|
Maximum action frequency 最高动作频率 |
120c.p.m | 60c.p.m | 30c.p.m | ||||||||||
|
Oil supply 给油 |
No need 不需要 |
||||||||||||
|
Action mode 动作方式 |
Double action 双作用 |
||||||||||||
|
Note) Clamping force pressure 0.5MPa 注)夹持力压力0.5MPa |
Outer diameter clamping 外径夹持 |
14 | 25 | 42 | 74 | 118 | 187 | 335 | 500 | 750 | 1270 | ||
|
Inner diameter clamping 内径夹持 |
16 | 28 | 47 | 82 | 130 | 204 | 359 | 525 | 780 | 1320 | |||
|
Outer diameter clamping with dust cover 带防尘罩外径夹持 |
9 | 21 | 36 | 62 | 97 | 155 | 280 | 400 | - | - | |||
|
Standard finger stroke with cover mm 带罩标准型手指行程mm |
4 | 4 | 6 | 8 | 8 | 12 | 16 | 20 | 24 | 32 | |||
|
Long stroke finger stroke mm 长行程手指行程mm |
10 | 10 | 12 | 16 | 20 | 28 | 32 | 40 | 48 | 64 | |||
|
Connecting pipe bore Rc 接管口径Rc |
M3x0.5 | M5x0.8 | 1/8 | 1/4 | 3/8 | ||||||||
|
Magnetic switch 磁性开关 |
Built-in magnetic ring type 内磁环型 |
||||||||||||
