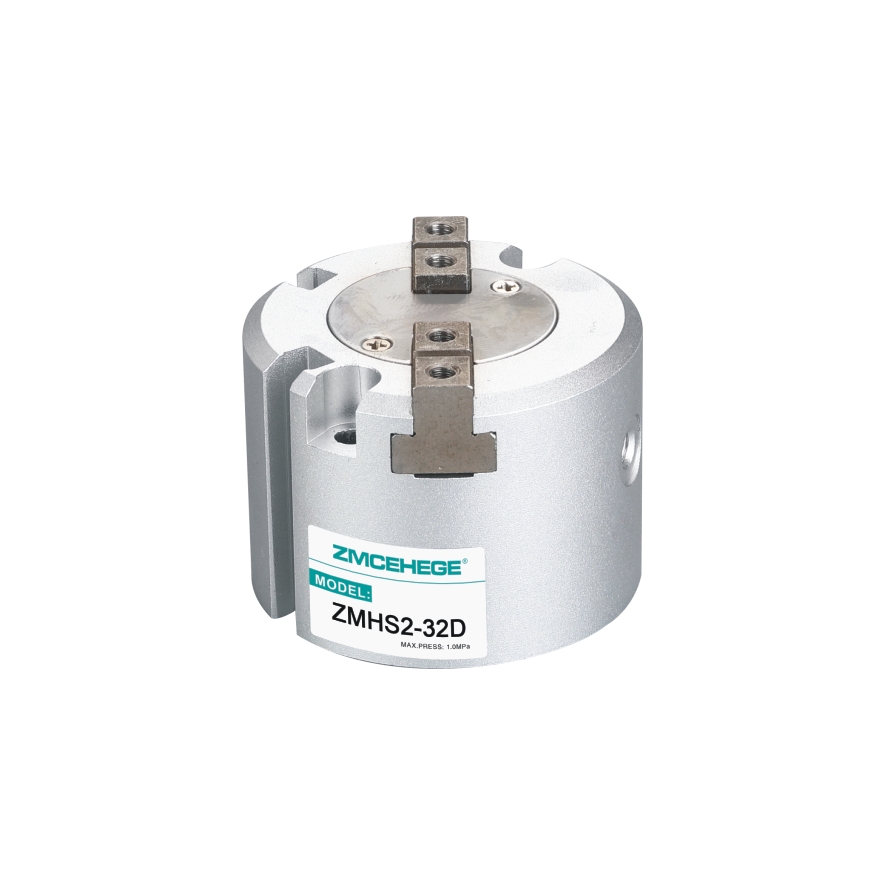

| Model型号 | ZMHS2-16D | ZMHS2-20D | ZMHS2-25D | ZMHS2-32D | ZMHS2-40D | ZMHS2-50D | ZMHS2-63D | |||
|
Cylinder bore (mm) 缸径mm |
16 | 20 | 25 | 32 | 40 | 50 | 63 | |||
|
Using fluid 使用流体 |
Air 空气 |
|||||||||
|
Operating pressure range 使用压力范围 |
0.2～0.6 MPa | 0.1～0.6 MPa | ||||||||
|
Environment and fluid temperature 环境和流体温度 |
-10～+60℃ | |||||||||
|
Pepetition accuracy(mm) 重复精度 |
±0.01mm | |||||||||
|
Maximum action frequency 最高动作频率 |
120 c.p.m | 60 c.p.m | ||||||||
|
Oil supply 给油 |
No need 不需要 |
|||||||||
|
Action mode 动作方式 |
Double action 双作用 |
|||||||||
|
Note) Clamping force pressure 0.5MPa 注)夹持力压力0.5MPa |
Outer diameter clamping 外径夹持 |
21 | 37 | 63 | 111 | 177 | 280 | 502 | ||
|
Inner diameter clamping 内径夹持 |
23 | 42 | 71 | 123 | 195 | 306 | 537 | |||
|
Finger stroke mm 手指行程mm |
4 | 4 | 6 | 8 | 8 | 12 | 16 | |||
|
Connecting pipe bore 接管口径 |
M3x0.5 | M5x0.8 | ||||||||
|
Magnetic switch 磁性开关 |
Built-in magnetic ring type 内置磁环型 |
|||||||||
|
Magnetic switch model 磁性开关型号 |
M9P(V)·M9N(V)·M9B(V) | |||||||||
