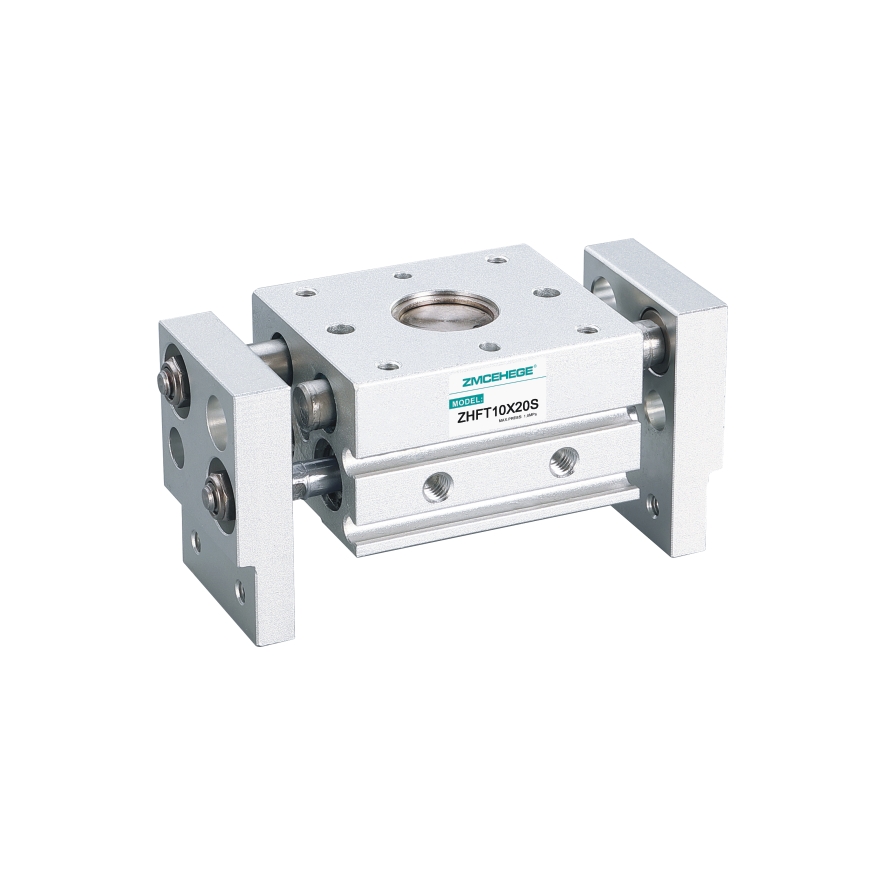

大口径开口夹

Product Description

1. Long finger stroke, suitable for gripping large objects;

1、手指行程长，适合夹持体积大的物件；

2. Double piston drive can increase retention force;

2、双活塞驱动，能增大保持力；

3. Adopting gear and rack operation, allowing fingers to open and close synchronously, with high repetition accuracy;

3、采用齿轮齿条操作，令手指能同步开关，重复精度高；

4. All series come with magnets for easy control.

4、所有系列均附磁石，便于控制。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)	10	16	20	25	32
Action type 动作型式	Double action type 复动型
Working medium 工作介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	0.25~0.7MPa (36~100psi)	0.15~0.7MPa(22~100psi)
Ensure pressure resistance 保证耐压力	1.2MPa(175psi)
Working temperature 工作温度	-20~70℃
Oil supply 给油	Cylinder part: No need for oil supply 气缸部分：无需给油
Buffering type 缓冲型式	Anti-collision pad 防撞垫
Pepetition accuracy 重复精度	±0.1mm
Clamping force N(Note1) 夹持力(注1)	14	45	74	131	228
Maximum usage frequency 最高使用频率	40 times/minute 40次/分钟				20 times/minute 20次/分钟
Connecting pipe bore 接管口径	M5×0.8				PT1/8
