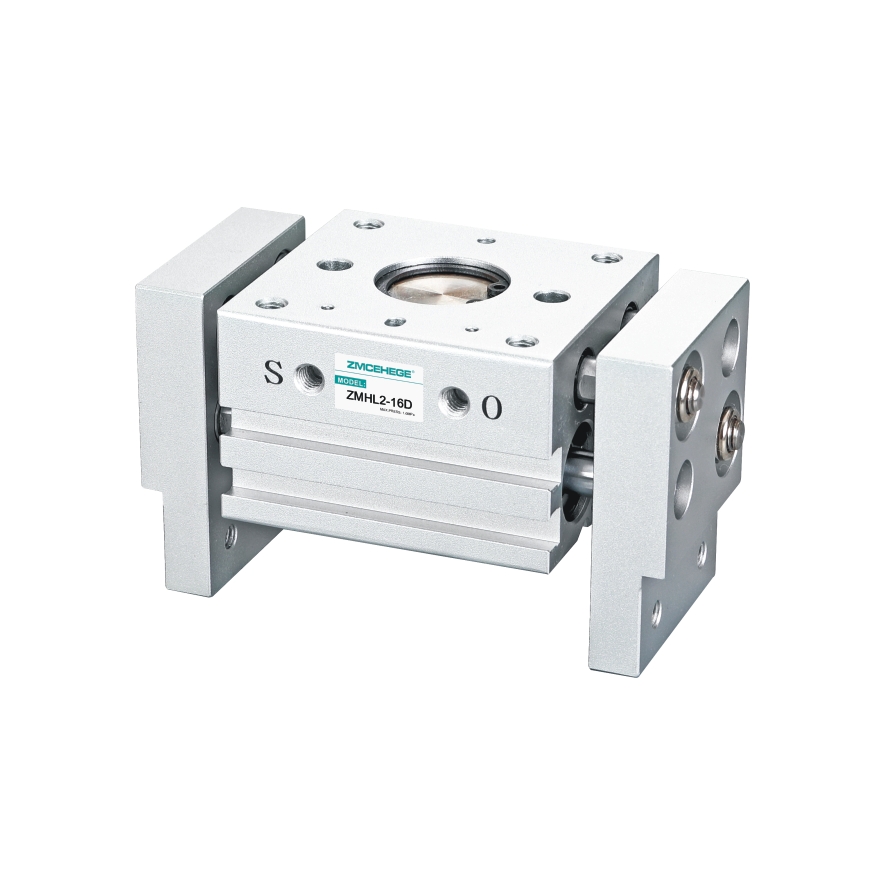

宽型气爪(平行开闭型)

Product Description

·Long finger stroke, suitable for gripping large objects

·手指行程长，适合夹持体积大的物件

·Double piston design can increase retention force

·双活塞设计，能增大保持力

·Adopting gear and rack operation, allowing fingers to open and close synchronously

·采用齿轮齿条操作，令手指能同步开闭

·Dust proof design, due to the use of special sealing components

·防尘设计，因采用特别密封件

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore (mm) 缸径(mm)	10	16	20	25	32	40
Using fluid 使用流体	Air 空气
Action type 动作型式	Double action 双作用
Maximum operating pressure MPa 最高使用压力MPa	0.6
Minimum operating pressure MPa 最低使用压力MPa	0.15	0.1
Environment and fluid temperature 环境和流体温度	-10～60℃ (but not frozen) -10～60℃(但未冻结)
Pepetition accuracy 重复精度	±0.1mm
Note 1) Retention force N 注1)保持力N	14	45	74	131	228	396
Connecting pipe bore 接管口径	M5×0.8
