气缸系列

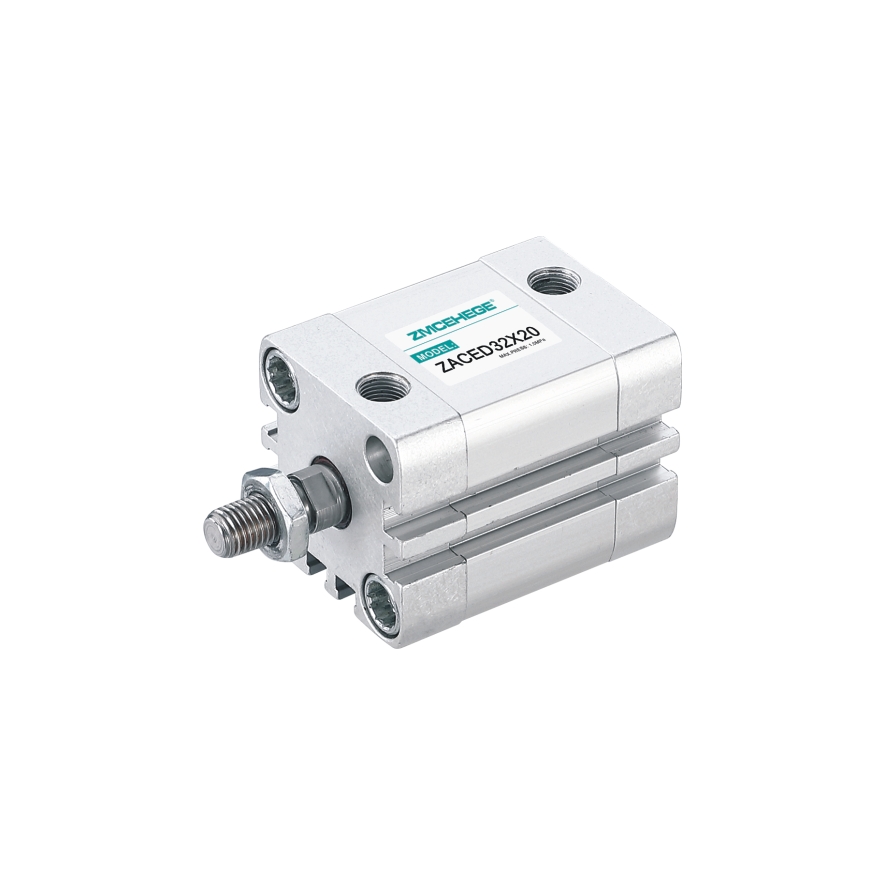

紧凑型气缸

Product Description

1. Implement ISO21287 standard, the installation dimension is universal;

1、执行IS021287标准，安装尺寸通用性强；

2. The cylinder block is connected to the front and rear covers with threads, which has good strength and is easy to maintain;

2、缸体与前、后盖采用螺纹连接，强度好，维修方便；

3. After precision machining of cylinder bore, it is subjected to hard oxidation treatment, which has good wear resistance and durability;

3、缸体内径精加工后再作硬质氧化处理，耐磨、耐久性好；

4. The piston seal adopts a special-shaped bidirectional sealing structure, which is compact in size and has oil storage function;

4、活塞密封采用异型双向密封结构，尺寸紧凑，有储油功能；

5. Compact structure, which can effectively save installation space. Compared with ISO15552 standard cylinders with the same cylinder bore, it saves up to 50% space;

5、紧凑型结构，能有效节省安装空间，与同缸径ISO15552标准气缸相比，节省空间达50%；

6. The cylinder block is equipped with sensor slots on three sides, making it easy to install sensors;

6、缸体三边带有传感器槽，安装传感器方便；

7. Built in anti-collision pad, effectively absorbing residual energy generated by high-speed operation and mechanical rotation;

7、内置防撞垫，有效吸收高速运转和机械回转产生的残余能量；

8. Multiple specifications of installation accessories are available for selection.

8、多种规格安装附件可供选择。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm)
内径(mm)

100

125

Action mode
动作型式

Double action type
复动型

Single action extrusion type, Single action introduction type
单动型押出型、单动引入型

Working medium
工作介质

Air (passing through over 40μm filter)
空气(经40μm以上滤网过滤)

Operating pressure range
使用压力范围

Double action type
复动型

0.15~1.0MPa(22~145Psi)

Single action type
单动型

0.2~1.0MPa(28~145Psi)

Ensure pressure resistance
保证耐压力

1.5MPa(215Psi)

Operating temperature range
使用温度范围℃

-20~70

Operating speed range
使用速度范围

Double action type: 30~500mm/s, Single action type: 50~500mm/s
复动型：30~ 500mm/s单动型：50-500mm/s

Stroke tolerance range
行程公差范围

行程≤100

+1.0
0

行程>100

+1.5
0

Buffering type
缓冲型式

Collision cushion
防撞垫

*Connecting pipe bore
*接管口径

M5×0.8

G1/8

G1/4
