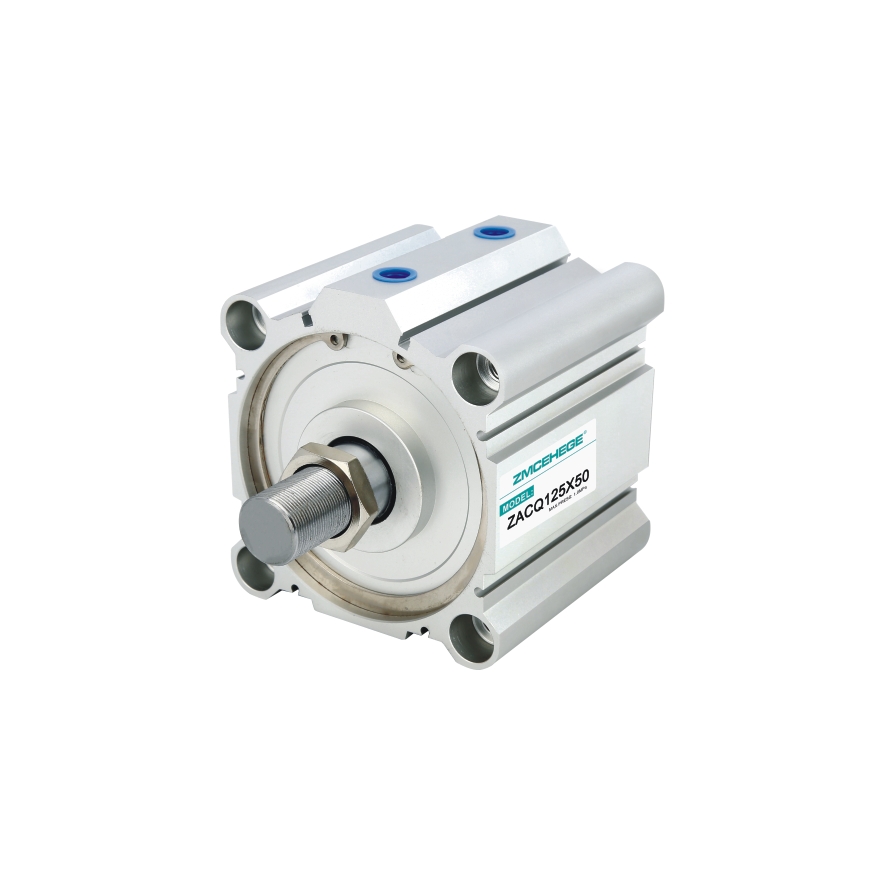

超薄气缸-大缸径

Product Description

1. Implement JIS standards;

1、执行JIS标准；

2. The cylinder block and front and rear covers are fixed withC-shaped retaining rings,compact and reliable ;

2、缸体与前、后盖采用C形扣环固定，紧凑可靠；

3. After precision machining of cylinder bore, it is subjected to hard oxidation treatment, which has good wear resistance and durability;

3、缸体内径精加工后再作硬质氧化处理，耐磨、耐久性好；

4. The piston seal adopts a special-shaped bidirectional sealing structure, which is compact in size and has oil storage function;

4、活塞密封采用异形双向密封结构，尺寸紧凑，有储油功能；

5. Compact structure, which can effectively save installation space;

5、紧凑型结构，能有效节省安装空间；

6. There are sensor slots around the cylinder block, making installation of sensors convenient.

6、缸体周边带有传感器槽，安装传感器方便。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)	125	140				160
Action type 动作型式	Double action type 复动型
Working medium 工作介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	0.15~1.0MPa(22~145Psi)
Ensure pressure resistance 保证耐压力	1.5MPa(215Psi)
Operating temperature range 使用温度范围℃	-20~70
Operating speed range 使用速度范围	30~500mm/s
Stroke tolerance range 行程公差范围	行程≤100		+1.0 0	行程>100	+1.5 0
Buffering type 缓冲型式	Collision cushion 防撞垫
Connecting pipe bore 接管口径	PT3/8
