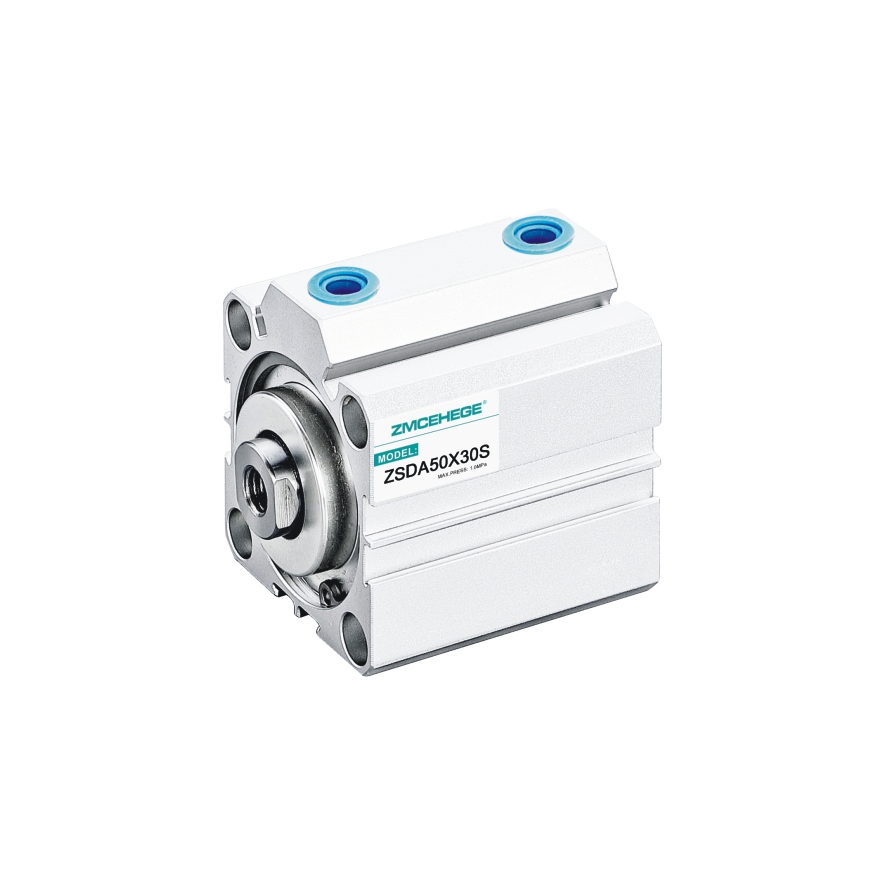

超薄气缸

Product Description

1. Implement enterprise standards;

1、执行企业标准；

2. The cylinder block and rear cover, as well as the piston and piston rod, adopt a riveted structure, which is compact and reliable;

2、缸体与后盖，活塞与活塞杆采用铆合结构，紧凑可靠；

3. The cylinder bore is rolled and then subjected to hard oxidation treatment, which has good wear resistance and durability;

3、缸体内径滚压处理后再作硬质氧化处理，耐磨、耐久性好；

4. The piston seal adopts a special-shaped bidirectional sealing structure, with compact size and oil storage function;

4、活塞密封采用异型双向密封结构，尺寸紧凑，储油功能；

5. Compact structure, which can effectively save installation space;

5、紧凑型结构，能有效节省安装空间；

6. There are magnetic induction switch slots around the cylinder block, making it convenient to install induction switches;

6、缸体周边带有磁感应开关槽，安装感应开关方便；

7. Multiple specifications of cylinder types are available for selection.

7、多种规格的气缸型式可供选择。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm)
内径(mm)

100

Action mode
动作形式

Double action type
复动型

Single action extrusion type, Single action introduction type
单动压出型、单动引入型

Working medium
工作介质

Air (passing through over 40μm filter)
空气(经40μm以上滤网过滤)

Operating pressure range
使用压力范围 kgf/cm²

Double action type
复动型

0.15~1.0MPa(22~145psi)(1.5~10.0bar)

Single action type
单动型

0.2~1MPa(28~145psi)(2.0~10.0bar)

Ensure pressure resistance
保证耐压力kgf/cm²

1.5MPa(215psi)(15bar)

Operating temperature range
使用温度范围℃

-20~70

Operating speed range
使用速度范围 mm/s

Double action type
复动型

30~500

Single action type
单动型

50~500

Stroke tolerance range
行程公差范围

Stroke≤100

+1.0
0

Stroke>100

+1.5
0

行程≤100

+1.0
0

行程>100

+1.5
0

Buffering type
缓冲形式

Collision cushion
防撞垫

Connecting pipe bore
接管口径

M5×0.8

PT1/8

PT1/4

PT3/8
