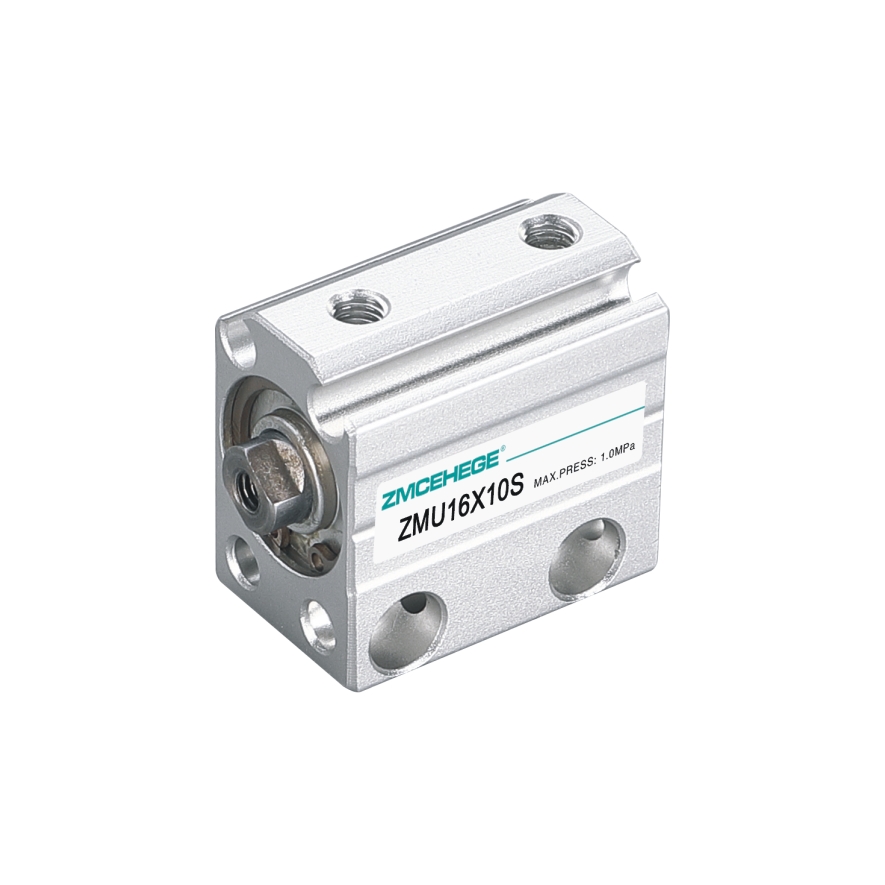

小型自由安装气缸

Product Description

1. Implement JIS standards;

1、执行JIS标准；

2. The body can be fixed in four directions, easy to install and use;

2、本体可从四个方向固定，安装使用简便；

3. Multiple cylinders can be fixed together, effectively saving installation space;

3、可以多个气缸并在一起固定，有效节省安装空间；

4. The front end of the cylinder is equipped with a guiding protrusion, which ensures precise and reliable installation and positioning;

4、气缸前端附导向凸台，安装定位精确可靠；

5. After precision machining of the bore, it is subjected to hard oxidation treatment, which has superior wear resistance and durability performance;

5、内径精加工后再做硬质氧化处理，耐磨、耐久性能优越；

6. Optional magnetic type with position sensing function;

6、可选配附磁型，具有位置感测功能；

7. The cylinder block is equipped with sensor installation slot, making it convenient and flexible to install sensors;

7、缸体上带有传感器安装沟槽，安装传感器方便灵活；

8. The piston seal adopts a special-shaped bidirectional sealing structure, which is compact in size and has oil storage function.

8、活塞密封采用异形双向密封形式，尺寸紧凑有储油功能。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)	4	6	8		10	12		16	20
Action type 动作型式	ZMU：double action type ZMSU：single action extrusion type ZMU：复动型 ZMSU：单动押出型
Working medium 工作介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	0.15~0.7MPa(22~100Psi)
	0.3~0.7MPa(44~100Psi)			0.2~0.7MPa(29~100Psi)
Ensure pressure resistance 保证耐压力	1.2MPa(175Psi)
Operating temperature range 使用温度范围℃	-20~70
Operating speed range 使用速度范围	Double action type：30~500mm/s Single action type：50~500mm/s 复动型：30~500mm/s 单动型：50~500mm/s
Stroke tolerance range 行程公差范围	+1.0 0
Buffering type 缓冲型式	None 无						垫缓冲
Connecting pipe bore *接管口径	M3×0.5						M5×0.8
