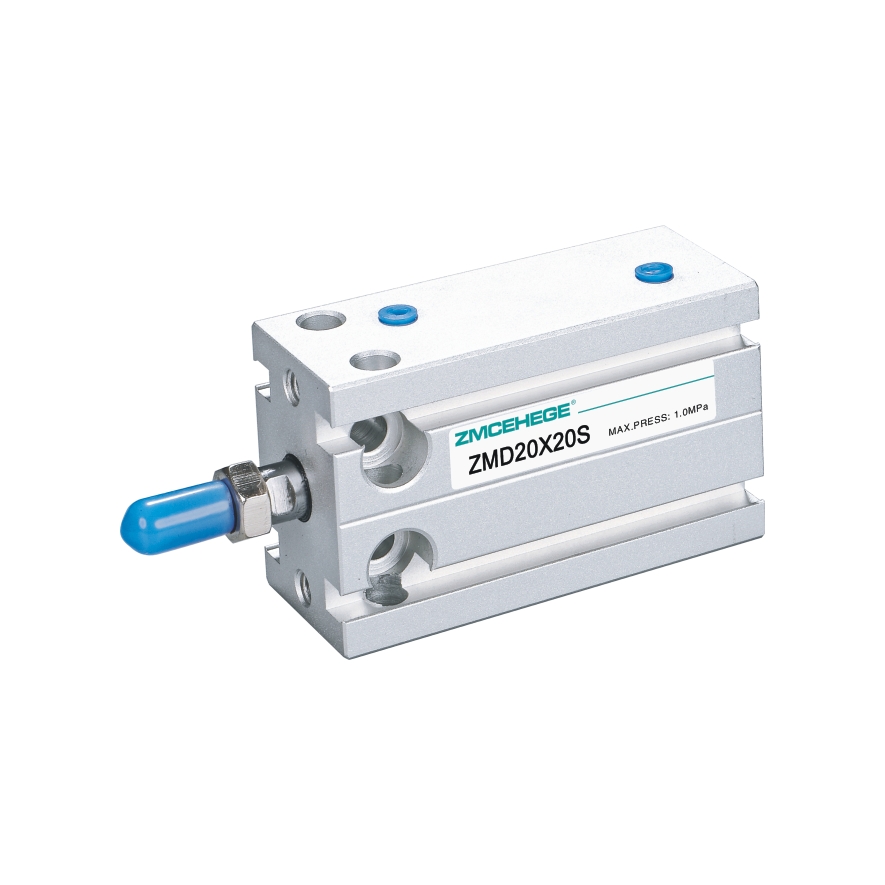

多位置固定气缸

Product Description

1. Implement enterprise standards

1、执行企业标准

2. Multiple fixed forms of the body, easy to install and use;

2、本体多种固定形式，安装使用简便；

3. Multiple cylinders can be fixed together, effectively saving installation space;

3、可以多个气缸并在一起固定，有效节省安装空间；

4. The piston rod has high guiding accuracy and does not require additional lubricating oil;

4、活塞杆导向精度高，无需另加润滑油；

5. Multiple cylinder specifications are available for customers to choose from;

5、多种规格号的气缸可供客户选择使用；

6. Choosing high-temperature sealing materials can ensure the normal operation of the cylinder under150°C conditions.

6、选择耐高温密封材料，可保证气缸在150°C条件下正常工作。(此项为可选项)

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)		6	10	16	20	25	32
Action type 动作型式	ZMD\ZMDD\ZMDJ	Double action type 复动型
	ZMSD\ZMTD	Single action extrusion type, Single action introduction type 单动押出型、单动引入型
Working medium 工作介质		Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	Double action type 复动型	0.15~1.0MPa(22~145psi)
	Single action type 单动型	0.2~1MPa(28~145psi)
Ensure pressure resistance 保证耐压力		1.5MPa(215psi)
Working temperature °C 工作温度℃		-20~70
Operating speed range 使用速度范围mm/s		Double action type：30~500 Single action type：50~500 复动型：30~500 单动型：50~500
Stroke tolerance range 行程公差范围		+1.0 0
Buffering type 缓冲型式		Collision cushion 防撞垫
Connecting pipe bore 接管口径		M5×0.8					PT1/8
