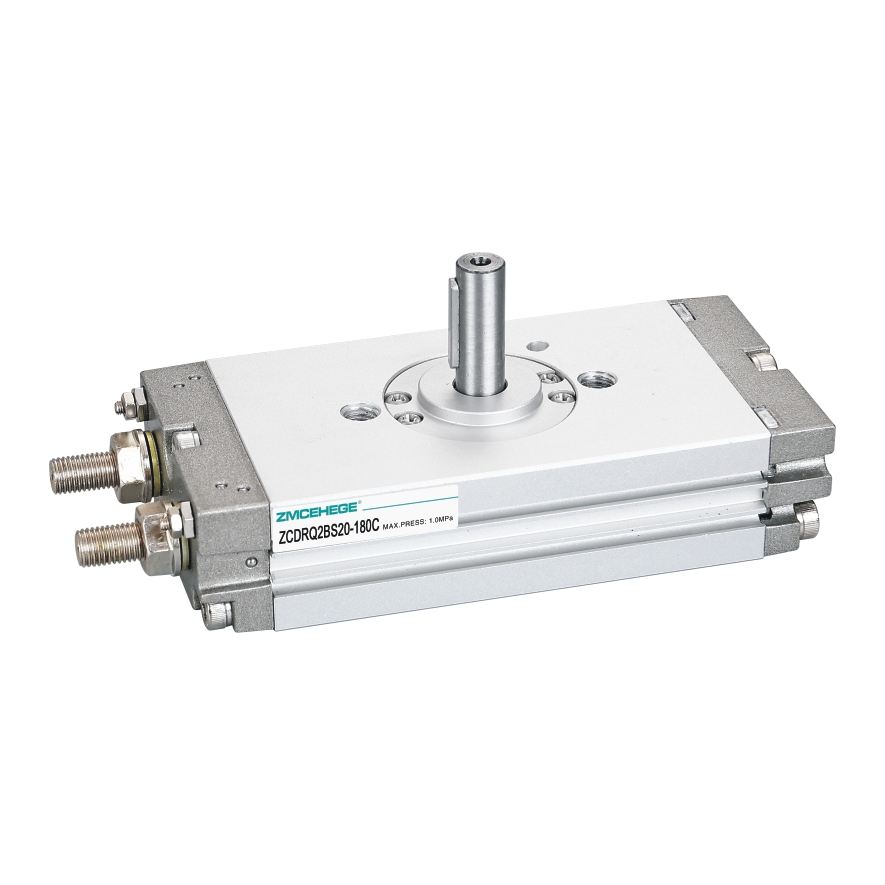

薄型齿轮齿条式旋转摆动气缸

Product Description

*The main difference between this swing cylinder and the ZCRQ series is that the cylinder block is silver white, which matches a clean environment.

*本摆动气缸与ZCRQ系列的主要区别是缸体本色为银白色，与洁净环境相匹配。

*The piping can be taken in one direction.

*配管可以取一个方向。.

*Adopting double racks with no backlash.

*采用双齿条，无齿隙。

*The body can be used as a flange.

*本体可作为法兰使用。

*There are positioning holes on the body for easy alignment.

*本体上有定位孔，易于对中。

*Two magnetic switches can be installed on the same side.

*在同一面上可安装2个磁性开关

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore (mm) 缸径(mm)		10	15	20	30	40
Using fluid 使用流体		Air (without oil supply) 空气(不给油)
Action mode 动作方式		Double action 双作用
Operating pressure range 使用压力范围MPa		0.15～0.7		0.1～1.0
Environment and fluid temperature 环境及流体温度		0～60℃(When unfrozen) 0～60℃(未冻结时)
Buffer 缓冲		Cushion buffering 垫缓冲		No air buffering 无、气缓冲
Swinging angle 摆动角度		80°～100°，170°～190°
Adjustable angle range 可调角度范围		±5°
Output torque 输出力矩(N·m)		0.3	0.75	1.8	3.1	5.3
Allowable kinetic energy 允许动能J	Unbuffered 无缓冲	-	-	0.025	0.048	0.081
	Cushion buffering 垫缓冲	0.25×10^-3	0.39×10^-3	-	-	-
	Air buffering 气缓冲	-	-	0.12	0.25	0.40
Swinging time range s/90° 摆动时间范围s/90°		0.2～0.7		0.2～1.0
