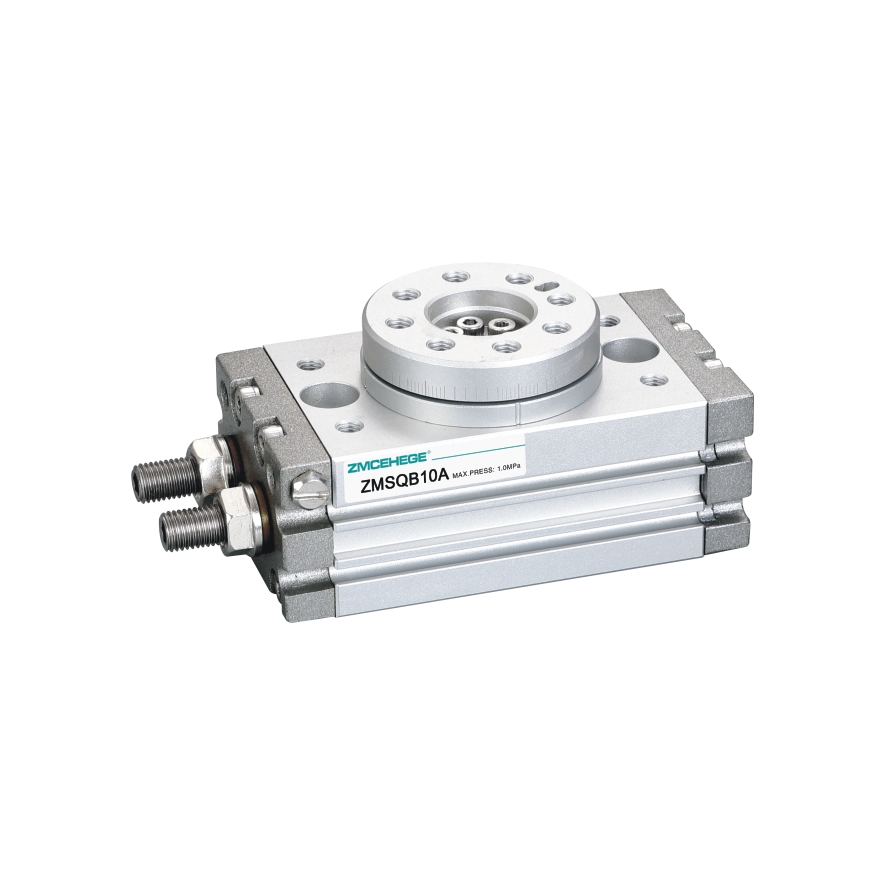

齿轮齿条式旋转摆动气缸

Product Description

*The high-precision type uses high-precision ball bearings, so the vertical and horizontal position accuracy is improved to ±0.01mm.

*高精度型使用高精度滚珠轴承，故垂直及水平位置精度提高到±0.01mm。

*Rotary table type, convenient for workpiece installation.

*回转台型，工件安装方便。

*Rolling bearing design, with a load 3 to 4 times larger than the ZCRQ series.

*滚动轴承设计，负载比ZCRQ系列大3至4倍。

*Swinging smoothly and accurately.

*摆动顺滑、准确。

*Hollow shafts can be used to introduce wires or air tube.

*中空轴可用于引入电线或气管。

*Standard with angle adjustment device, with a wide range of adjustment angles. (0~190° )

*标准带角度调整装置，调节角度范围大。(0~190°)

*Built in magnetic ring, magnetic switches can be installed.

*内置磁环，可安装磁性开关。

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore (mm) 缸径(mm)		10		20		30		50	70	100	200
Using fluid 使用流体		Air (without oil supply) 空气(不给油)
Action type 动作型式		Double action 双作用
Maximum operating pressure 最高使用压力	With angle adjustment screw 带角度调整螺钉	1MPa
	With hydraulic buffer 带液压缓冲器	0.6MPa^Note⁾ 0.6MPa^注⁾
Minimum operating pressure 最低使用压力		0.1MPa(High precision type 10 is 0.2MPa, 20～50 is 0.1MPa) 0.1MPa(高精度型10为0.2MPa，20～50为0.1MPa)
Environment and fluid temperature 环境及流体温度		0～60℃(But not frozen) 0～60℃(但未冻结)
Buffer 缓冲		Rubber buffer(standard)/ Hydraulic buffer(Option) 橡胶缓冲(标准)/液压缓冲器(可选)
Allowable kinetic energy 允许动能	With angle adjustment screw 带角度调整螺钉	0.007J	0.025J		0.048J		0.081J		0.24J	0.32J	0.56J
	With hydraulic buffer 带液压缓冲器	0.039J	0.116J				0.294J		1.1J	1.6J	2.9J
Angle adjustment range 角度调节范围		0～190°
Maximum swing angle 最大摆动角度		190°
Stable swing time range 稳定摆动时间范围	With angle adjustment screw 带角度调整螺钉	0.2～1.0s/90°							0.2～1.5s/90°	0.2～2.0s/90°	0.2～2.5s/90°
	With hydraulic buffer 带液压缓冲器	0.2～0.7s/90°							0.2～1.0s/90°
Cylinder bore (mm) 缸径		Φ15	Φ18		Φ21		Φ25		Φ28	Φ32	Φ40
Connecting pipe bore 接管口径		M5×0.8			Rc 1/8
