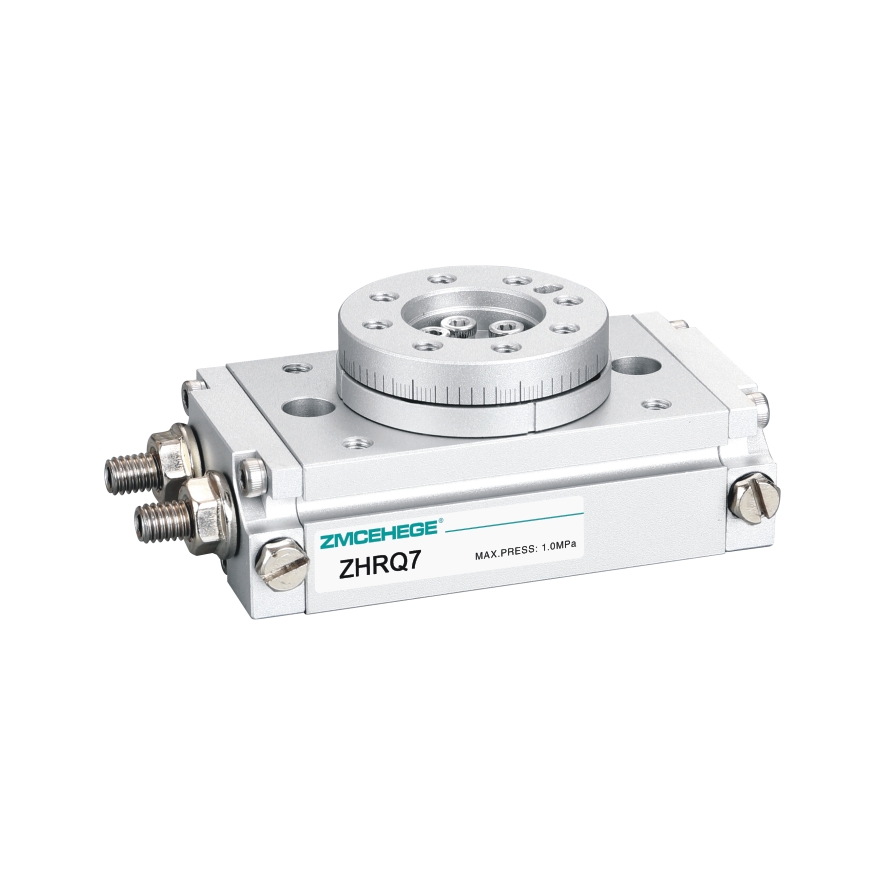

回转气缸

Product Description

1. Gear and rack structure, smooth operation;

1、齿轮齿条结构、运转平稳；

2. Double cylinder structure, capable of achieving double output;

2、双气缸结构、能实理双倍出力；

3. The work table has high machining accuracy, convenient load installation, and accurate positioning;

3、工作台加工精度高，负载安装方便、定位准确；

4. There is a through-hole in the middle of the work table, which can be used for piping;

4、工作台中间有通孔，可由此孔配管；

5. There are positioning holes on both sides (10~200) or bottom (2~7) of the cylinder block, making installation and use convenient;

5、气缸本体两面(10-200)或底面(2~7)均有定位孔，安装使用方便；

6. There are two buffering methods available: adjusting screw fixed buffer and oil pressure buffer. The maximum buffering energy with oil pressure buffer is 3-5 times that of adjusting screw fixed buffer, resulting in better buffering effect.

6、有调整螺丝固定缓冲及油压缓冲器两种缓冲方式可选，带油压缓冲器最大缓冲能量是调整螺丝固定缓冲的3-5倍，缓冲效果更佳。

Note: ZHRQ2/3/7 only has adjustment screw fixed buffering method, without oil pressure buffering method.

注：ZHRQ2/3/7仅有调整螺丝固定缓冲方式，无油压缓冲器缓冲方式。

Categories

tel-phone

13817455525

DetailMessage

Specification 规格		2	3	7	10	20	30		50		70	100	200
Action type 动作型式		Double piston gear and rack double action type 双活塞齿轮齿条式复动型
Working medium 工作介质		Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	With adjustment screws 附调整螺丝	0.25~0.7MPa (37~100psi) (2.5~7bar)		0.2~0.7MPa (29~100psi) (2~7bar)	0.15~0.7MPa(22~100psiN1.5~7.0bar)
	With oil buffer 附油压缓冲器	－			0.15~0.7MPa(22~100psi)1.5~7.0bar)
Ensure pressure resistance 保证耐压力		1.2MPa(175psi)(12.0bar)
Working temperature 工作温度℃		-20~70
Rotation angle range 回转角度范围		0~190°									0~190°
Pepetition accuracy 重复精度	With adjustment screws 附调整螺丝	0.2°
	With oil buffer 附油压缓冲器				0.05°
Theoretical torque 理论力矩(Nm)(0.5MPa)		0.2	0.33	0.63	1.1	2.2		2.8	5.0		7.5	11.0		22.0
Buffering type 缓冲型式	With adjustment screws 附调整螺丝	Anti-collision pad 防撞垫
	With oil buffer 附油压缓冲器	－			Oil buffering 油压缓冲
Connecting pipe port 接管口径	Front end port 前端接口	M5×0.8						PT1/8 [注1]
	Side port 侧面接口							M5×0.8
Weight 重量g		120	175	270	535	940		1260		2060	2890	4100	7650
