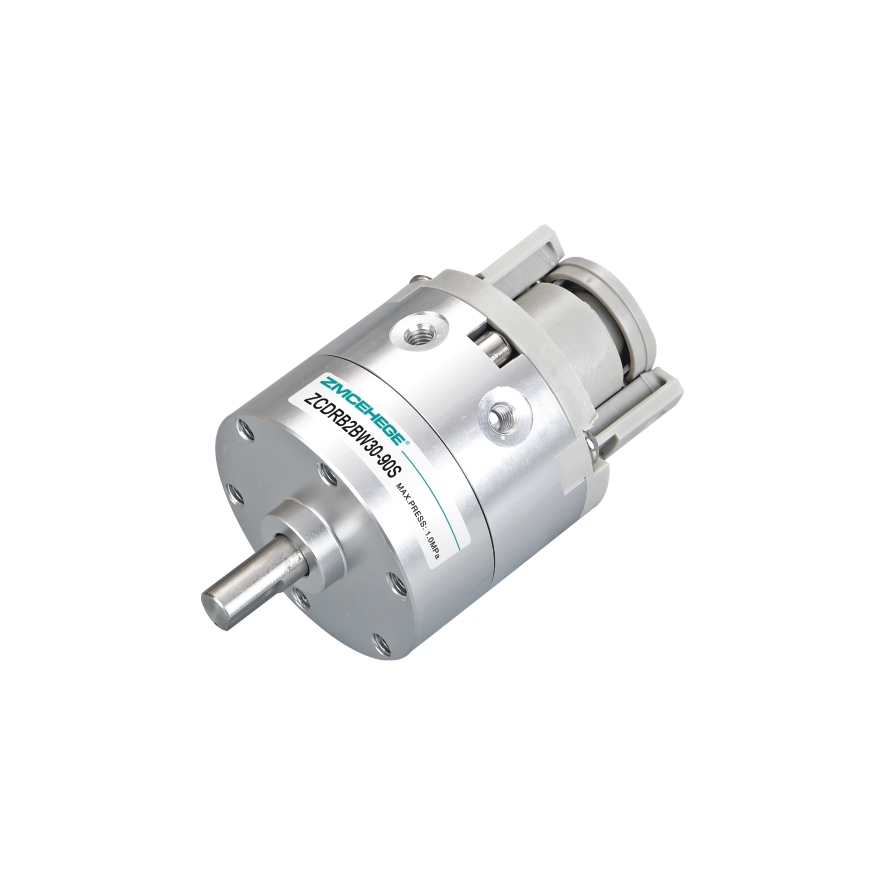

Product Description
|
Cylinder bore(mm) 缸径(mm) |
10 | 15 | 20 | 30 | 40 | ||||||
|
Using fluid 使用流体 |
Air (without oil supply) 空气(不给油) |
||||||||||
|
Maximum operating pressure 最高使用压力(MPa) |
0.7 | 1.0 | |||||||||
|
Minimum operating pressure 最低使用压力(MPa) |
0.2 | 0.15 | |||||||||
|
Environment and fluid temperature(℃) 环境及流体温度(℃) |
5~60 | ||||||||||
| Adjustable speed range s/90 °转速可调范围s/90° | 0.03~0.3 | 0.04~0.3 | 0.07~0.5 | ||||||||
|
Allowable kinetic energy 允许动能(J) |
Single blade 单叶片 |
Without Buffer pad 无缓冲垫 |
0.00015 | 0.00025 | 0.0004 | 0.015 | 0.03 | ||||
|
With Buffer pad 有缓冲垫 |
0.001 | 0.003 | 0.02 | 0.04 | |||||||
| Double blade双叶片 | 0.0003 | 0.0012 | 0.0033 | 0.02 | 0.04 | ||||||
|
Allowable axial load(N) 允许轴负载(N) |
Horizontal 横向 |
15 | 15 | 25 | 30 | 60 | |||||
|
Axial 轴向 |
10 | 10 | 20 | 25 | 40 | ||||||
|
Connection dimension 连接尺寸 |
Side of cylinder block 缸体侧面 |
M3x0.5 (single-blade cylinder block side swing angle 90°, 180°for M5x0.8) M3x0.5(单叶片缸体侧面 摆角90°、180°为M5x0.8) |
M5x0.8 | ||||||||
|
Axial 轴向 |
|||||||||||
|
Angle adjustable range of angle adjustment unit 角度调整单元的角度可调范围 |
Single blade 单叶片 |
0~230° | 0~240° | 0~230° | |||||||
| Double blade双叶片 | 0~90° | ||||||||||
