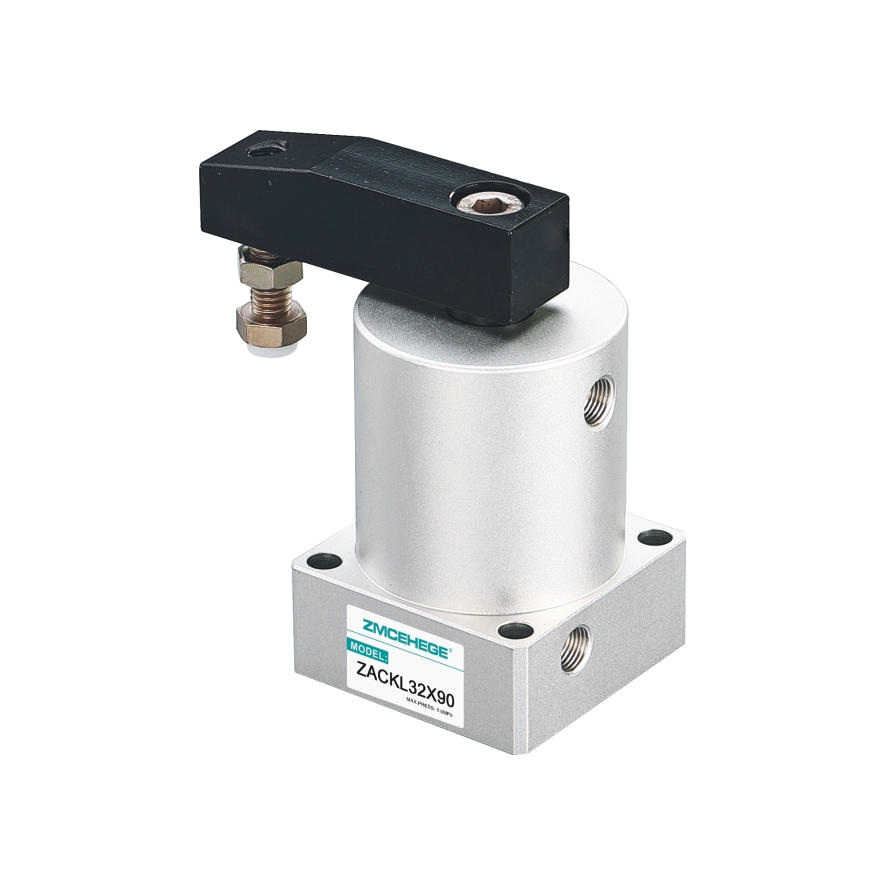

转角气缸

Product Description

1. The sealing material ensures the reliable performance of the cylinder under various conditions;

1、密封件材质保证了气缸在各种条件下使用的可靠性能；

2. Three guide groove structure, high guidance accuracy;

2、三导向槽结构，导向精度高；

3. There are unilateral and bilateral working modes (90°);

3、工作方式有单边与双边(90°)；

4. Rotation mode has left and right rotation; 90° and 180°;

4、旋转方式有左旋和右旋；90°和180°；

5. The piston rod material is special alloy steel, which can ensure a longer service life after heat treatment.

5、活塞杆材质为特殊合金钢，经热处理后，能保证更长的使用寿命。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)	25	32	40	50	63
Action mode 动作方式	Double action type 复动型
Working medium 工作介质	Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	0.15~1.0MPa(22~145psi)
Ensure pressure resistance 保证耐压力	1.5MPa(215psi)
Working temperature °C 工作温度℃	-20~70
Operating speed range 使用速度范围mm/s	50~200
Stroke tolerance range 行程公差范围	+1.0 0
Rotation angle tolerance range 旋转角度公差范围	±1.5°
Buffering type 缓冲型式	None 无
Connecting pipe bore 接管口径	M5×0.8	PT1/8
