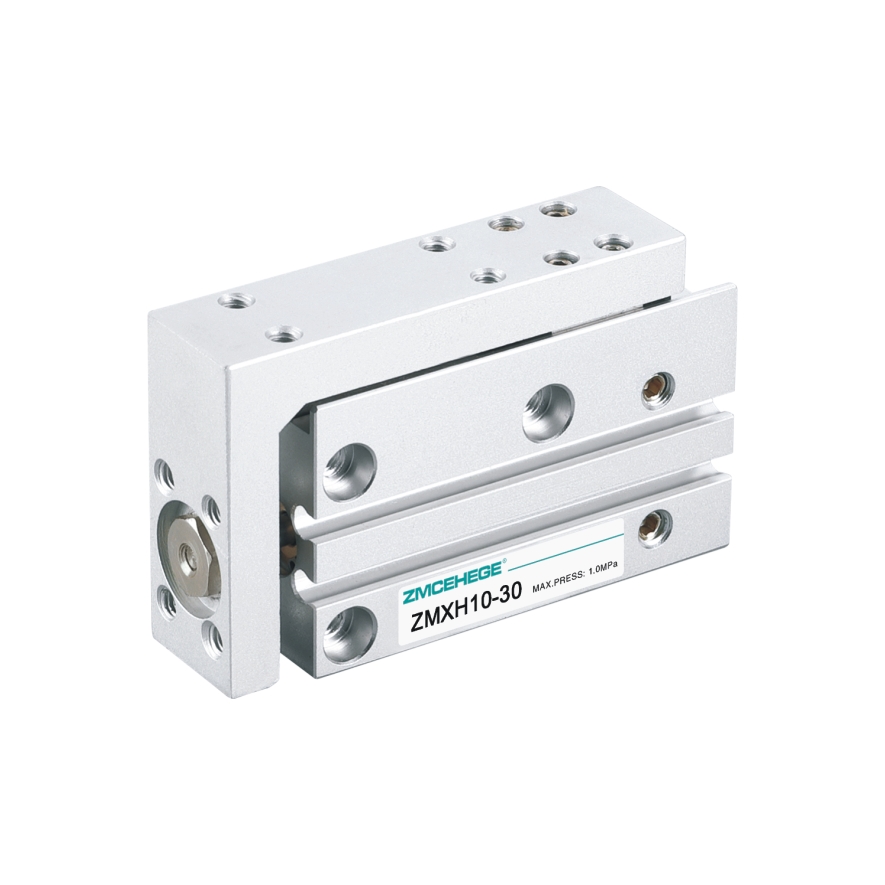

小型气动滑台(直线导轨)

Product Description

* Install linear guide bearings to improve the non-rotating precision of piston rod.

*装上线性导向轴承，提高活塞杆不回转精度。

* Standard type built-in magnetic ring, capable of installing stroke sensing magnetic switches.

*标准型内置磁环，可安装行程感应磁性开关。

*The air source can be connected from three sides.

*可从三面连接气源。

* Magnetic switches can be installed on both sides.

*可两面安装磁性开关。

*Standard type rubber buffering at both ends.

*标准型两端橡胶缓冲。

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore(mm) 缸径(mm)	6	10	16	20
Guide bearing width 导向轴承宽度	5	7	9	12
Using fluid 使用流体	Air 空气
Action mode 动作方式	Double action 双作用
Minimum operating pressure 最低使用压力	0.15MPa	0.06MPa		0.05MPa
Maximum operating pressure 最高使用压力	0.7MPa
Environment and fluid temperature 环境及流体温度	Non magnetic switch: -10~+70℃, (but not frozen) 不带磁性开关：-10~+70℃(但未冻结) Magnetic switch -10°C~60°C (but not frozen) 带磁性开关：-10~+60℃(但未冻结)
Piston speed 活塞速度	50~500 mm/s
Allowable kinetic energy J 允许动能J	0.0125	0.025	0.05	0.1
Oil supply 给油	No need 不需要
Buffer 缓冲	Rubber buffering at both ends 两端带橡胶缓冲
Stroke length tolerance (mm) 行程长度公差(mm)	+1.0 0
Magnetic switch selection 磁性开关选择	Tongue spring type: D-A9□, solid-state electronic type: D-M9□ 舌簧型：D-A9□，固态电子型：D-M9□
Connecting pipe bore 接管口径	M5×0.8
